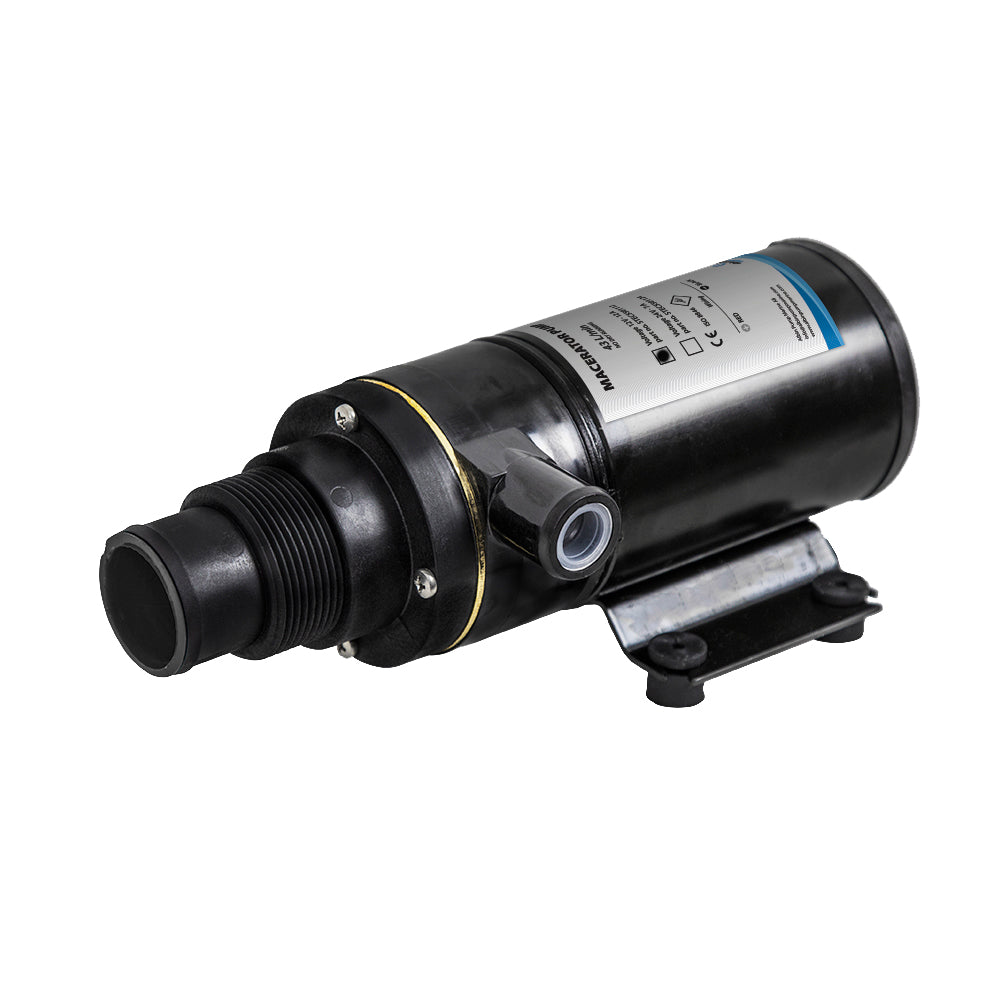

Albin Group Wastewater Macerator Pump - 12V, 11.5 GPM [03-01-005]

The Albin Group 03-01-005 is a 12V wastewater macerator pump for black-water discharge. A rotary cutter and impeller process waste, with a listed flow rate of 43 L/min (11.5 GPM) at 4 meters of total head.

Features

• Self-priming up to 3 meters of vertical lift.
• Brass and stainless steel internal parts.
• Thermopolymer pump body.

Connections and replacement compatibility

• Inlet: 38 mm (1-1/2 inches).
• Outlet: 25 mm (1 inch).
• Listed as interchangeable with Jabsco 18590-2092 and Johnson Pump 10-24453-04.

Confirm mounting, plumbing and electrical requirements against your existing installation before ordering.

Specifications

• Voltage: 12V.
• Listed flow: 43 L/min (11.5 GPM) at 4 meters total head.
• Specified fuse: 12A.
• Color: Black.
• Dimensions: 240 mm long × 90 mm high × 130 mm wide; listed imperial dimensions: 9.4 × 3.5 × 5 inches.
• Listed product weight: 1.98 kg / 4 lb. These values do not agree exactly; confirm product weight if required.

Listed standards

CE marked 94/25/ECC; ISO 8846 Small Craft; electromagnetic compatibility 89/336/EEC; EN51014 1993/radio disturbance, as supplied in the product information.

Package details

• Box dimensions: 4 inches high × 5 inches wide × 11 inches long.
• Packaged weight: 4.65 lb.
• UPC: 7340176600776.
