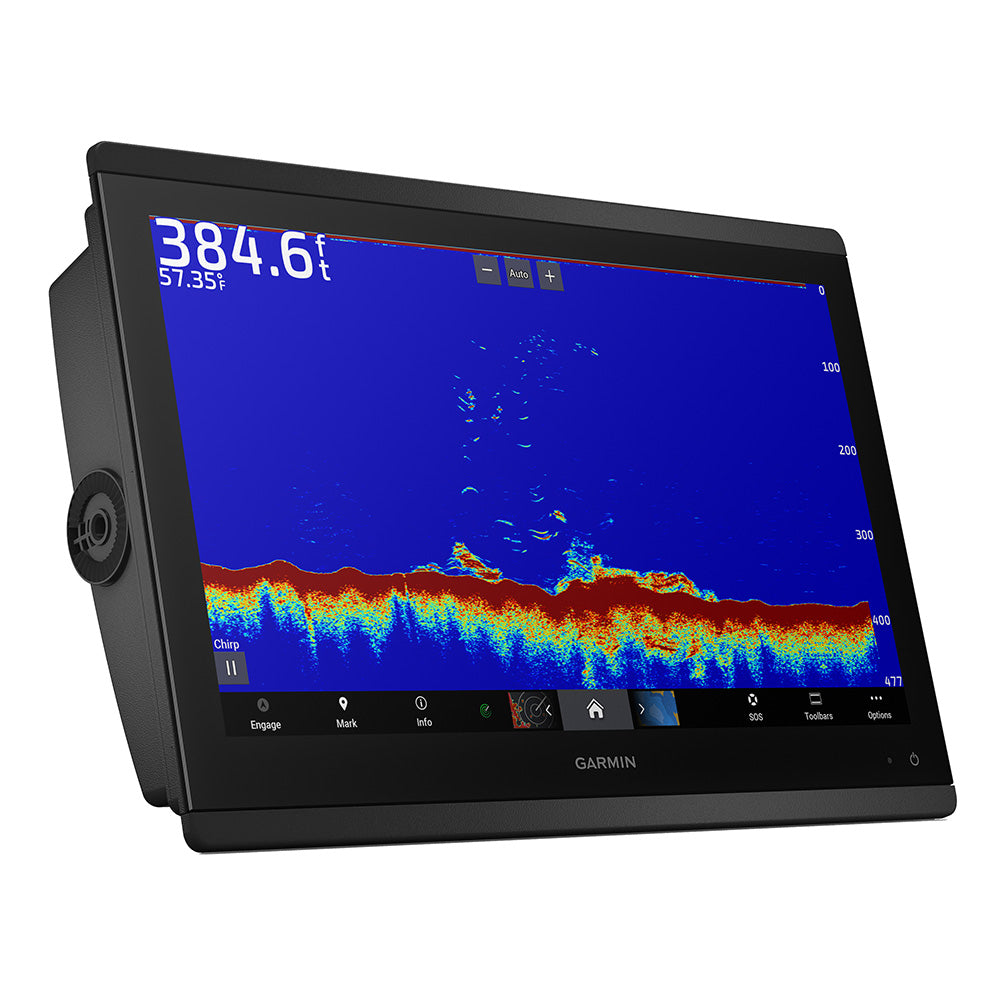

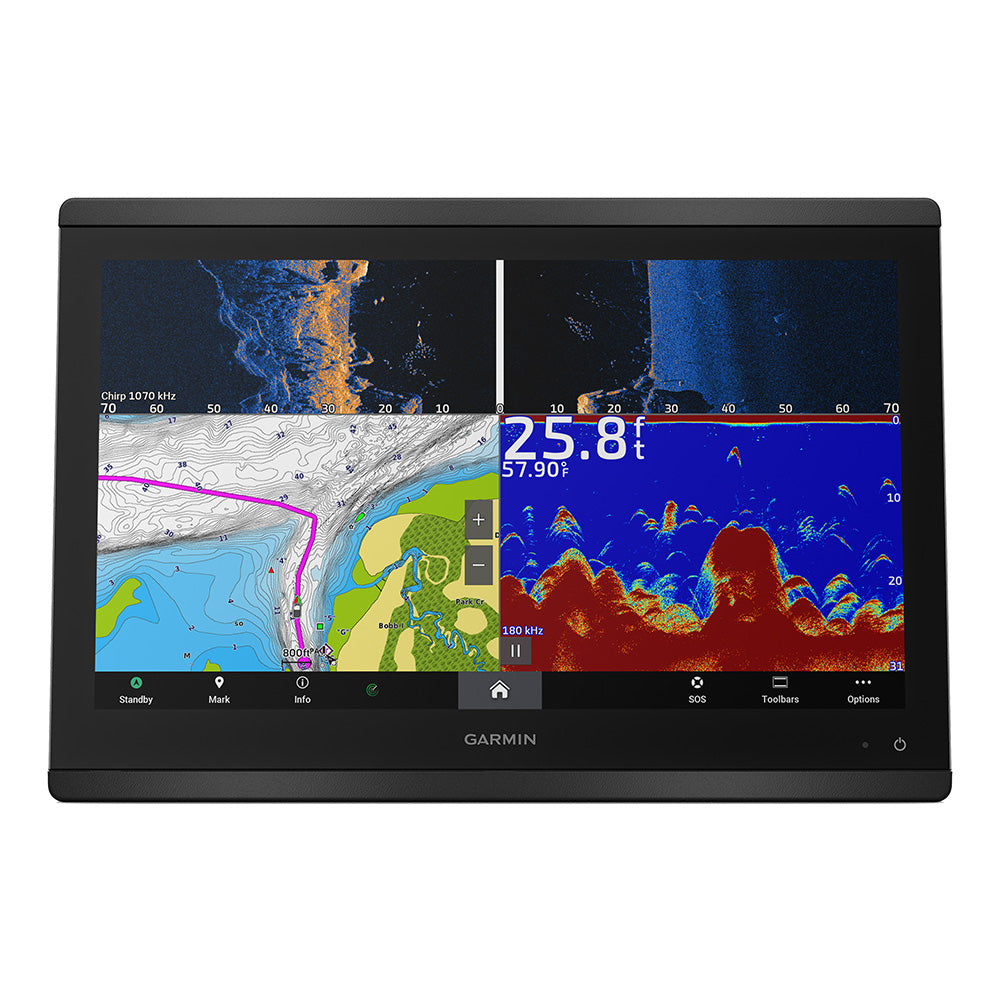

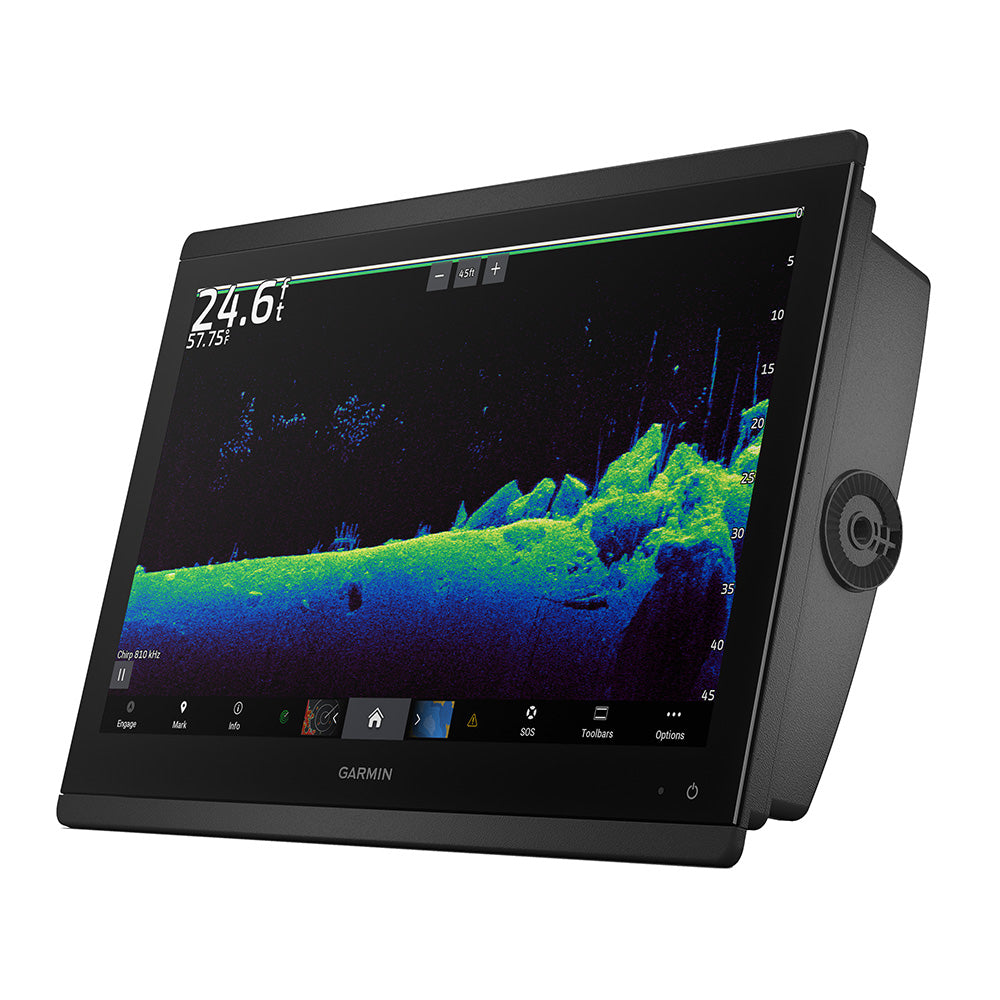

Garmin GPSMAP 8616xsv GPS/Fishfinder Combo with Garmin Navionics+ (010-02093-51)

16" Full HD IPS Touchscreen. Built-in Navionics+. CHIRP/ClearVü/SideVü/Live Sonar Ready. Sailassist™ & SmartMode™.

The Garmin GPSMAP 8616xsv is a 16" MFD chartplotter/sonar combo designed for serious anglers, cruisers, sailors, and sail racers who demand flagship-level performance. A full HD in-plane switching (IPS) touchscreen delivers wider viewing angles, superior clarity, and sunlight readability — even with polarized sunglasses. Built-in Garmin Navionics+™ provides coastal and inland mapping with Auto Guidance+™ technology and a 1-year subscription for daily chart updates. Transducer sold separately.

Display & Mounting

• 16" full HD IPS touchscreen — wide viewing angles, sunlight readable, polarized sunglasses compatible
• Flat mount edge-to-edge or flush mount for a glass helm look
• SmartMode™ station controls for one-touch access to sonar, radar, cameras, and media

Sonar

• Built-in 1-kW dual-channel CHIRP traditional sonar for superior target separation
• ClearVü and SideVü scanning sonar — see up to 1,000 ft. below and around your boat at 260 kHz
• Live sonar compatible (Garmin live sonar transducer sold separately)
• 8-pin and 12-pin transducer ports

Mapping & Navigation

• Built-in Garmin Navionics+™ inland and coastal mapping with Auto Guidance+™
• 1-year subscription for downloadable daily chart updates
• Optional upgrade to Garmin Navionics Vision+™ (high-res relief shading, satellite imagery, sonar imagery)
• Garmin Quickdraw™ Community data via ActiveCaptain® app

Sailing Features (Garmin Sailassist™)

• Laylines, race start line guidance, enhanced wind rose
• Heading and course-over-ground lines, true wind data fields
• Tide/current/time slider, wind angle, set and drift, wind speed
• Sailing polars — view target speed vs. wind angle/speed to optimize sail trim

Connectivity & Networking

• Garmin Marine Network (2 ports) — share maps, user data, radar, IP cameras
• NMEA 2000® and NMEA 0183 — connect autopilots, VHF, AIS, digital switching, FUSION-Link™ audio, weather, and more
• Integrated Bluetooth® and ANT® — compatible with quatix® marine watches, gWind™ Wireless 2, GNX™ Wind instruments
• Built-in Wi-Fi® — pairs with ActiveCaptain® app for OneChart™, smart notifications, software updates, and Helm
• OneHelm™ — integrates third-party devices including EmpirBus™ digital switching on one screen
• Power-Pole® compatible — smart anchor auto-deployment, auto stow, anchor drag detection (requires C-Monster GATEWAY)
• inReach® satellite messaging support (active satellite subscription required)
• GRID™ 20 remote input device compatible (optional)

What’s in the Box

• GPSMAP 8616xsv unit
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation

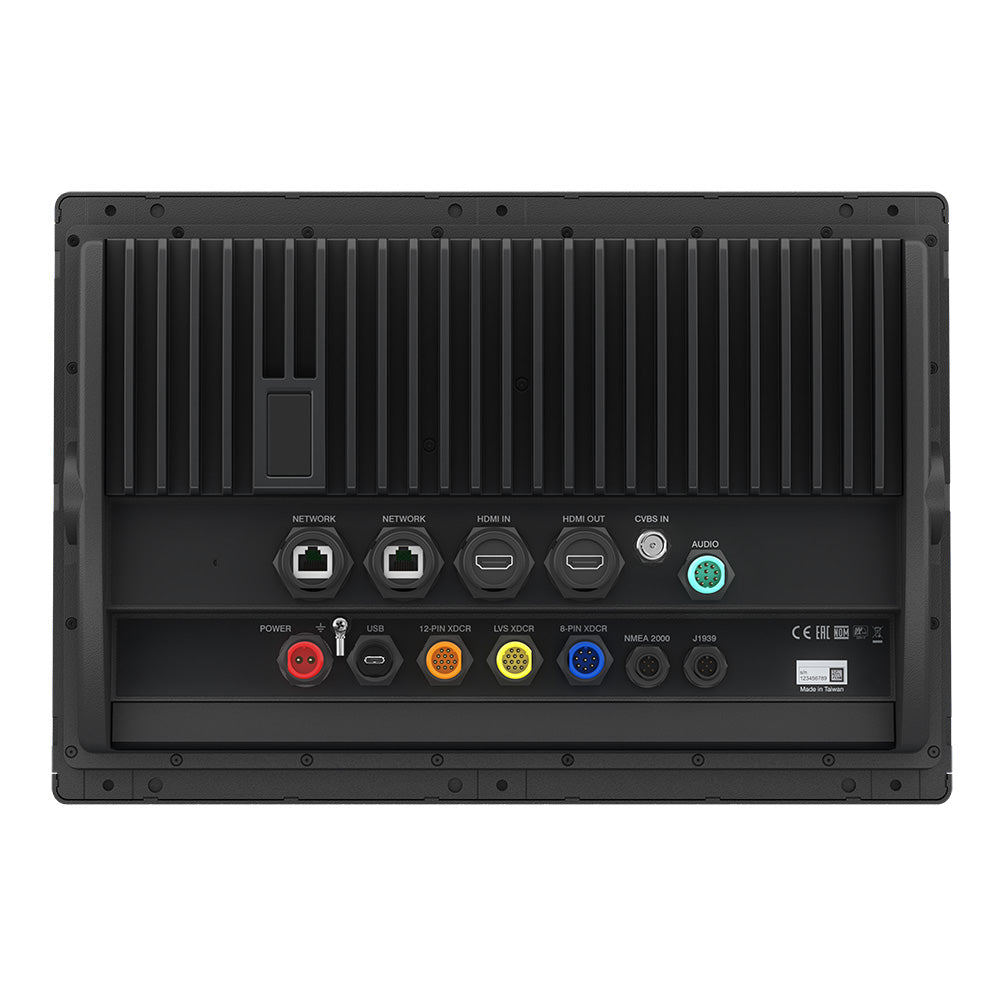

Connections

• NMEA 2000® Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output (TX) Ports: 1
• Video Input: 1 × BNC composite | 1 × HDMI (HDCP compliant)
• Video Output: 1 × HDMI
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 8-Pin Transducer Port: Yes
• 12-Pin Transducer Port: Yes
• USB: Yes
• Bluetooth®: Yes
• ANT+: Yes
• Wi-Fi®: Yes

Specifications

• Screen Size: 16"
• Display Type: Full HD IPS touchscreen
• Cartography: Garmin Navionics+™ (built-in)
• Transducer Included: No (sold separately)
• Box Dimensions: 8"H × 14"W × 19"L | 16.92 lbs
• UPC: 753759285449

¹ Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.
² ActiveCaptain app requires a compatible smartphone paired to a compatible GPSMAP chartplotter.
³ Power-Pole integration requires purchase of a C-Monster GATEWAY through Power-Pole.
⁴ inReach requires an active satellite subscription. Some jurisdictions regulate or prohibit satellite communication devices; it is the responsibility of the user to comply with applicable laws.

WARNING: This product can expose you to chemicals including nickel (metallic), known to the State of California to cause cancer. For more information visit P65Warnings.ca.gov.

Download Owner’s Manual (PDF)
