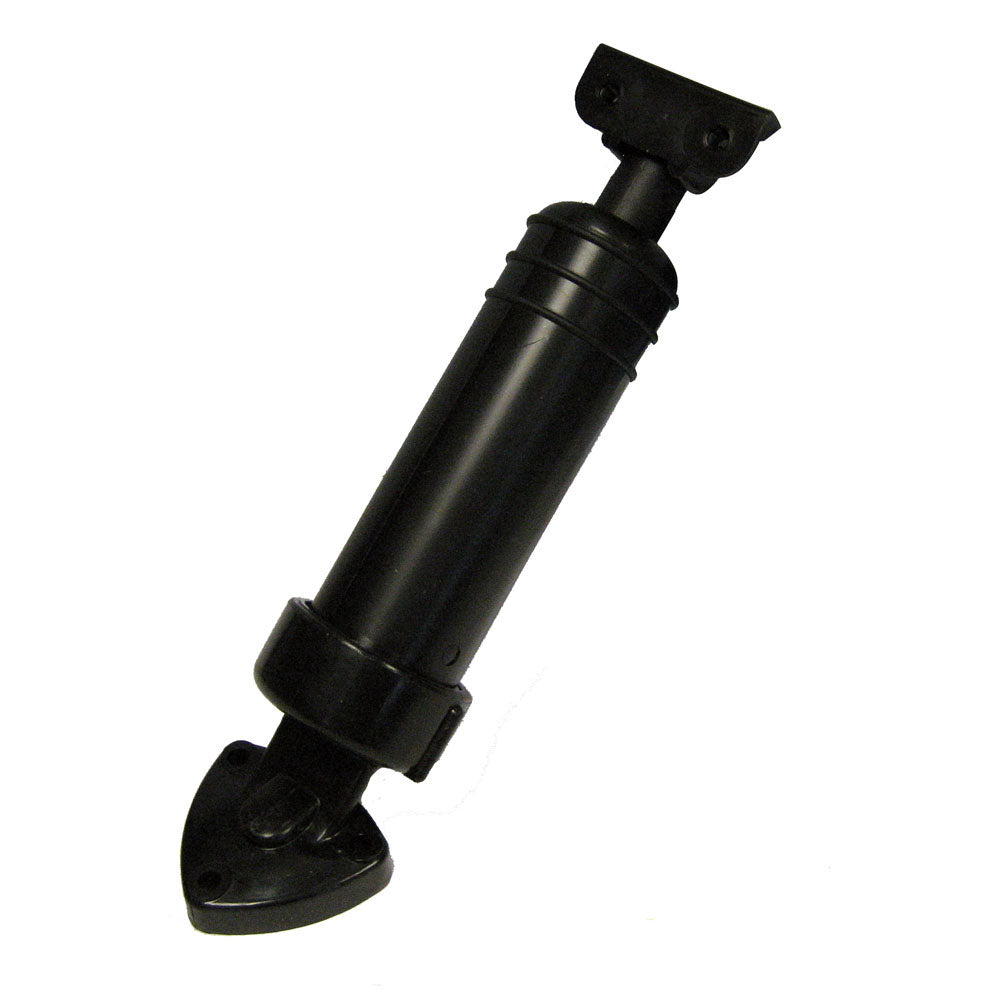

Bennett Marine A1101A Hydraulic Trim Tab Actuator, 13.75" Closed Length

The Bennett Marine A1101A actuator assembly is a complete hydraulic cylinder that pushes your trim tab into position. With a 13.75-inch closed length, it is designed for use with Bennett standard trim tabs only.

Key features

• Hydraulic actuation: Piston-like action moves the trim tab into position.
• Plastic resin body: Strong and flexible construction designed for the demands of offshore use.
• Nylon upper hinge: Allows 5° of flex during use.
• Concealed fluid passage: Hydraulic fluid flows through the upper hinge, eliminating exposed external hoses at the hinge that could be damaged.

Specifications and compatibility

• Brand: Bennett Marine
• Part number: A1101A
• Assembly type: Complete hydraulic cylinder
• Closed length: 13.75 inches
• Body material: Plastic resin
• Upper hinge material: Nylon
• Compatibility: Bennett standard trim tabs only
• UPC: 666285314500

Important return notice

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manual and video

• Owner's manual (PDF)
• Watch the product video
