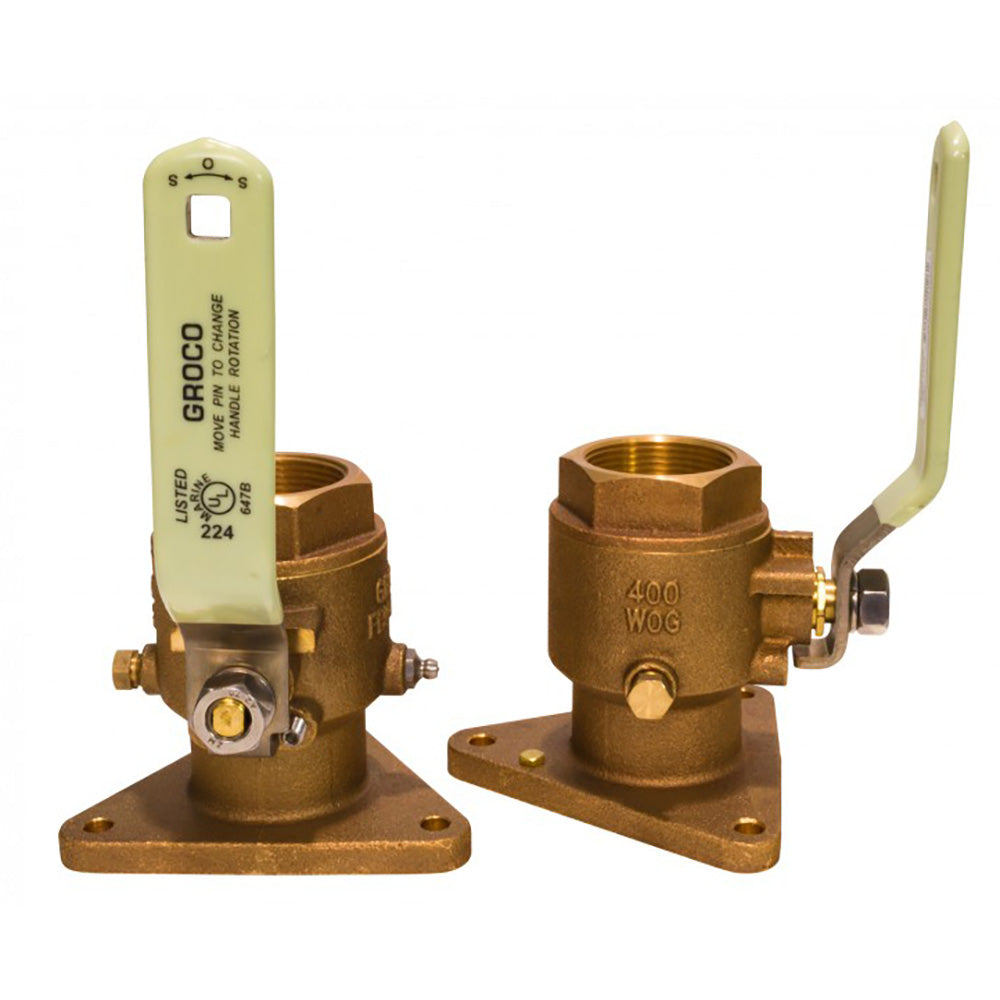

GROCO FBV-3000 Full-Flow Flanged Ball Valve, 3-Inch

The GROCO FBV-3000 is a 3-inch full-flow flanged ball valve for controlling fluid flow in a pipeline. Its field-reversible handle lets you choose the closed-position orientation that suits your installation.

Construction and features

• C83600 bronze body with stainless steel handle and hardware.
• Chrome-plated solid brass ball with PTFE seats and seals.
• Full-flow design.

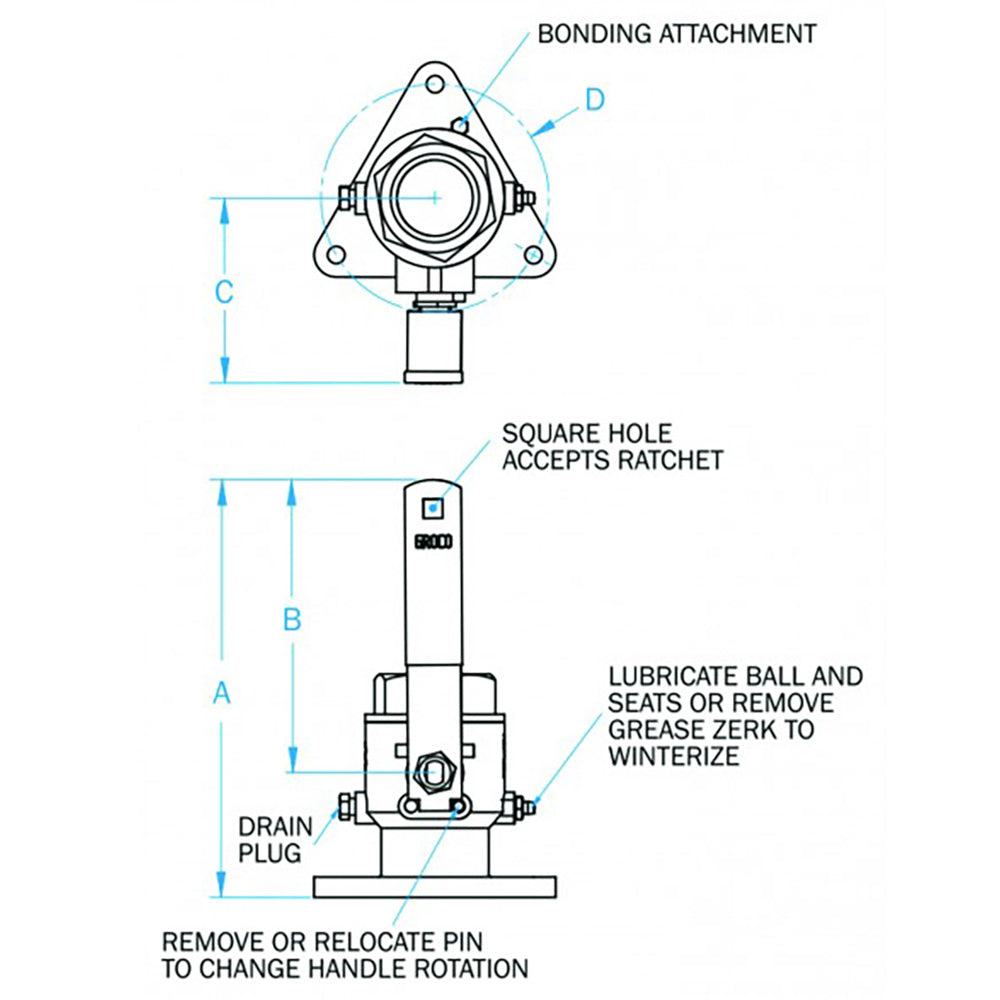

• Patented field-reversible handle for clockwise or counterclockwise closing orientation.
• Square handle opening accepts a standard ratchet for access to hard-to-reach valves and added leverage.
• Triangular mounting base with a bolt pattern designed to match most popular brands for retrofits.
• Bonding attachment on the base.
• One grease zerk fitting and one drain plug; the zerk can also be used for draining.

Lubrication precaution: Use the grease zerk only with the valve in the open position.

Connections

• Bottom thread: 3-inch NPS.
• Top thread: 3-inch NPT.

Shipping details

Box: 8 inches H × 8 inches W × 15 inches L. Listed boxed weight: 19.4 lb. These are shipping measurements, not installation dimensions.

UPC: 742985144774.
