Humminbird APEX 13 CHO VX MSI+ Chartplotter/Fishfinder - No Transducer

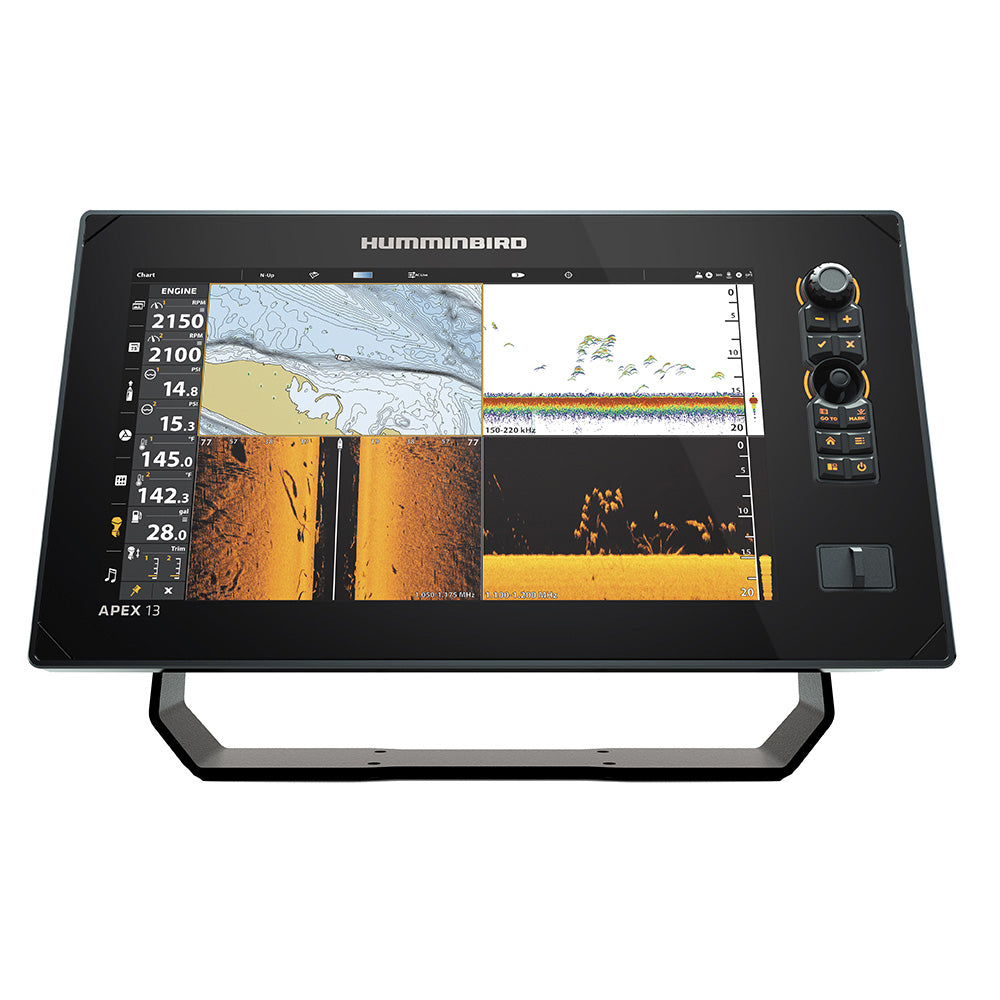

Humminbird APEX 13 CHO VX MSI+ Chartplotter/Fishfinder

Build your fishing electronics system around the Humminbird APEX 13 CHO VX MSI+, featuring a 13.3-inch Full HD display, internal GPS, and advanced sonar and networking capabilities. Cross Touch controls let you use either the touchscreen or keypad, while customizable views keep charts, sonar, and boat data within easy reach.

Control Head Only: Transducer Not Included

This CHO model lets you choose a compatible transducer or add a display to an existing Humminbird network. Options include the SSTH 14 HW MSI+ stainless-steel thru-hull transducer, Built-in MEGA Imaging on compatible Minn Kota trolling motors, accessory MEGA 360 Imaging, or shared sonar data from a Humminbird Ethernet network. Sonar use requires the appropriate compatible transducer or networked sonar source.

Display and Performance

• 13.3-inch Full HD display with 1920H x 1080V resolution
• Cross Touch interface with touchscreen and keypad control
• Customizable settings, view combinations, and sidebar menu
• Dual-core processor for responsive operation

Sonar and Live Mapping

• Supports MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar with appropriate equipment
• MEGA Imaging+ provides views up to 250 feet below and out to either side of the boat
• Dual Spectrum CHIRP provides detailed 2D sonar with target separation and fish clarity
• Dual sonar ports support Humminbird sonar options, including a dedicated channel for accessory 2D CHIRP transducers up to 2kW
• AutoChart Live creates real-time maps of depth contours, bottom hardness, and vegetation with access to patented LakeMaster features
• Eight hours of built-in recording; compatible AutoChart Zero Line SD cards expand AutoChart Live mapping capacity

GPS and Charts

Internal GPS and the Humminbird Basemap show underwater terrain, buoys, day markers, hazards, marinas, contours, and depth markers. Included charts cover more than 10,000 lakes and coastal areas of the continental U.S. Optional LakeMaster, CoastMaster, and compatible Navionics charts provide additional mapping options.

Networking and Connected Control

• One-Boat Network compatibility connects supported Humminbird, Minn Kota, and Cannon products for boat control and fishing functions

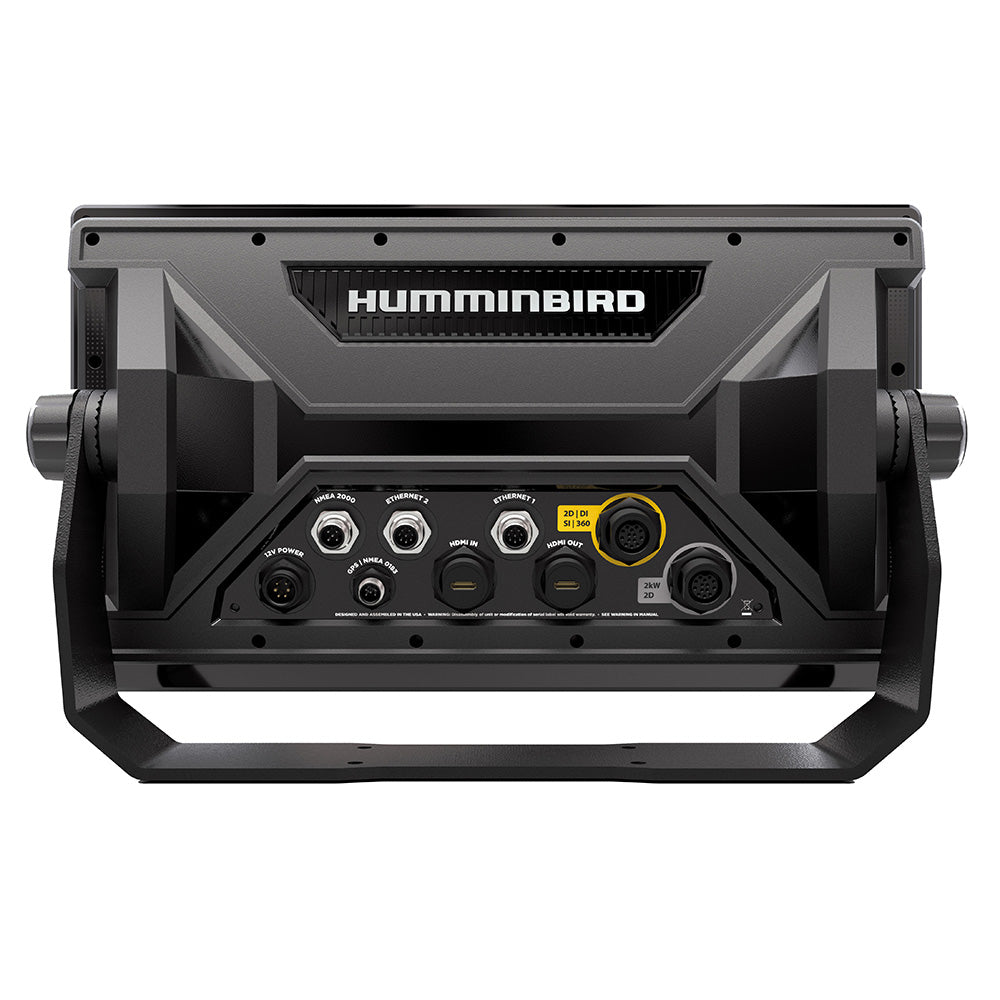

• Dual Ethernet ports connect multiple control heads and accessories, such as Minn Kota i-Pilot Link and Humminbird CHIRP Radar, without an external network hub
• Independent HDMI input and output support accessory cameras, video sources, and additional displays
• Bluetooth control of compatible Talon and Raptor shallow-water anchors and Cannon Optimum downriggers
• Wireless software updates through the Humminbird FishSmart App and smartphone notification display
• Wi-Fi connectivity
• Built-in NMEA 2000 connectivity to an accessory network for boat performance, weather, and water-condition information
• Compatible with CZone Contact 6, Contact 6 Plus, and digital switching devices

Specifications:

• Model: 411470-1VXCHO
• Display: 13.3-inch touchscreen; APEX 13 model
• Resolution: 1920 x 1080 Full HD
• Cartography compatibility: Humminbird/Navionics
• Transducer included: No
• Box dimensions: 12 inches H x 15 inches W x 22 inches L
• Box weight: 17.4 lb
• UPC: 082324061646
• Warranty: Two-year limited warranty

What's Included:

• APEX 13 CHO VX MSI+ control head
• Power cable
• Gimbal mounting bracket

Transducer sold separately.
