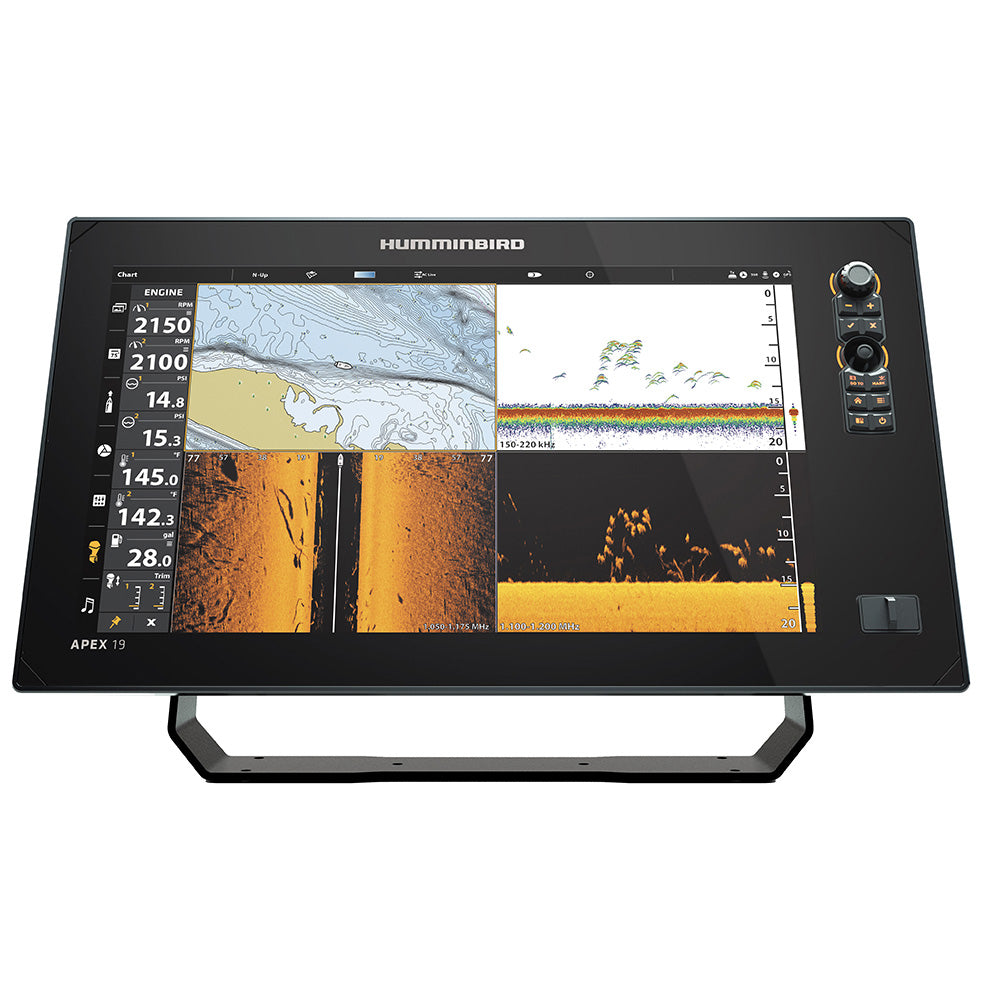

Humminbird APEX 19 VX MSI+ Fishfinder with Transducer [411240-1VX]

The Humminbird APEX 19 VX MSI+ chartplotter/fishfinder combines an 18.5-inch Full HD touchscreen with keypad controls, internal GPS and MEGA Imaging+ sonar. View charts and sonar in customizable combinations to study structure, locate fish and plan your next pass.

Transducer included: This package includes the XM-14-HW-MSI-T transom-mount transducer, unlike the control-head-only CHO version.

Display and controls

• 18.5-inch display in the APEX 19 model class, with 1920 × 1080 Full HD resolution.
• Cross Touch interface supports touchscreen and keypad operation.
• Customizable settings, view combinations and sidebar menu.
• Dual-core processor for responsive operation.

Sonar and expansion

• MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar.
• Listed MEGA Imaging+ coverage reaches up to 250 feet below and up to 250 feet to either side of the boat.
• Dual Spectrum CHIRP provides 2D sonar with target separation and fish detail.
• Dual sonar ports include a dedicated connection for compatible accessory 2D CHIRP transducers up to 2 kW.

The 2 kW capability requires an appropriate accessory transducer, sold separately. Sonar performance depends on installation, conditions and connected equipment.

GPS, charts and mapping

• Internal GPS and Humminbird Basemap, with charts for more than 10,000 lakes and coastal coverage for the continental United States.
• Basemap details include buoys, day markers, hazards, marinas, contours and depth markers.
• Supports optional compatible LakeMaster, CoastMaster and Navionics charts.
• AutoChart Live creates real-time maps of depth contours, bottom hardness and vegetation.
• Eight hours of built-in AutoChart Live recording; compatible AutoChart Zero Line SD cards expand recording capacity.

Networking and connected equipment

• One-Boat Network compatibility with supported Minn Kota and Cannon products.

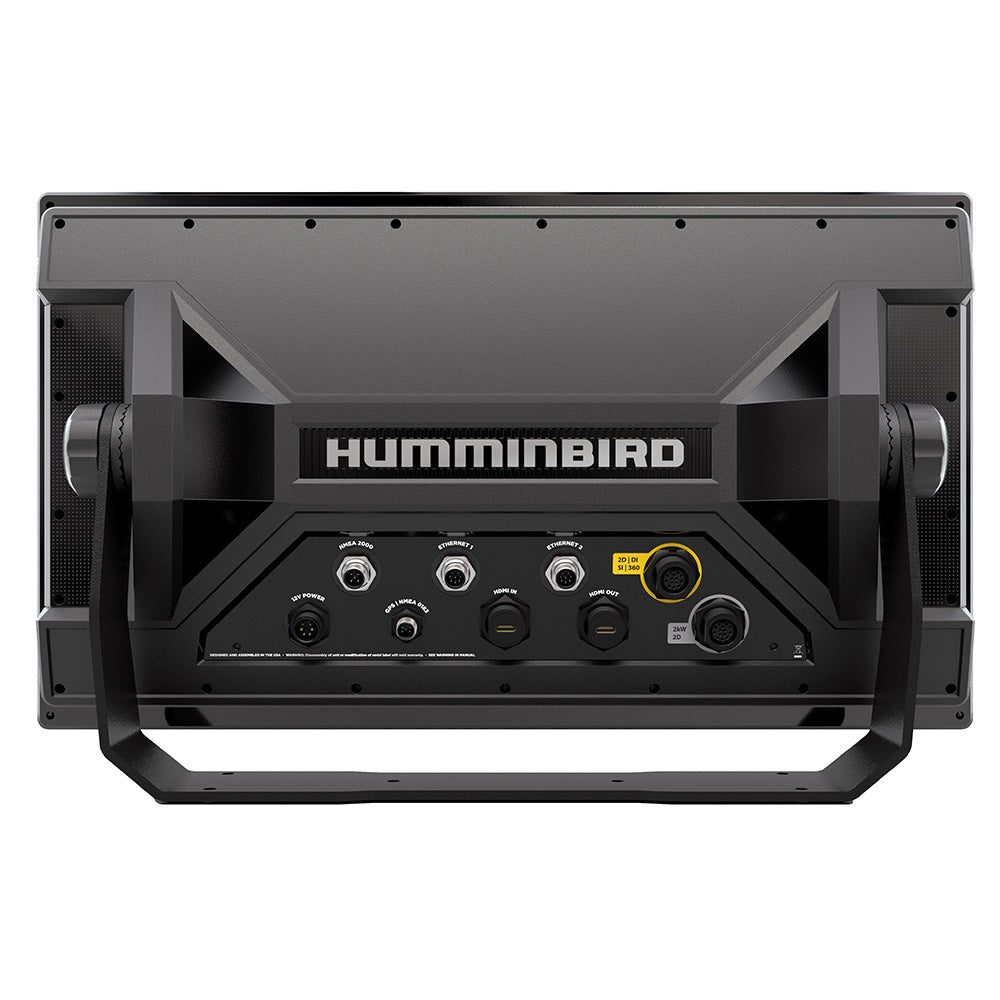

• Dual Ethernet ports connect multiple control heads and compatible accessories, including Minn Kota i-Pilot Link and Humminbird CHIRP Radar. Suitable setups can connect without an external network hub.
• Independent HDMI input and output support accessory cameras, video sources and external displays.
• Bluetooth communication with compatible Talon and Raptor shallow-water anchors and Cannon Optimum downriggers.
• Supports wireless software updates through the Humminbird FishSmart app and smartphone notification display.
• Wi-Fi connectivity.
• Built-in NMEA 2000 networking supports compatible accessory networks for boat performance, weather and water-condition data.
• Compatible with CZone Contact 6, Contact 6 Plus and digital switching devices.

Connected functions require compatible equipment, networks, software and configuration. Networking accessories, cameras, external displays, trolling motors, anchors, downriggers, radar and premium charts are not included.

What's included

• APEX 19 VX MSI+ control head
• XM-14-HW-MSI-T transom-mount transducer
• Mounting hardware
• Power cable
• Gimbal mounting bracket

Product and packaging details

• Part number: 411240-1VX
• Cartography compatibility: Humminbird/Navionics
• Box dimensions: 12 inches H × 17 inches W × 27 inches L
• Packaged weight: 28.4 lb
• UPC: 082324061653
• 2-year limited warranty
