Humminbird ICE HELIX 5 CHIRP G3 Ice Fishfinder, Sonar Only – 411720-1

Watch fish and your jig beneath the ice

The Humminbird ICE HELIX 5 CHIRP G3 brings Dual Spectrum CHIRP sonar to a portable ice-fishing setup. View fish, bait, and structure on a bright 5-inch color display, with target separation down to 3/4 inch and your choice of flasher or traditional 2D sonar views.

Sonar-only model: This is not the GPS version. GPS chartplotting, trackplotting, and mapping-card compatibility are not supported.

Focus on the action below

• Dual Spectrum CHIRP: High-resolution returns for individual fish, bait, and structure.
• Interference rejection: Six settings help reduce clutter from competing sonar signals in both flasher and sonar modes.
• Adjustable zoom: 2× on the flasher screen or up to 16× in the 2D view, for fish near the bottom or suspended in the water column.
• Adjustable brightness: Read depth and sonar information in a fish house or on open ice.
• Jig Charge Mode: Charge glow-painted spoons and jigs before dropping them back down.

Portable for the ice, adaptable for your boat

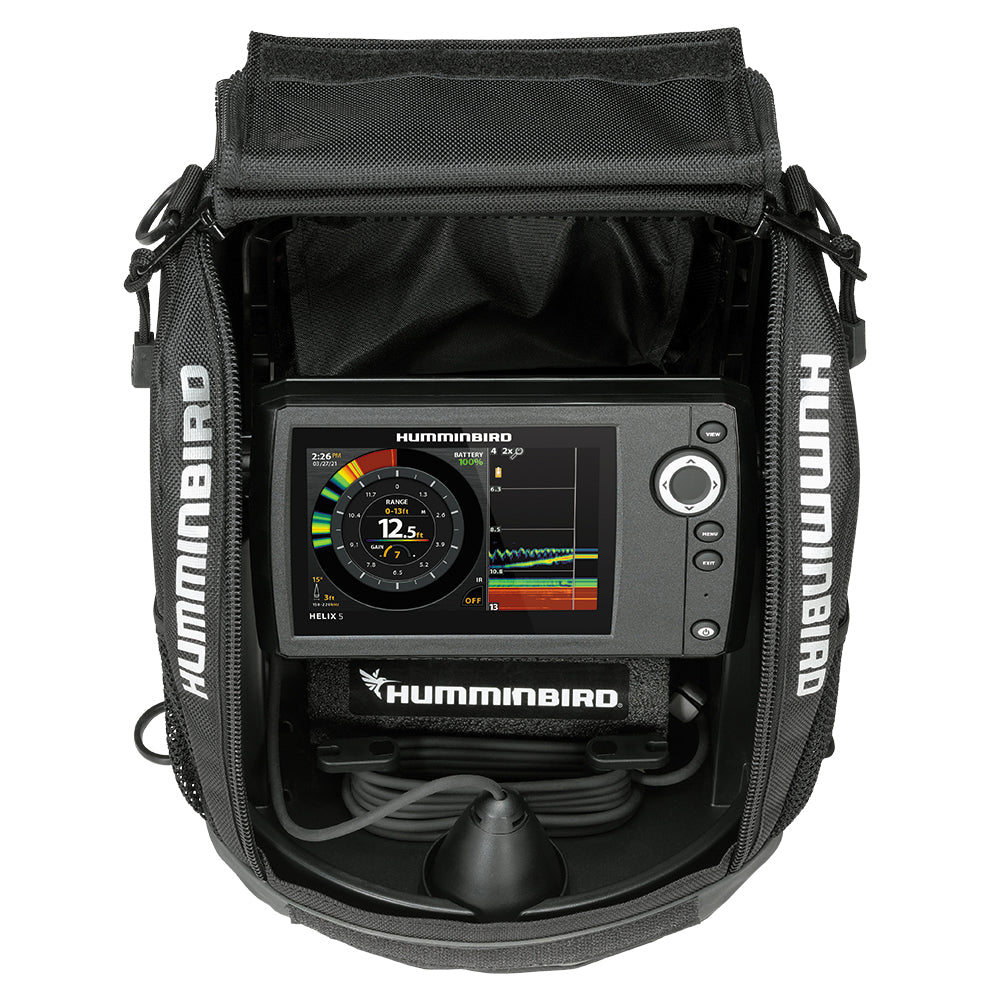

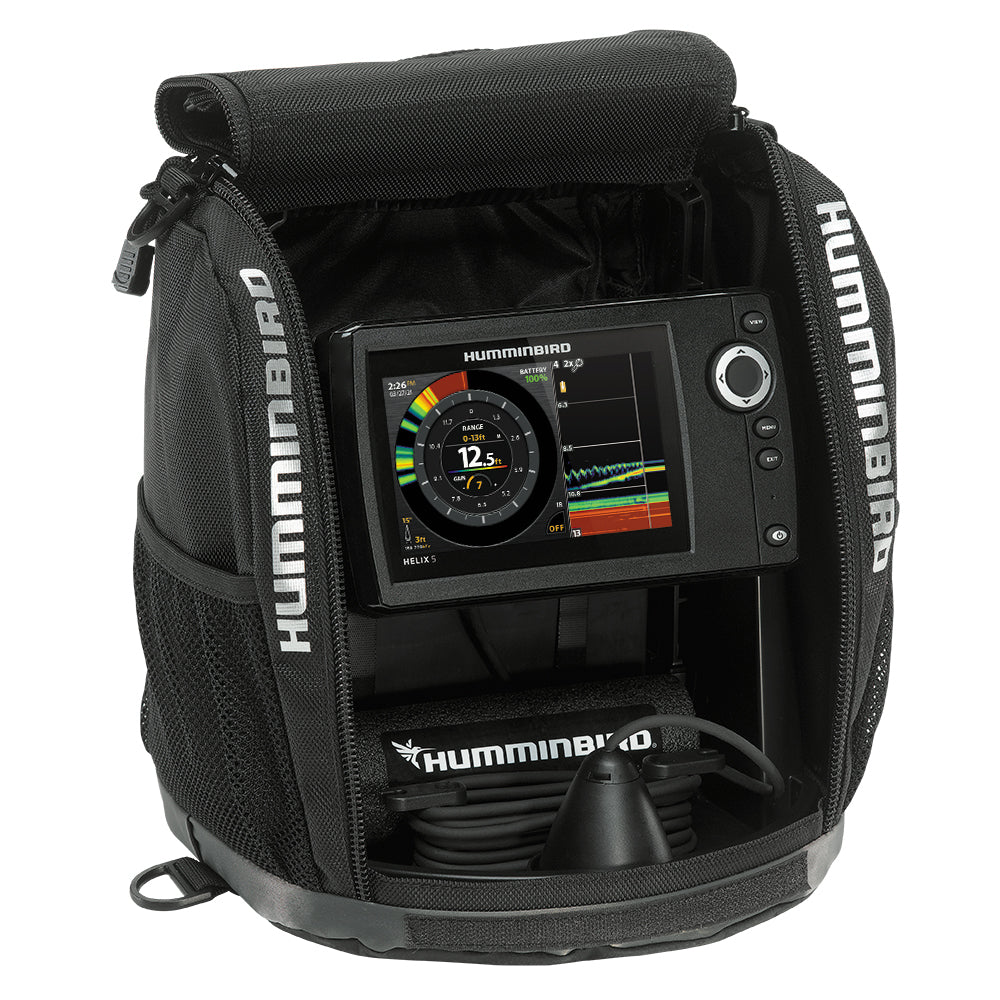

The shuttle and soft-sided carrying bag protect the unit during transport and include cable and transducer management. For open-water use, add a compatible HELIX 5 CHIRP G3 transducer, power cord, and gimbal mount to your boat. These boat-use accessories are separate from the included ice setup.

What's included

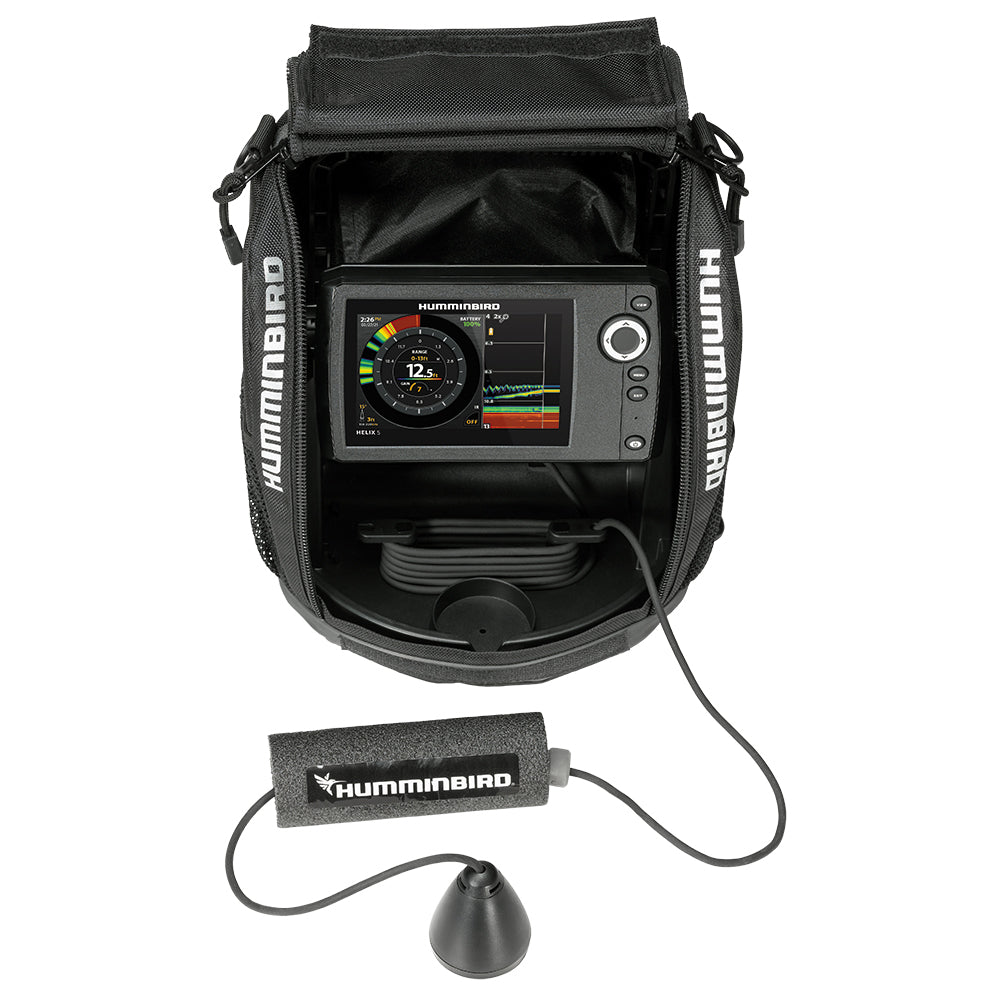

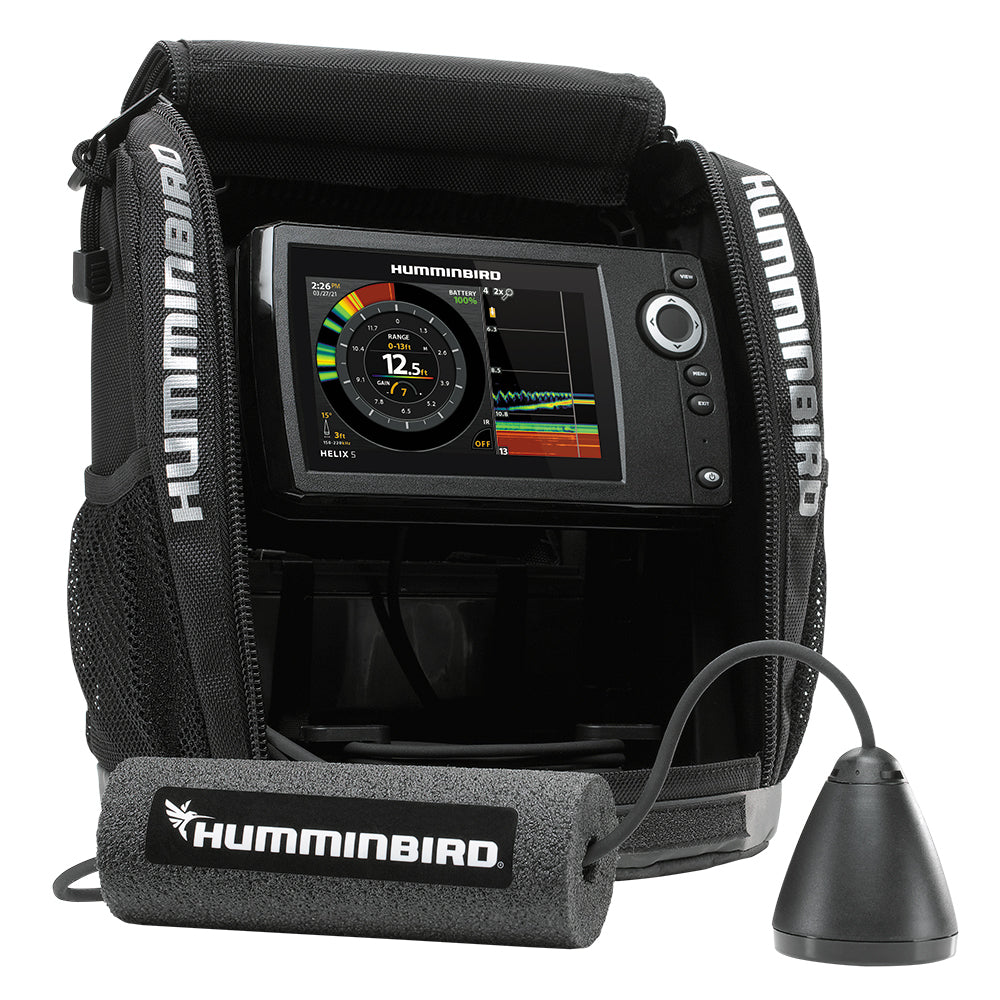

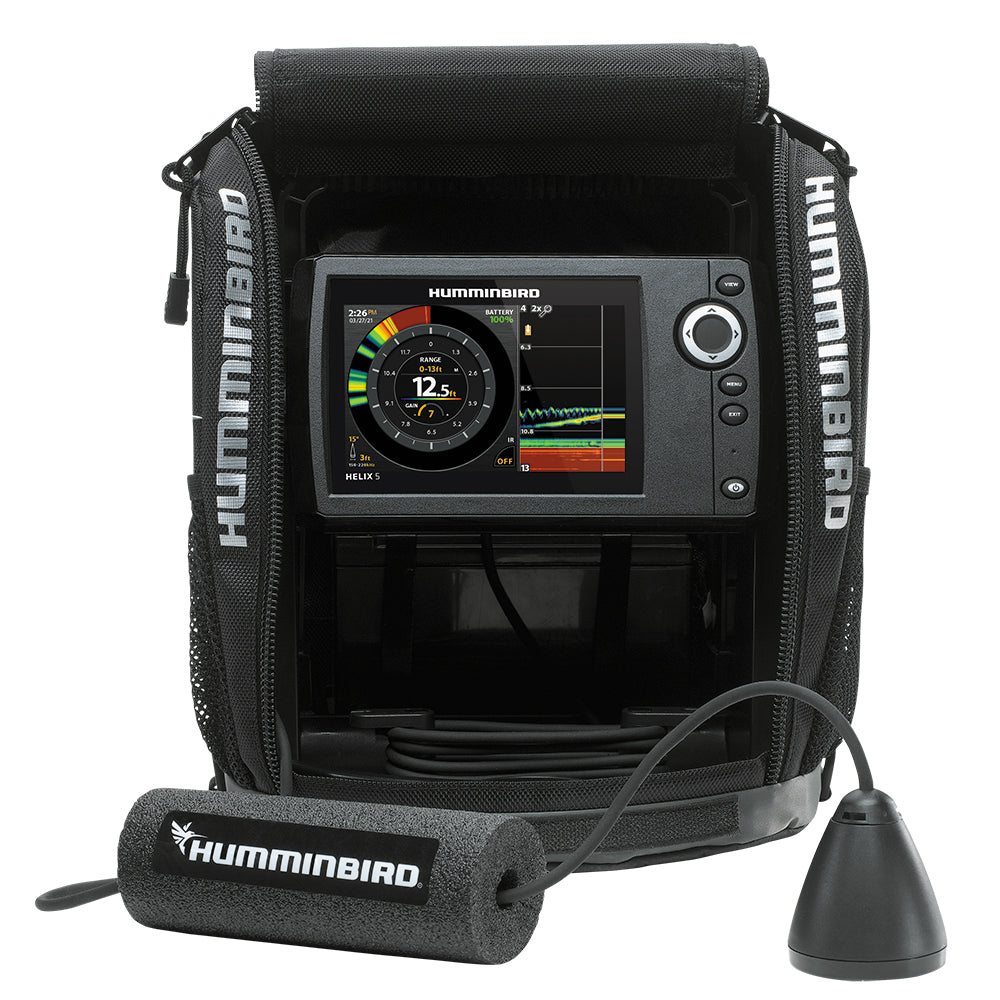

• ICE HELIX 5 CHIRP G3 fishfinder
• Dual Spectrum CHIRP ice transducer, XI 9 1521
• 9Ah battery and charger
• Ice shuttle
• Hardware and power cable

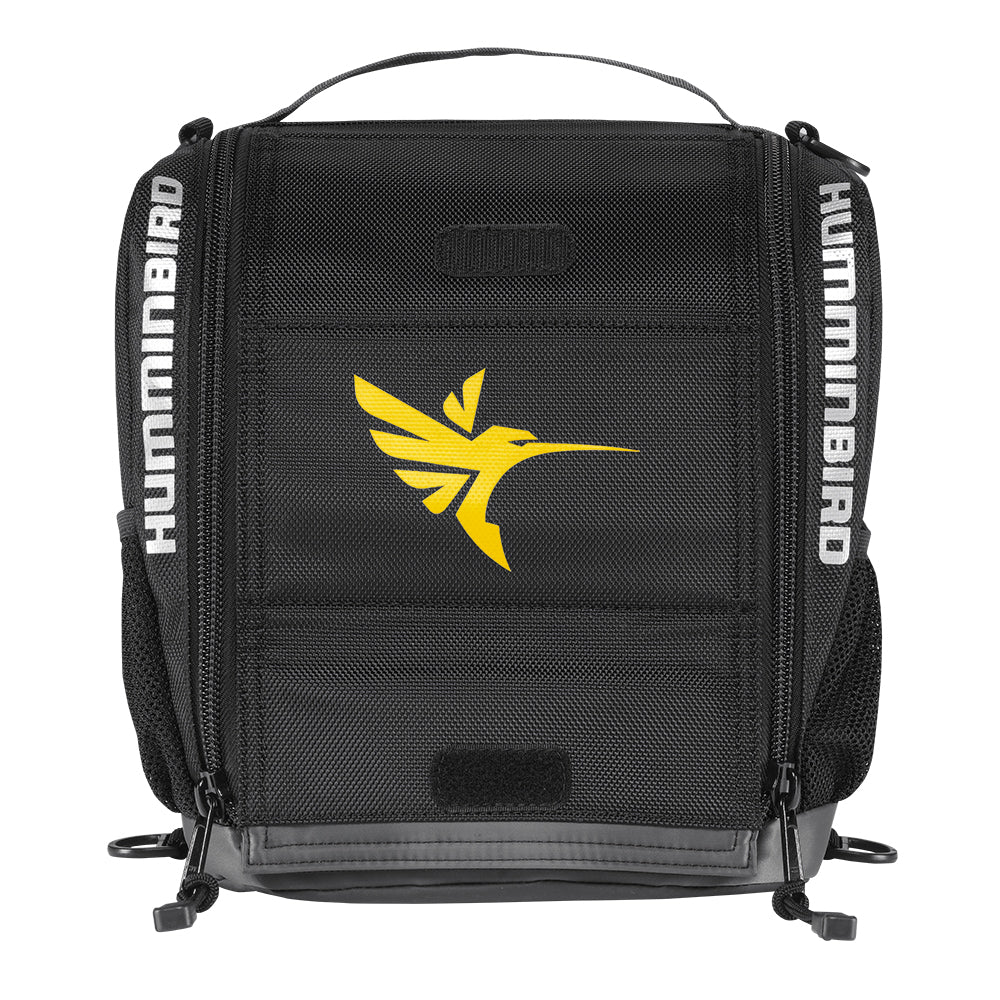

• Portable carrying bag

Technical specifications

• Display: 5-inch, 800 × 480 pixels, 256 colors.
• Interface: Keypad control.
• Standard sonar: Dual Spectrum CHIRP.
• Sonar coverage: 15° and 21° at -3 dB.
• Depth capability: 400 ft.
• Optional sonar: 50 kHz and 50/Low Airmar CHIRP.
• Supported CHIRP frequencies: 50/200 (28–75 / 130–250 kHz), 83/200 (75–155 / 130–250 kHz), Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz.
• Listed sonar frequencies: 50/80/200 kHz.
• Power: 615 mA draw; 10.8–20 VDC input; 500W RMS / 4,000W peak-to-peak output.
• Mounting: Portable unit and portable transducer.
• Controls: X-Press Menu System, custom digital readouts, and custom view selections.
• Memory card slot: None.
• Not supported: Screenshots, sonar recording, GPS chartplotting/trackplotting, heading-sensor GPS, software upgrades, view preset keys, speed, temperature sensing, temperature graph, HDMI, and MEGA Live.
• Mapping compatibility: No LakeMaster, CoastMaster, Navionics Gold/HotMaps, Platinum+, or Platinum support.
• Temperature alarm: Listed as supported in the supplied specifications, although temperature sensing is listed as unsupported. Verify this function before relying on it.

Product details

• Brand: Humminbird
• Part number: 411720-1
• Warranty: 1-year limited warranty
• UPC: 082324056710
