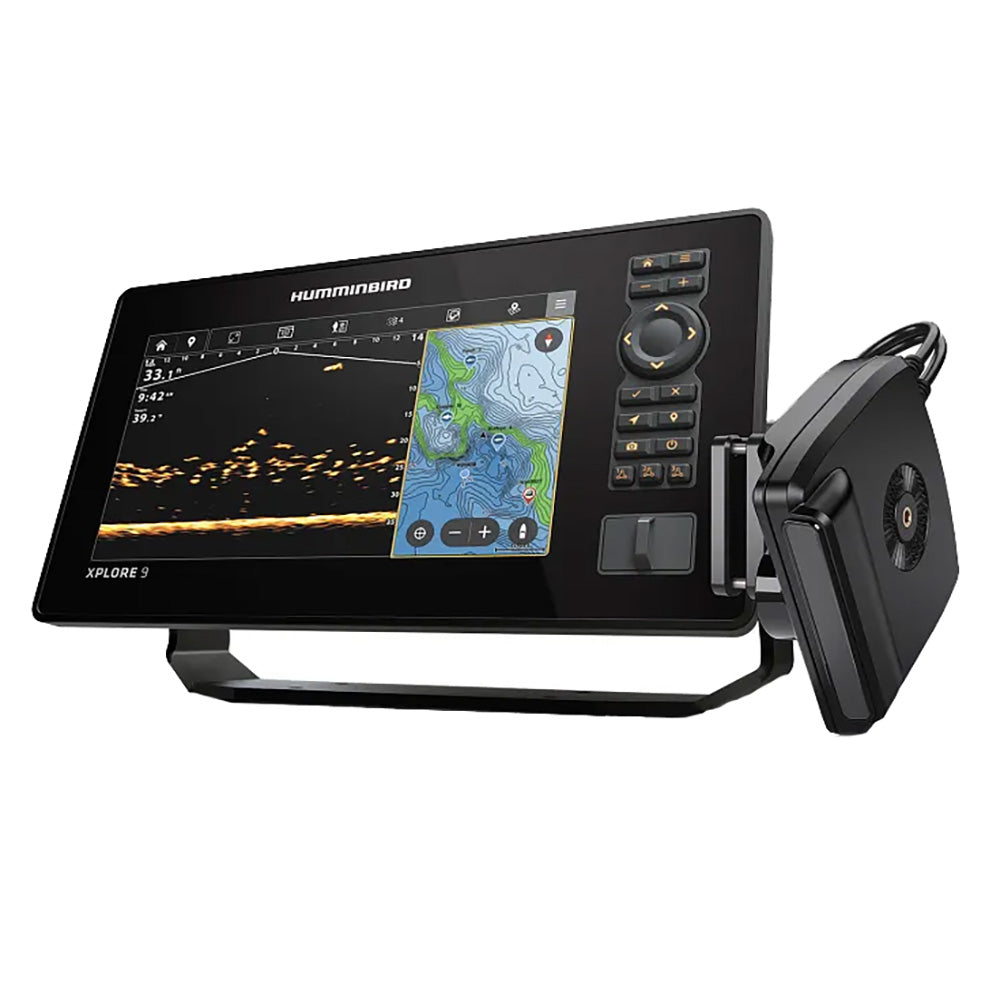

Humminbird ICE XPLORE 9" Fishfinder & MEGA Live 2 Bundle [412340-1]

The Humminbird ICE XPLORE 9-inch MEGA Live 2 Bundle combines touchscreen and keypad control, LakeMaster mapping and real-time sonar for ice fishing. Watch fish, structure and lure action in Forward or Down Mode, with real-time zoom and ice-specific cables and connectors.

A third-party ice shuttle and pole are required for setup. The included compact pole-mount is not a complete pole or shuttle.

Ice fishing and mapping

• Ice Mode streamlines operation for hardwater fishing; switch to Open Water Mode when moving the system to your boat.
• MEGA Live 2 offers Forward and Down views with real-time zoom.
• Live sonar coverage: 20° × 120°.
• Included LakeMaster mapping with SmartStrike features and Humminbird Basemap.
• Compatible with LakeMaster, CoastMaster, Navionics Gold/HotMaps, Platinum+ and Platinum charts.
• Dual microSD card slots.

Included components

• 9-inch XPLORE fishfinder
• 18-inch power cable with spade connectors and inline fuse
• Premium silicone cover
• Gimbal bracket
• XPLORE Map Card
• MEGA Live 2 transducer
• Compact pole-mount
• 5-foot Ethernet cable
• 4-foot power cable with spade connectors and inline fuse

Networking and expansion

• Listed compatibility: Minn Kota US2 sonar, i-Pilot Link, Advanced GPS Navigation, Talon shallow-water anchors and One-Boat Network.
• Supports 360 Imaging, MEGA Live and MEGA Live 2.
• Compatible with radar and a 5-port Ethernet switch.
• NMEA 2000 included; supports NMEA 2000 heading sensor GPS.
• AIS compatibility is optional.
• Autopilot compatibility: No.
• Heading sensor GPS compatibility outside NMEA 2000: No.
• HDMI compatibility: No.

Compatibility does not mean additional sensors, charts or network accessories are included.

Additional specifications

• Display: 9-inch color TFT, 24-bit color
• Interface: Touchscreen and keypad
• Listed sonar coverage: 20°, 42°, 60° and two 86° beams at -10 dB
• Optional sonar: 50/83/200 kHz; Airmar High, High Wide, Medium, Medium Wide and Low
• Target separation: 2.5 inches
• Upgradeable software, view preset keys and X-Press Menu System
• Custom digital readouts and view selections
• Speed display; built-in temperature, temperature alarm and temperature graph

Warranty and package details

• Part number: 412340-1
• ICE XPLORE warranty: 2-year limited warranty
• MEGA Live 2 warranty: 1 year
• Box dimensions: 11 inches H × 11 inches W × 16 inches L
• Listed package weight: 13 lb
• UPC: 082324061424

Resources

Quick Guide (PDF)
Owner's Manual (PDF)
