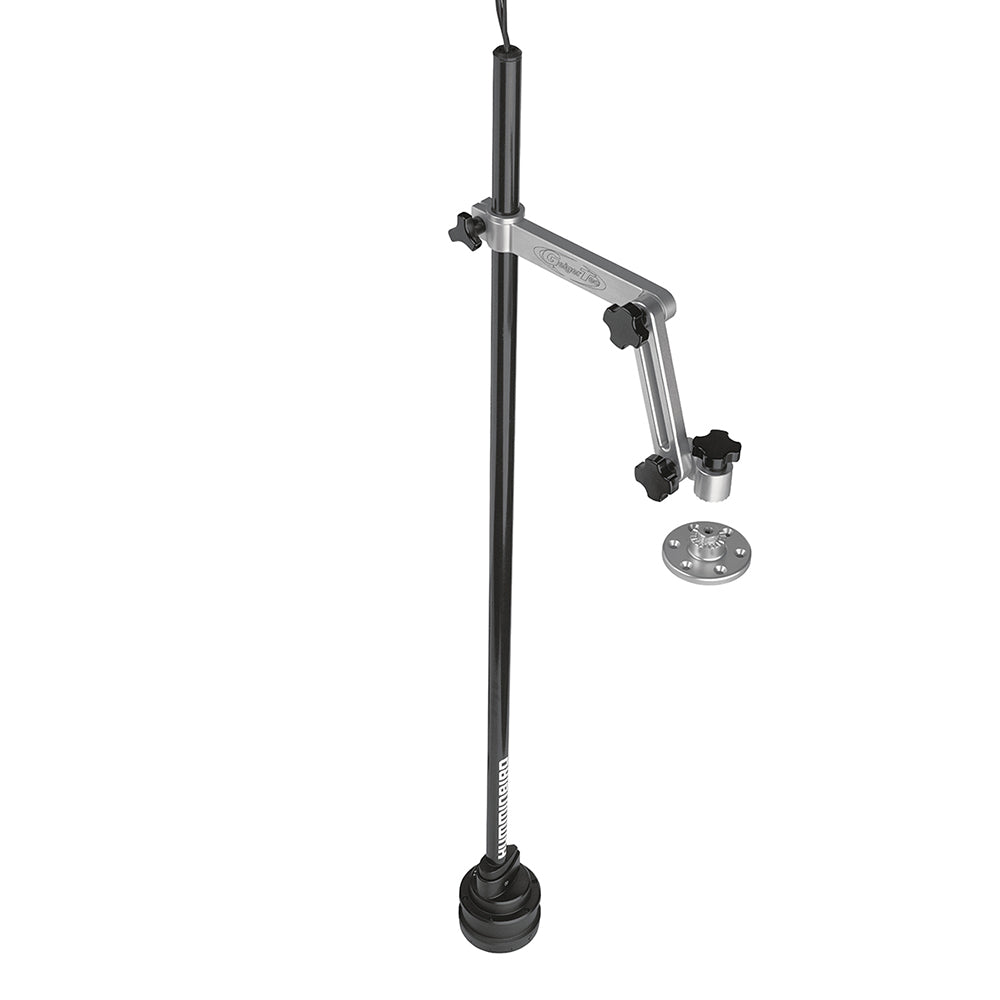

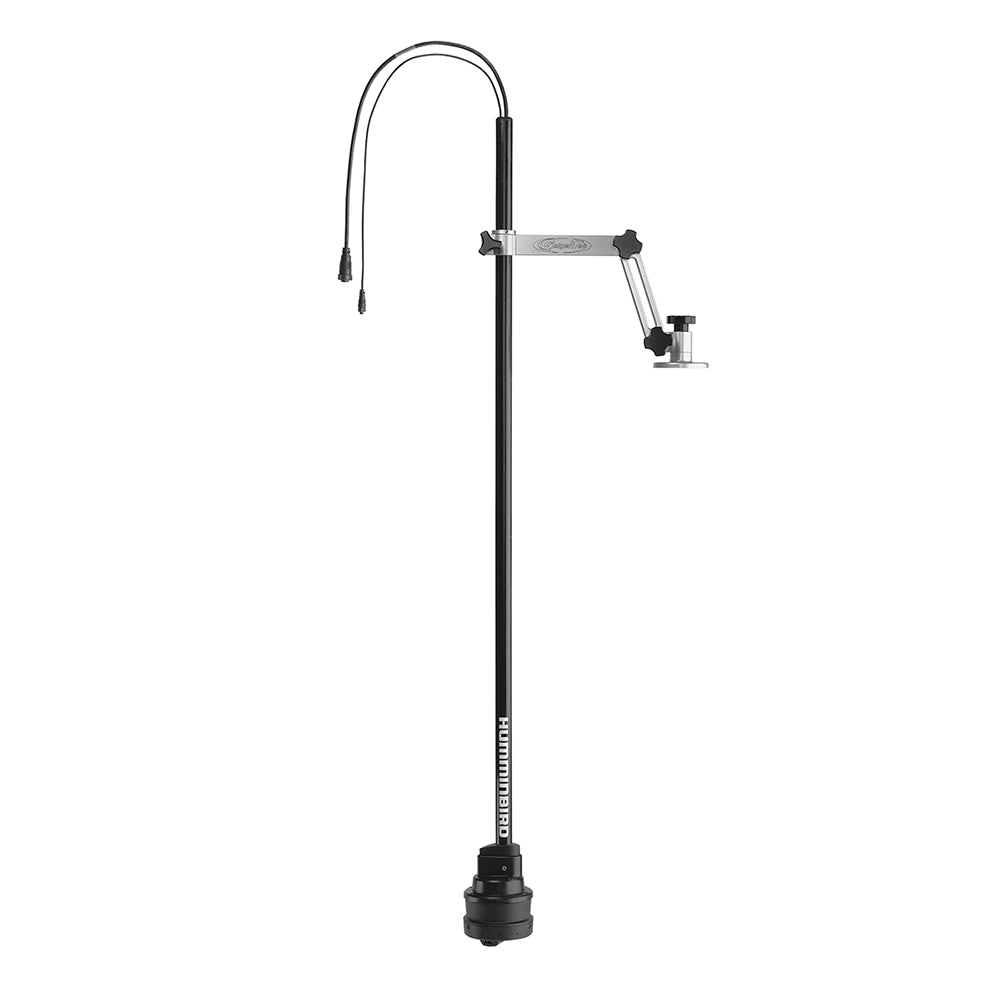

Humminbird MEGA 360 Imaging with Universal Bracket [411390-1]

The Humminbird MEGA 360 Imaging with Universal Bracket provides a detailed 360-degree sonar view around your boat when connected to a compatible Humminbird display. Its 50-inch shaft and adjustable billet-aluminum GeigerTec mount support installation on a wide range of boats.

Sonar transducer and mounting package; display not included. Confirm display compatibility and mounting clearance for your boat before purchase. Universal mounting does not guarantee fit on every boat.

360-degree sonar views

• MEGA Imaging CHIRP operates across the megahertz range to reveal fish and structure around the boat.
• Independent mounting keeps the sonar view from turning with the trolling motor's steering, including while trolling or using Spot-Lock.
• Mark waypoints directly on the MEGA 360 screen and view their position updates as the boat moves.
• Optional on-screen range rings show target distance from the boat.
• View MEGA 360 alongside supported sonar and map views.
• Customize sweep speed, viewing area, display information, sonar zoom and color palette.

Mounting

• 50-inch shaft.

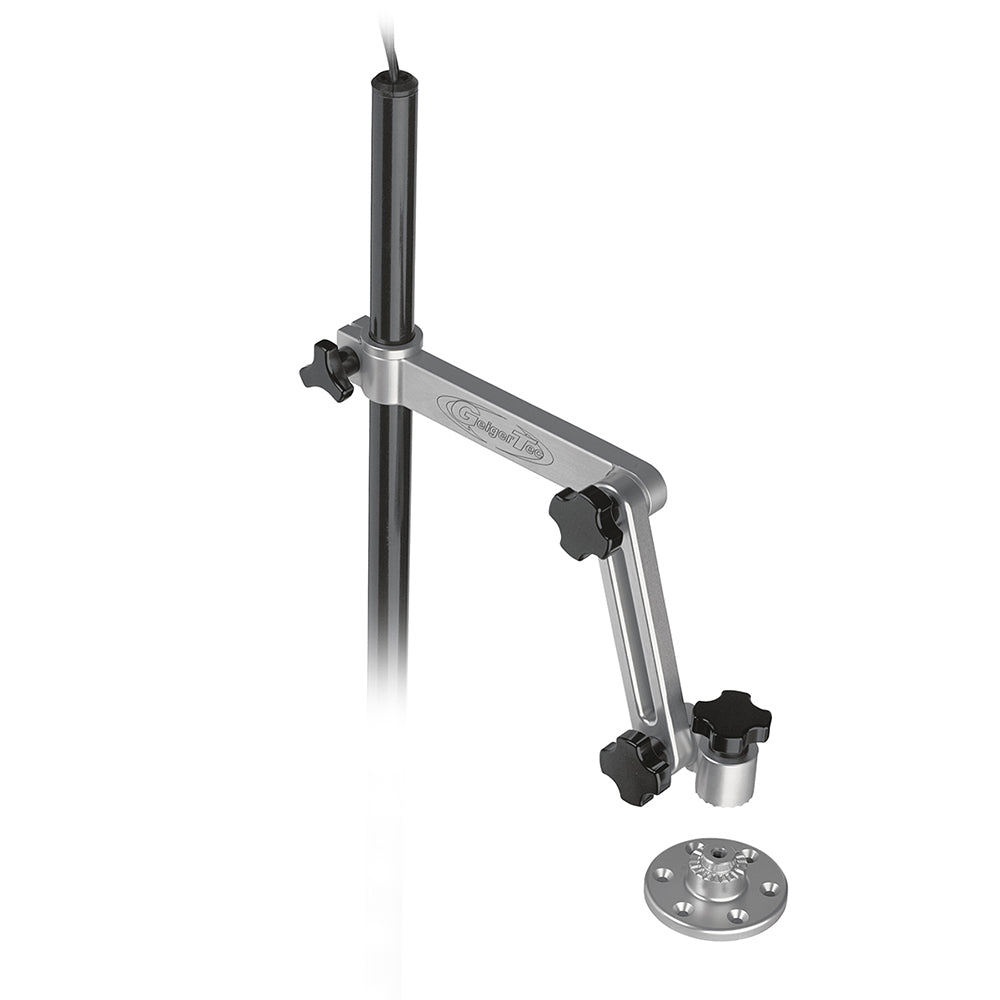

• Included adjustable GeigerTec bracket made from billet aluminum.
• Depth ring for shaft positioning.
• Mounts independently of trolling-motor steering.

Display and network compatibility

Direct connection: The supplied compatibility list specifies HELIX G3N and SOLIX G2 models equipped with MEGA Side Imaging+ or MEGA Down Imaging+.

Shared viewing: Once connected to a compatible HELIX G3N or SOLIX G2 unit with MEGA Imaging+, the MEGA 360 view can be shared over an Ethernet network to SOLIX models and HELIX G2N/G3N models. Shared-view compatibility is not the same as direct transducer compatibility.

Verify your exact display model and required network connections before purchase. Compatible displays and Ethernet networking equipment are not included.

What's included

• MEGA 360 Imaging transducer with attached power and transducer cables
• 10-foot SOLIX transducer extension cable
• 10-foot HELIX transducer adapter cable
• 10-foot MEGA 360 power cable
• Adjustable aluminum MEGA 360 mounting bracket with shaft depth ring

Product details

• Part number: 411390-1.
• UPC: 082324055355.
• 1-year limited warranty.
