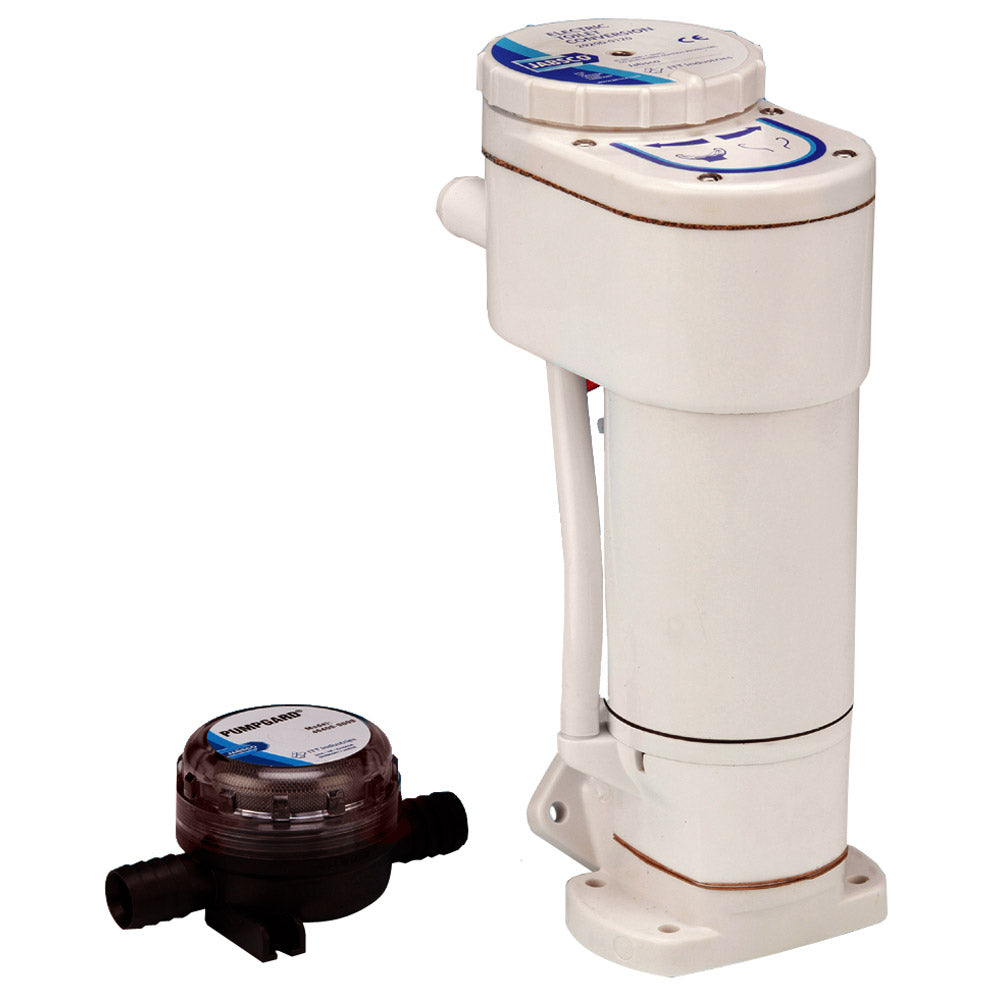

Jabsco 12V Electric Conversion Kit [29200-0120]

The Jabsco 29200-0120 is a 12V electric conversion kit that replaces the manual pump assembly on Jabsco and PAR 29090 and 29120 standard- and large-bowl toilets. Adapters are available for some other makes; confirm compatibility and adapter requirements before ordering.

Operation and installation

• Dual-action control allows bowl water level to be varied.
• Built-in macerator.
• Suitable for properly plumbed above- or below-waterline installations.
• Self-priming up to 0.6 m (2 ft).
• Listed waste discharge capability: Over an anti-siphon loop up to 1.8 m (6 ft), with a through-hull fitting down to 0.9 m (3 ft) below the surface. Follow the manual and applicable discharge restrictions.
• Typical power consumption is listed as less than 1.0 amp-hour at 12V; the supplied copy does not specify the usage interval.
• Listed standards: EN50081-2 electromagnetic compatibility, ISO 8846 MARINE and USCG 183.410 ignition protection.

Specifications:

• Type: Misc
• Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
• UPC: 671880520935
