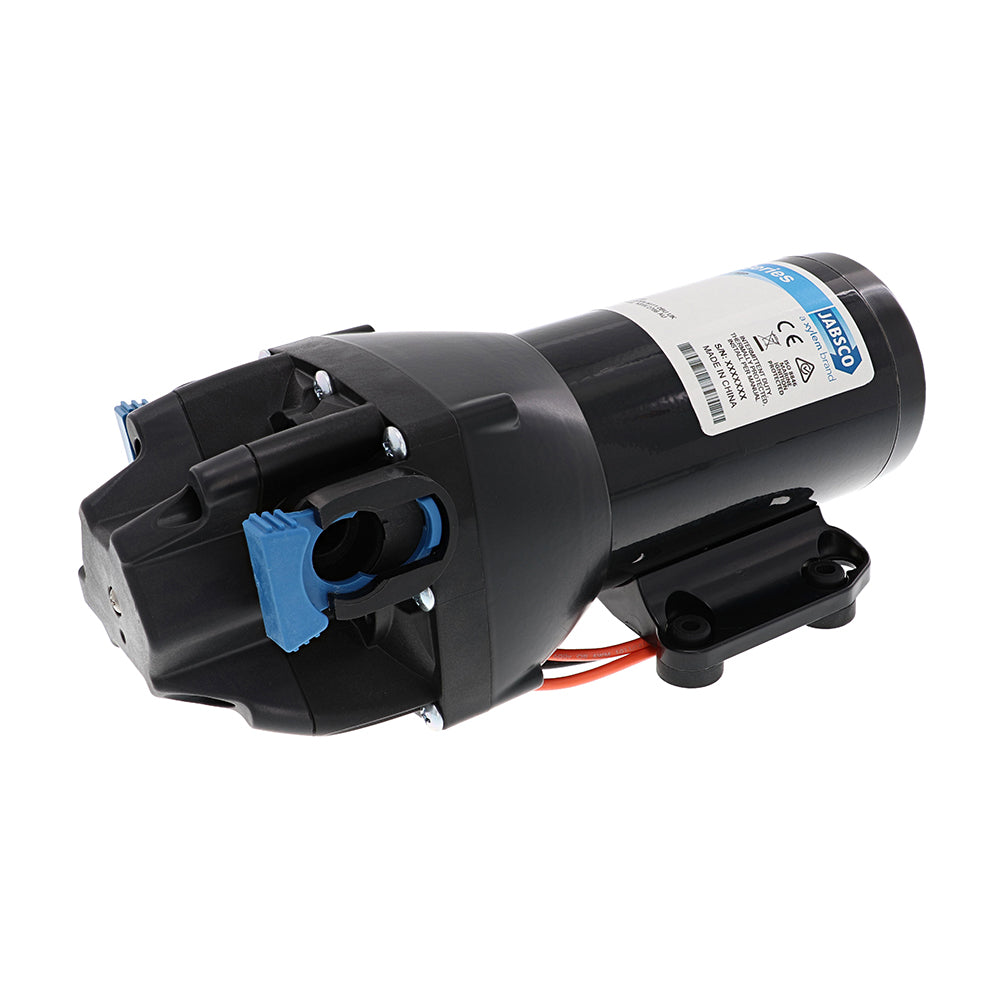

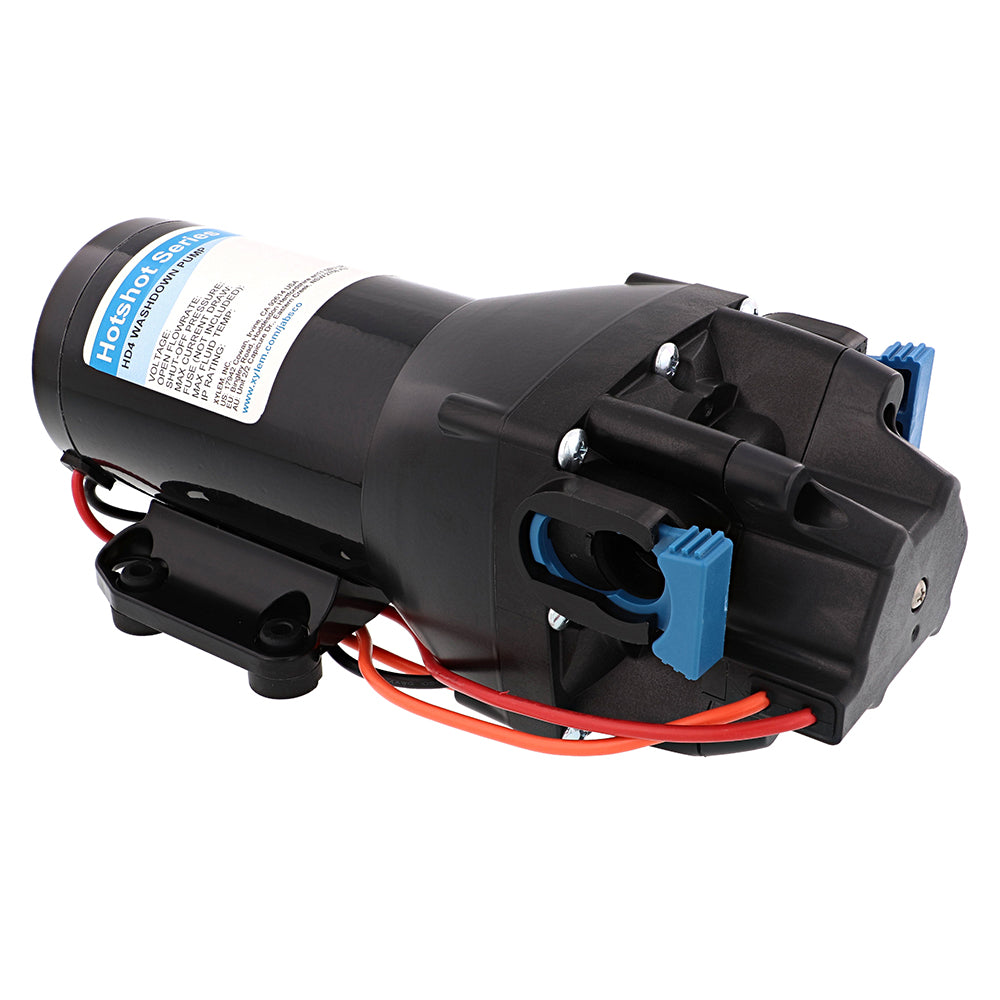

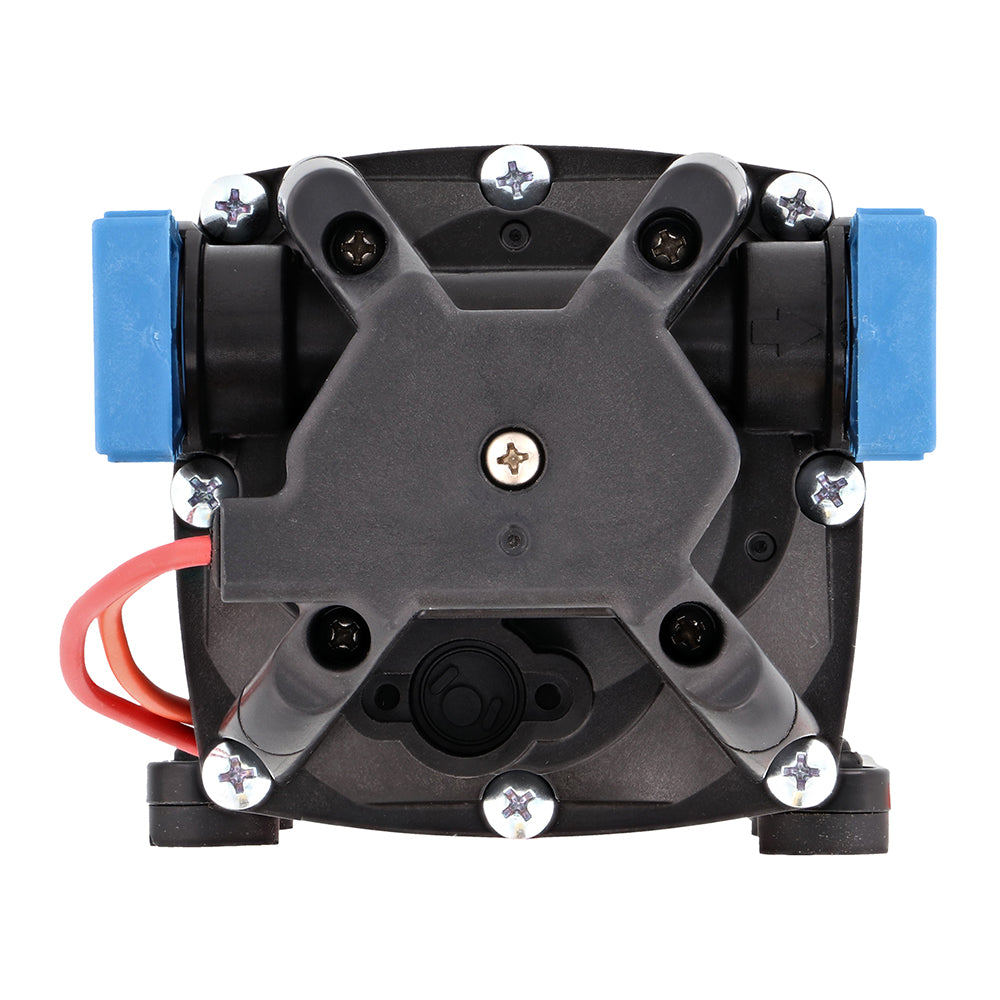

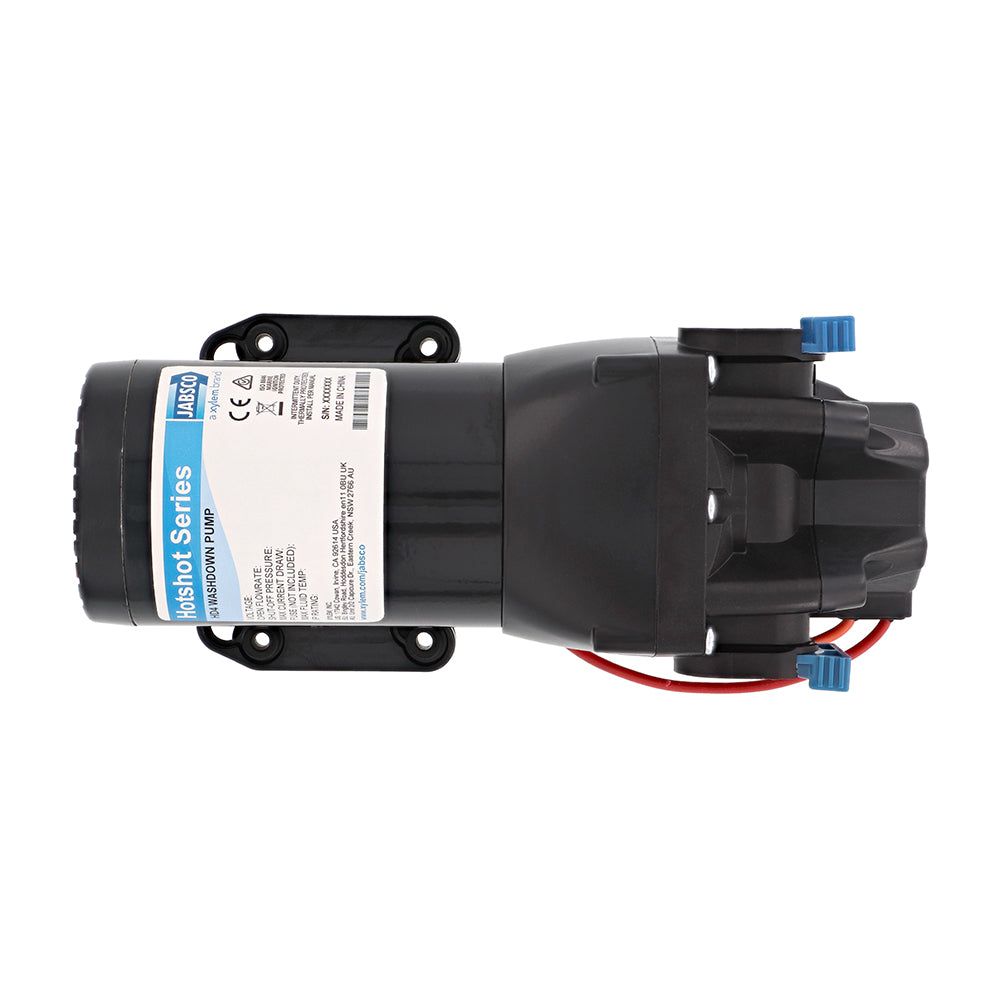

Jabsco HotShot HD4 Washdown Pump Kit with 25-Foot HoseCoil - 12V, 4 GPM, 60 PSI [Q401J-118N-4A]

The Jabsco HotShot HD4 Q401J-118N-4A washdown pump kit includes a 25-foot (7.6 m) HoseCoil. The 12V pump is rated at 4 GPM with a maximum pressure of 60 PSI, with an integrated, sealed pressure switch for on-demand operation.

Pump features

• Heavy-duty motor with a powder-coated shell, cast aluminum endbells and lower housing.
• Co-molded diaphragm for durability.
• Efficient, quiet operation and vibration-dampening mounting feet.
• Self-priming design for installation flexibility.
• Can run dry without damage.
• Quick-connect ports for installation and servicing.

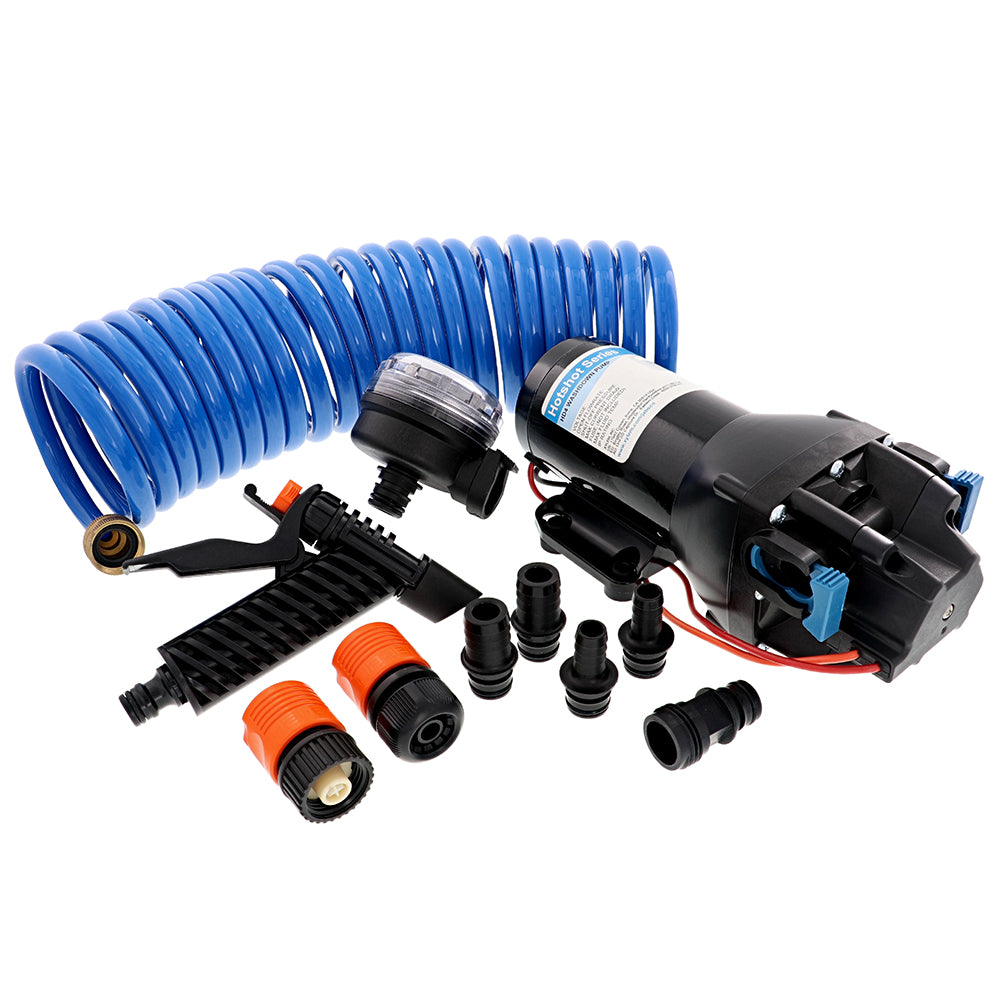

Kit fittings and accessories

• 25-foot HoseCoil.
• Quick-connect straight hose-barb and GHT fittings; fitting sizes vary by model.
• 90-degree, 20-mesh quick-connect strainer.
• Trigger nozzle and quick-connect hose adapters.

Technical specifications

• Voltage: 12V.
• Flow rate: 4 GPM.
• Maximum pressure: 60 PSI.
• Maximum inlet pressure: 30 PSI (2.1 bar).
• Fluid temperature: 32°F–140°F (0°C–60°C).
• Dry self-priming capability: Listed as 7 ft minimum (2.1 m minimum).
• Motor: Brushed, permanent-magnet TENV.
• Pumphead upper housing: Glass-fiber-reinforced polypropylene.
• Diaphragm: Co-molded TPV.
• Check valves: EPDM.
• Listed certifications: CE, ISO 8846 and RCM.
• Ingress protection: IPX6.

Package details

• Box dimensions: 6 inches high × 12 inches wide × 17 inches long.
• Packaged weight: 10.4 lb.
• UPC: 671880841924.

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Brochure (PDF)
