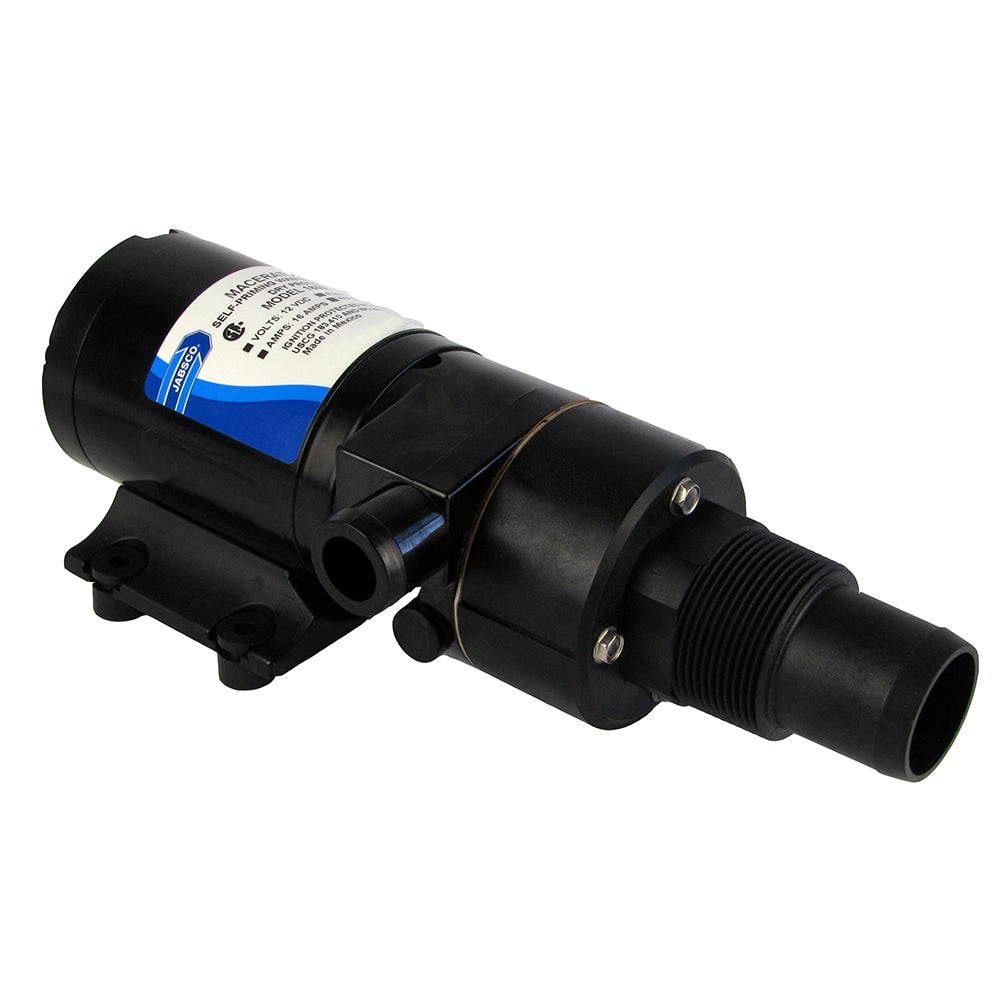

Jabsco Sealed Self-Priming Macerator Pump - 24V [18590-2094]

The Jabsco 18590-2094 is a 24V sealed macerator waste pump for marine holding-tank evacuation where discharge is permitted, as well as fish-box and livewell evacuation. Its four-bladed chopper helps reduce clogging.

Operation and care

• Flow rate: Up to 12 GPM.
• Duty cycle: Up to 15 minutes of continuous operation.
• Run-dry detection shuts the pump off when fluid is absent, while allowing an initial priming period. Interrupting the power supply resets the run-dry device.
• Triple-sealed motor helps protect against internal and external corrosion.
• Flush holding tanks with several gallons of water after each pump-out to help reduce sediment buildup and blockage.
• A typical 30-gallon (115-liter) tank is listed as emptying in less than three minutes, with a 180-gallon (680-liter) tank within one duty cycle; actual performance depends on installation.

Connections and installation

• Inlet: 1-1/2-inch hose barb plus 1-1/2-inch NPT.
• Discharge: 1-inch hose barb.
• The specifications list a 4-foot suction lift, but the supplied narrative also states 5 feet. Confirm the required lift with the manufacturer before installation.

Do not use for holding-tank discharge in restricted areas. Follow the owner’s manual for installation and operation.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 12 GPM
• Inlet Size: 1-1/2"
• Suction Lift (ft.): 4'
• Volts: 24v
• Type: Waste Pumps
• Box Dimensions: 4"H x 5"W x 13"L WT: 5.25 lbs
• UPC: 671880564380
