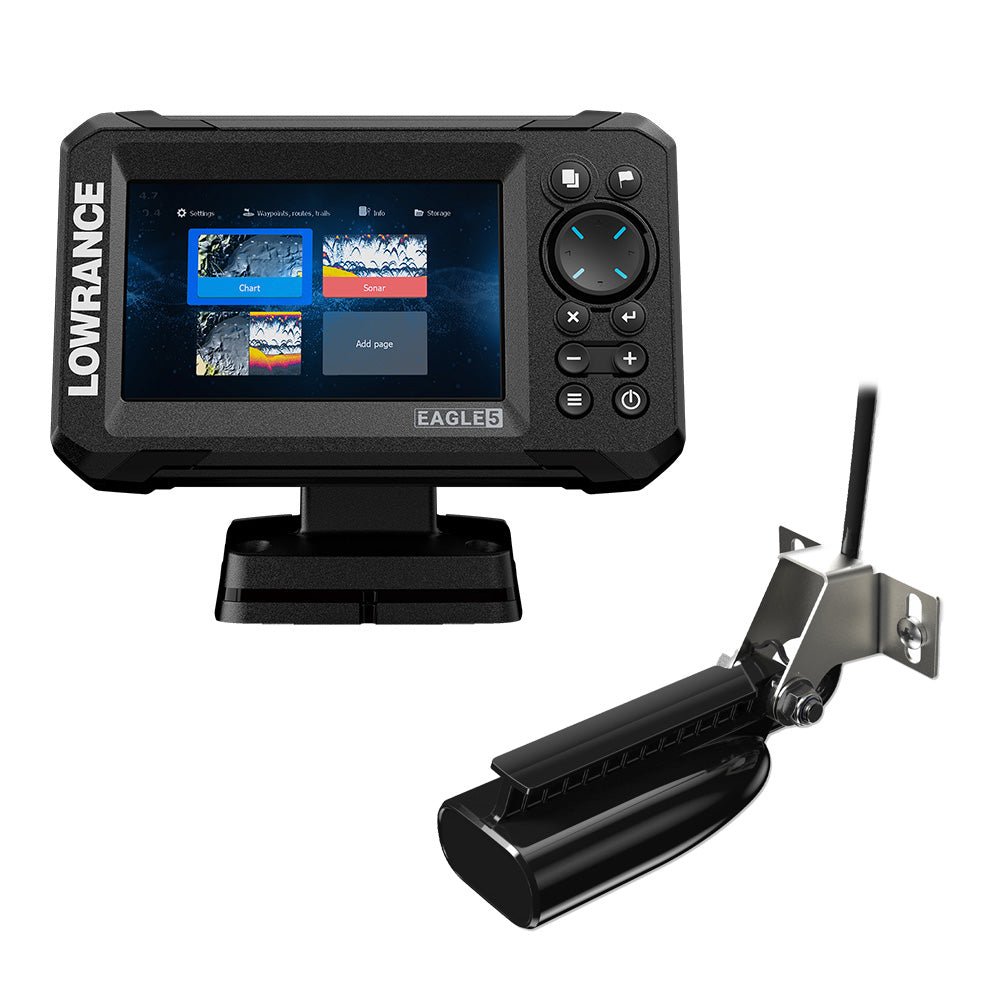

Lowrance Eagle 5 Fishfinder/GPS with SplitShot HD – 000-16111-001

Less time adjusting. More time fishing.

The Lowrance Eagle 5 Fishfinder/GPS Combo pairs a 5-inch IPS display with an included SplitShot HD transducer and preloaded C-MAP U.S. inland charts. Autotuning sonar simplifies setup, while FishReveal helps you distinguish fish from the structure around them.

See fish and cover below your boat

• SplitShot HD included: Wide-angle high-CHIRP sonar for fish finding and DownScan Imaging for detailed views of fish-holding structure.
• FishReveal: Combines CHIRP and DownScan to help identify fish in cover.
• Autotuning sonar: Automatically adjusts sonar settings so you can spend less time setting up.
• Imaging color palettes: Adjust contrast and viewability for easier-to-read sonar images.

Explore U.S. inland waters

Preloaded C-MAP inland charts cover more than 17,000 American lakes. Genesis Live lets you create custom half-foot contour maps of a local lake or uncharted water in real time.

The SD card slot supports software updates, Genesis Live recording, and charting add-ons. This model includes preloaded U.S. inland charts, not the separate U.S./Canada Discover OnBoard SD-card bundle.

A clear display and simple connections

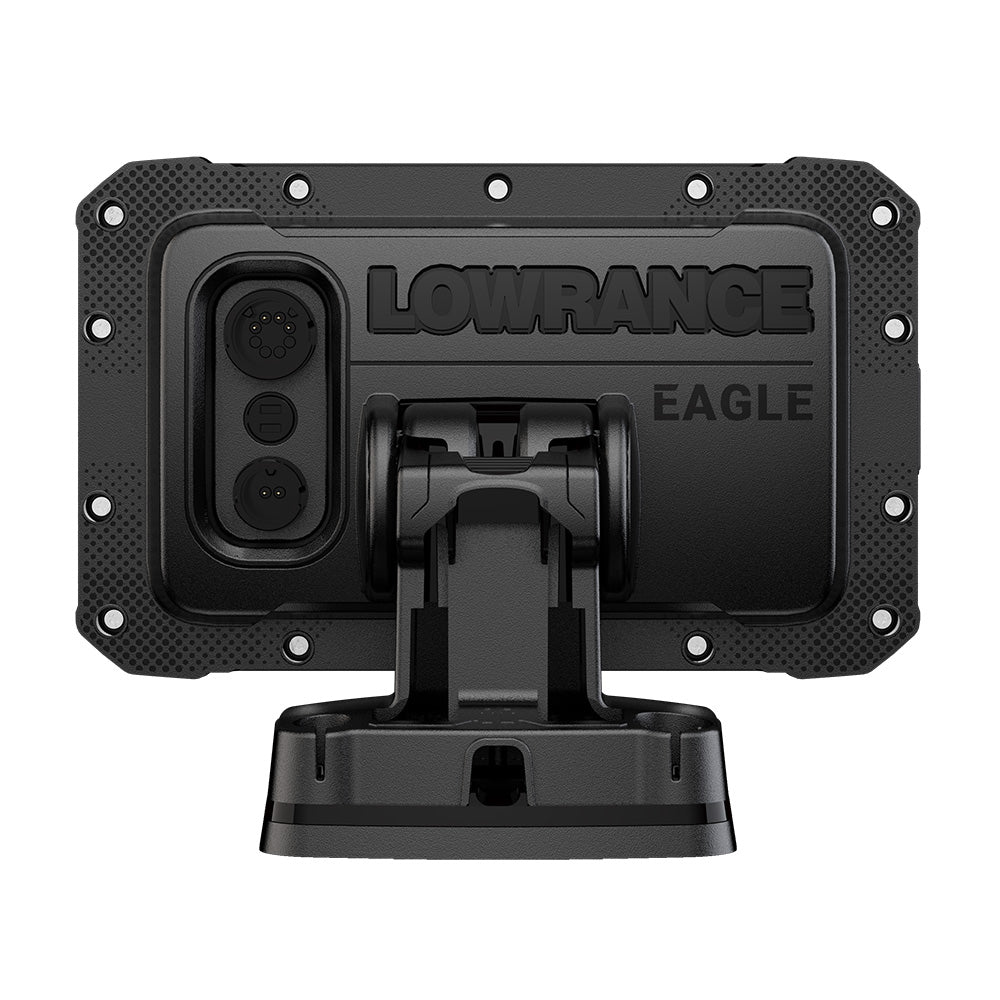

The 5-inch IPS screen offers visibility from different angles, including with polarized sunglasses in direct sunlight. The twist-lock connector system simplifies installation and removal on a boat or kayak.

Display note: This model is not a touchscreen.

What's in the box

• Eagle 5 display
• SplitShot HD transducer
• Bullet/SplitShot transom bracket
• Power cable with fuse and connectors
• Eagle 5 bracket and mounting hardware

Product specifications

• Brand: Lowrance
• Model: Eagle 5
• Part number: 000-16111-001
• Screen: 5-inch IPS, non-touchscreen
• Included transducer: SplitShot HD, 000-16284-001
• Included mapping: Preloaded C-MAP U.S. inland charts
• Box dimensions: 4 inches H × 10 inches W × 14 inches L
• Listed shipping weight: 3.6 lb
• UPC: 9420064131358

Warranty: Confirm the applicable warranty term before purchase; the supplied product information lists conflicting one-year and two-year terms.
