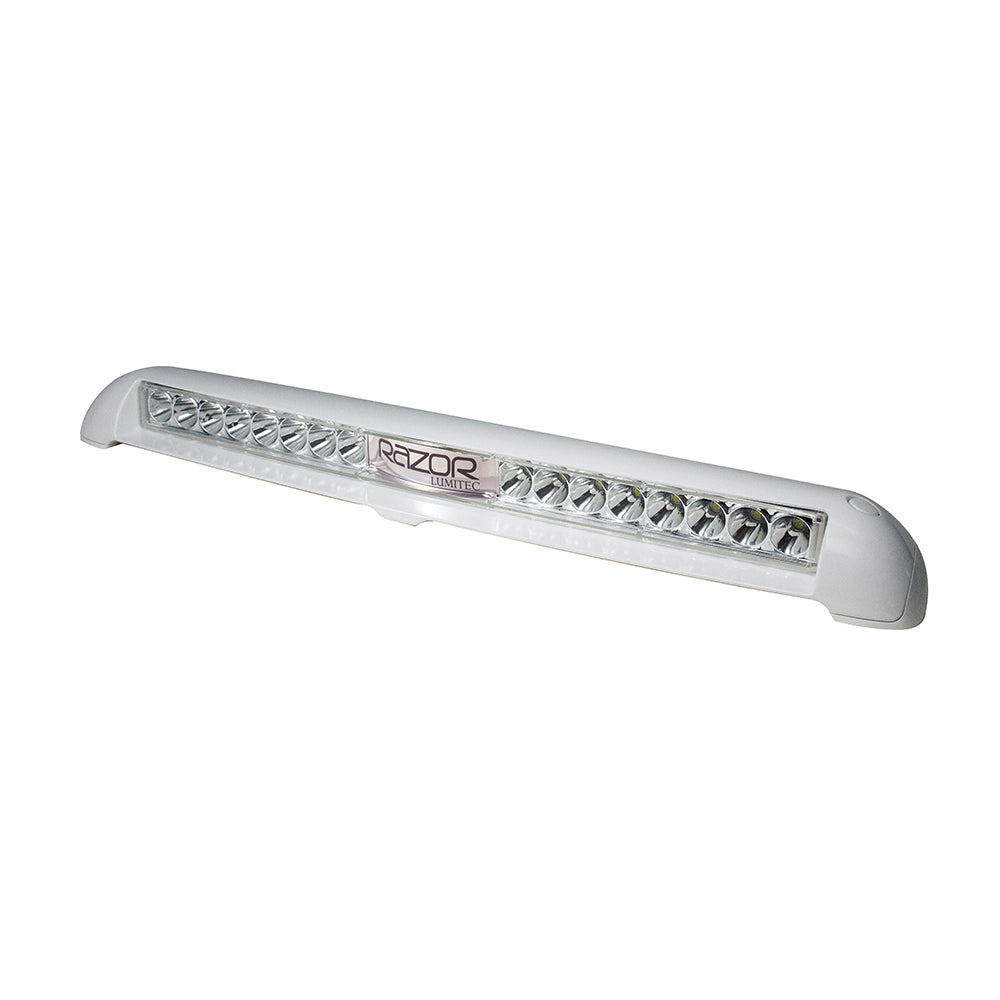

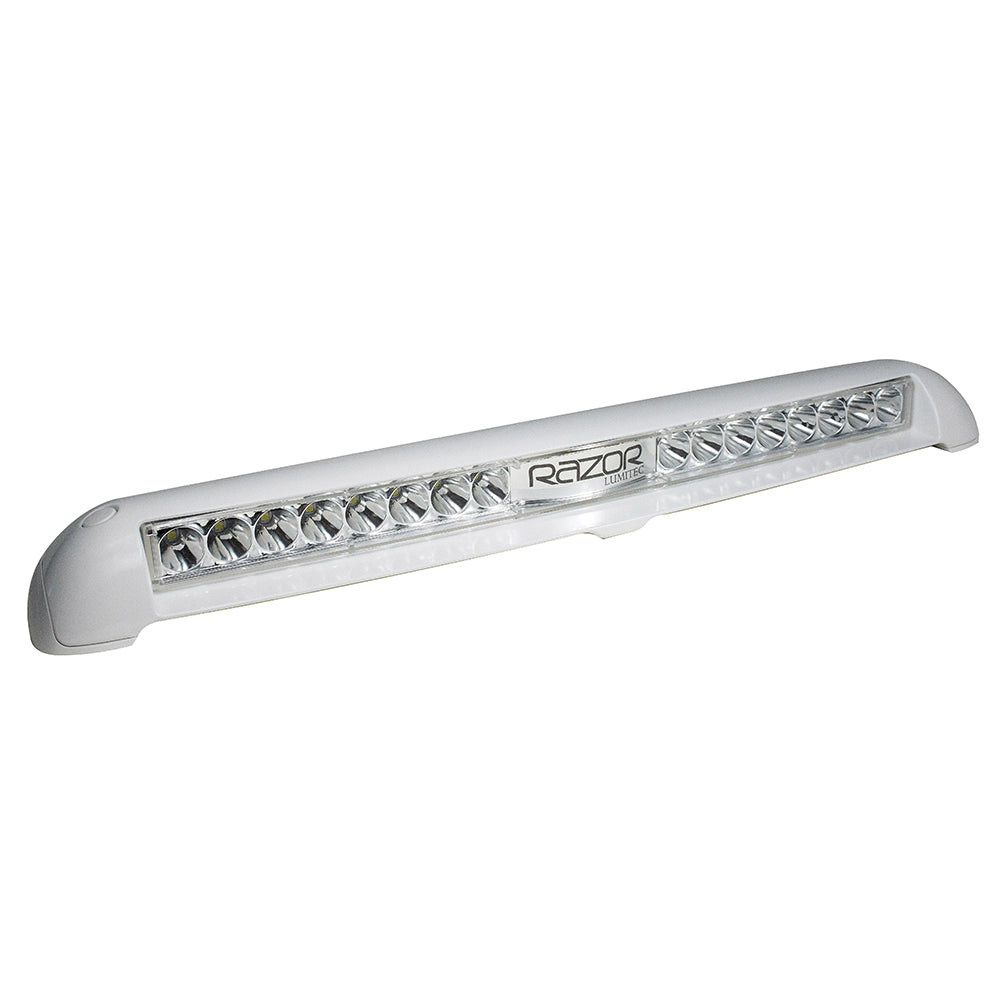

Lumitec Razor Light Bar - Spot - Flush Mount - White [101587]

The white Lumitec 101587 Razor is an 18-inch, spot-beam LED light bar designed for flush mounting in a suitable molded recess.

• Listed output: more than 10,000 lumens.
• Input: 10–30V DC.
• Low-profile design, listed at 1.5 inches.
• Powder-coated die-cast aluminum construction.
• Integrated dimming without an additional dimmer switch.
• Can be mounted forward or aft, horizontally or downward-facing when installed as directed.
• A surface-mount kit is an alternative for suitable flat or slightly crowned surfaces; confirm whether the kit must be purchased separately.

This is the spot version. Other beam patterns mentioned in series-level copy do not establish a selectable beam for this model. Follow mounting and thermal-clearance guidance to protect surrounding composites.

Specifications

• Beam Pattern: Spot
• Housing: White
• Length (Inches): 18"
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 4"H x 5"W x 25"L
• Listed package weight: 3.55 lbs
• UPC: 089300015877

Brochure (pdf)
