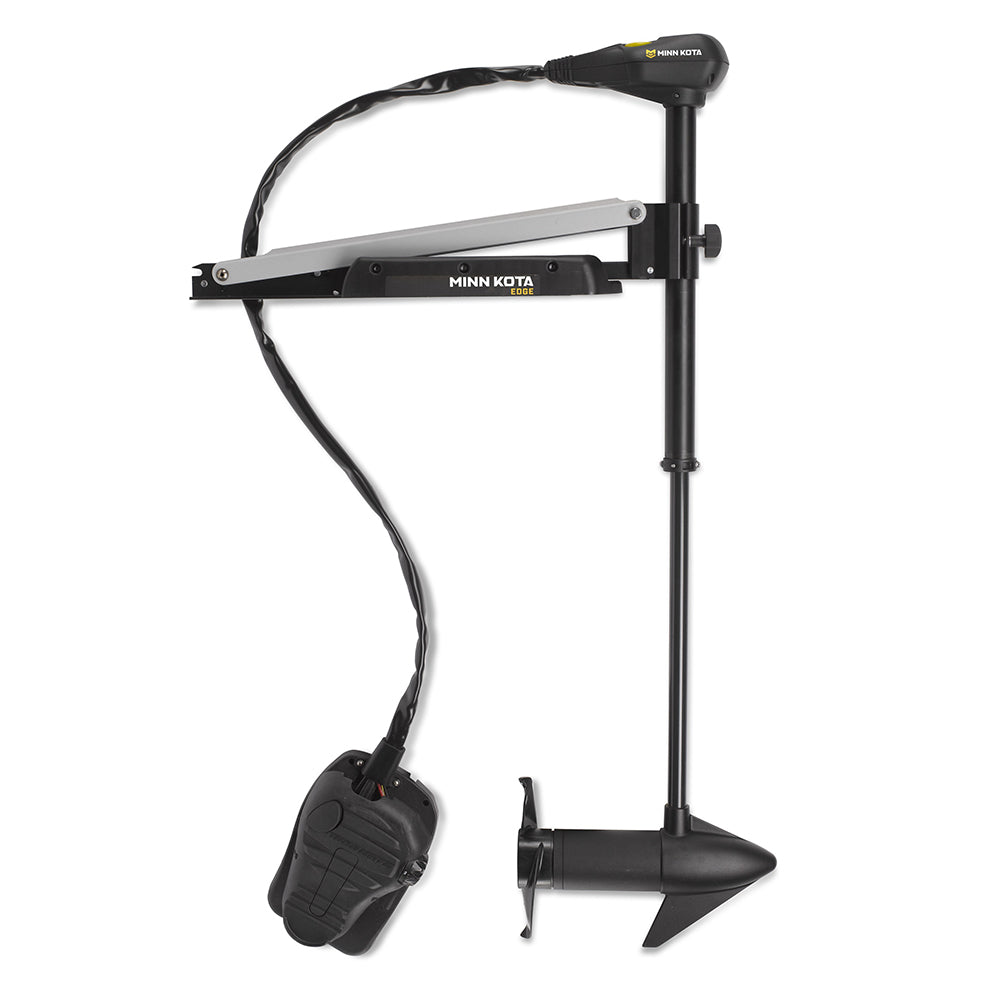

Minn Kota Edge 45 Foot-Control Trolling Motor – 12V, 45 lb, 45" (1355947)

Steer hands-free through freshwater fishing spots with the Minn Kota Edge 45 Foot-Control Trolling Motor. Model 1355947 combines 45 lb of thrust, a 45-inch composite shaft, and a cable-steer foot pedal for precise steering and speed control.

Features

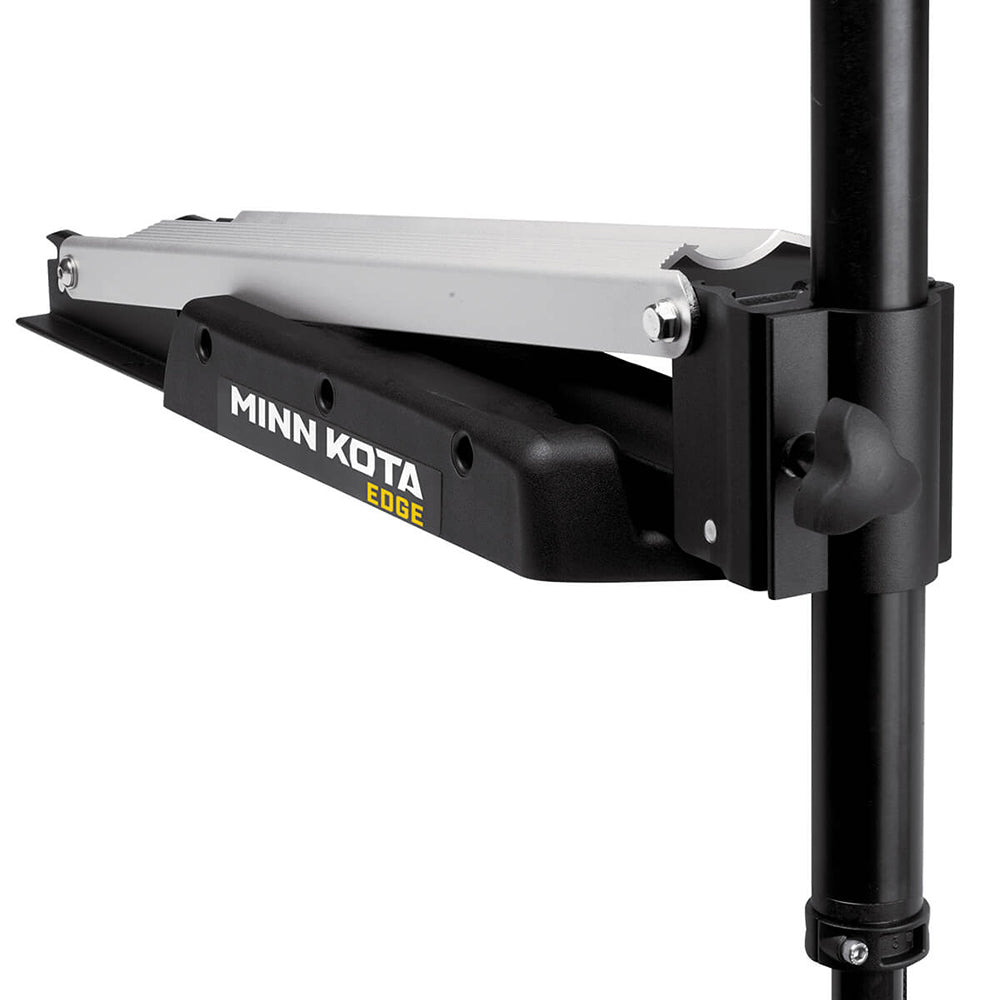

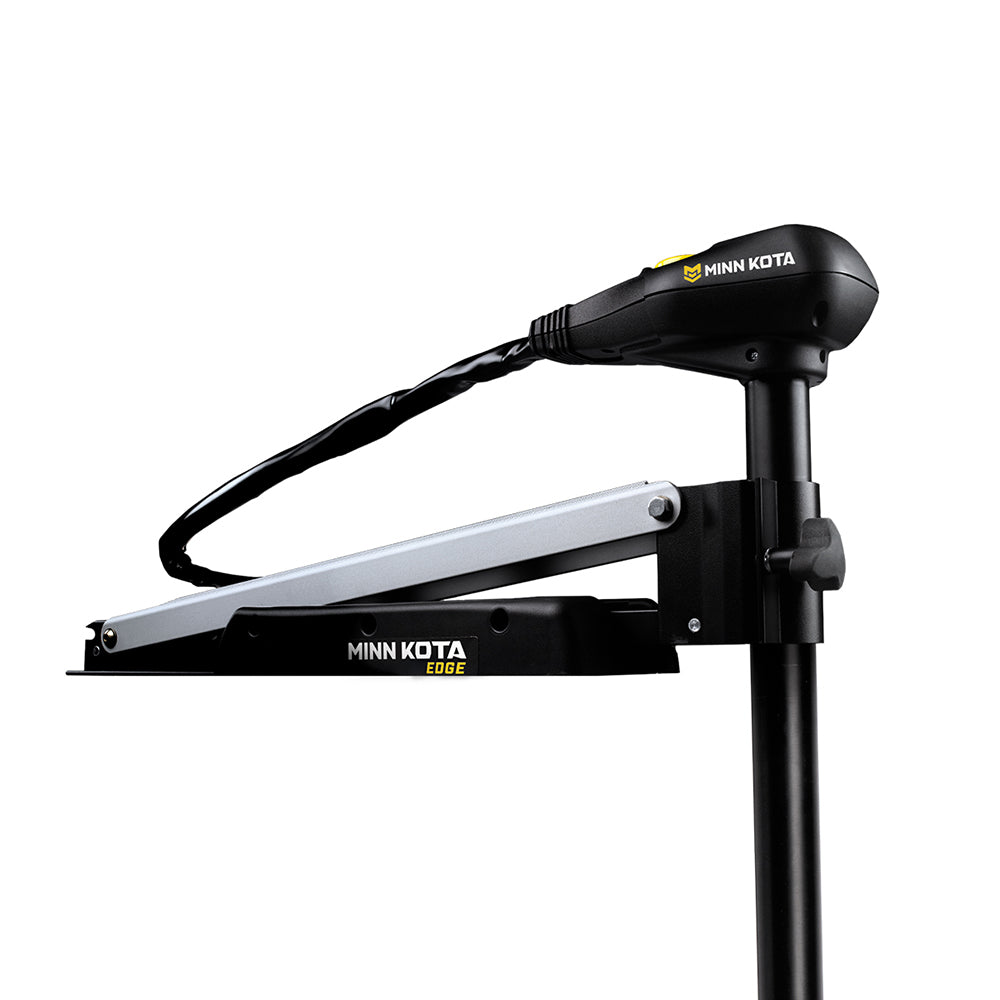

• Marine-grade anodized aluminum mount arm provides strength and secure stowing.
• Latch & Door mount with soft-grip knob allows easy motor removal for storage.

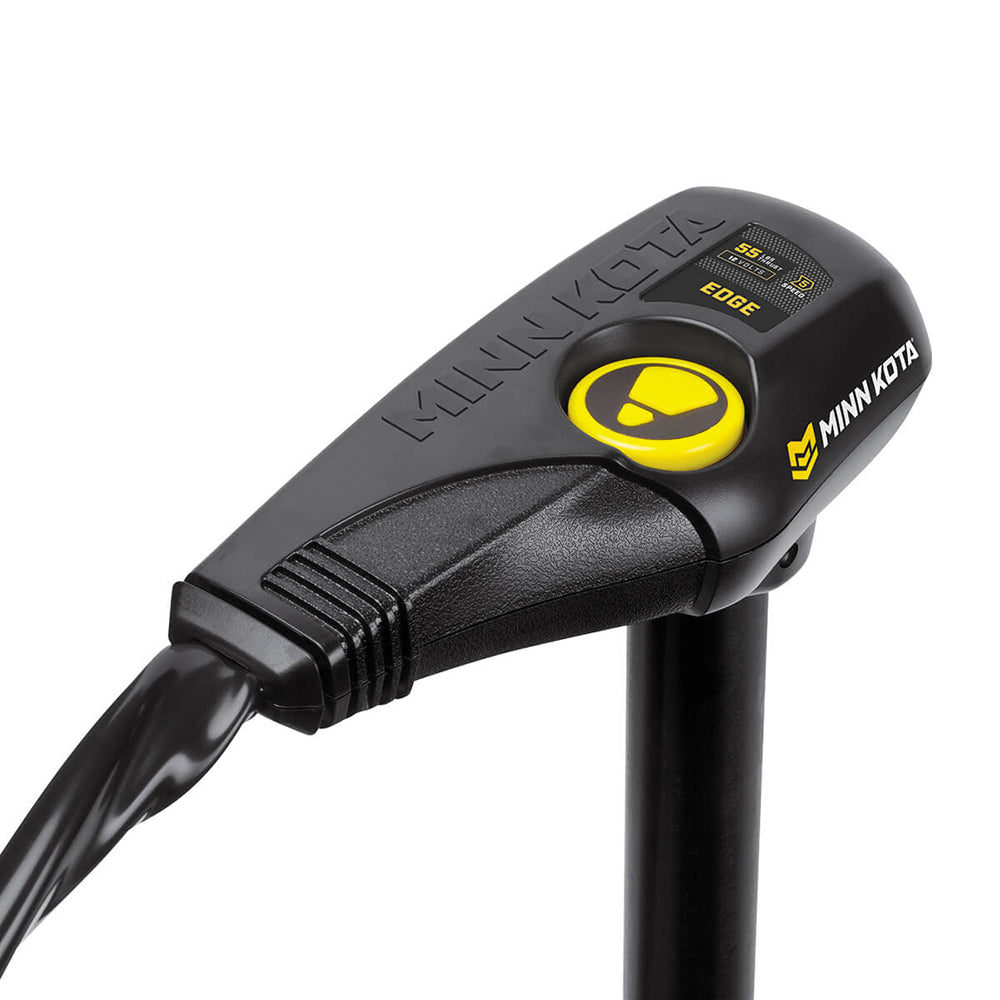

• Impact-resistant hybrid composite motor head with high-visibility directional indicator.

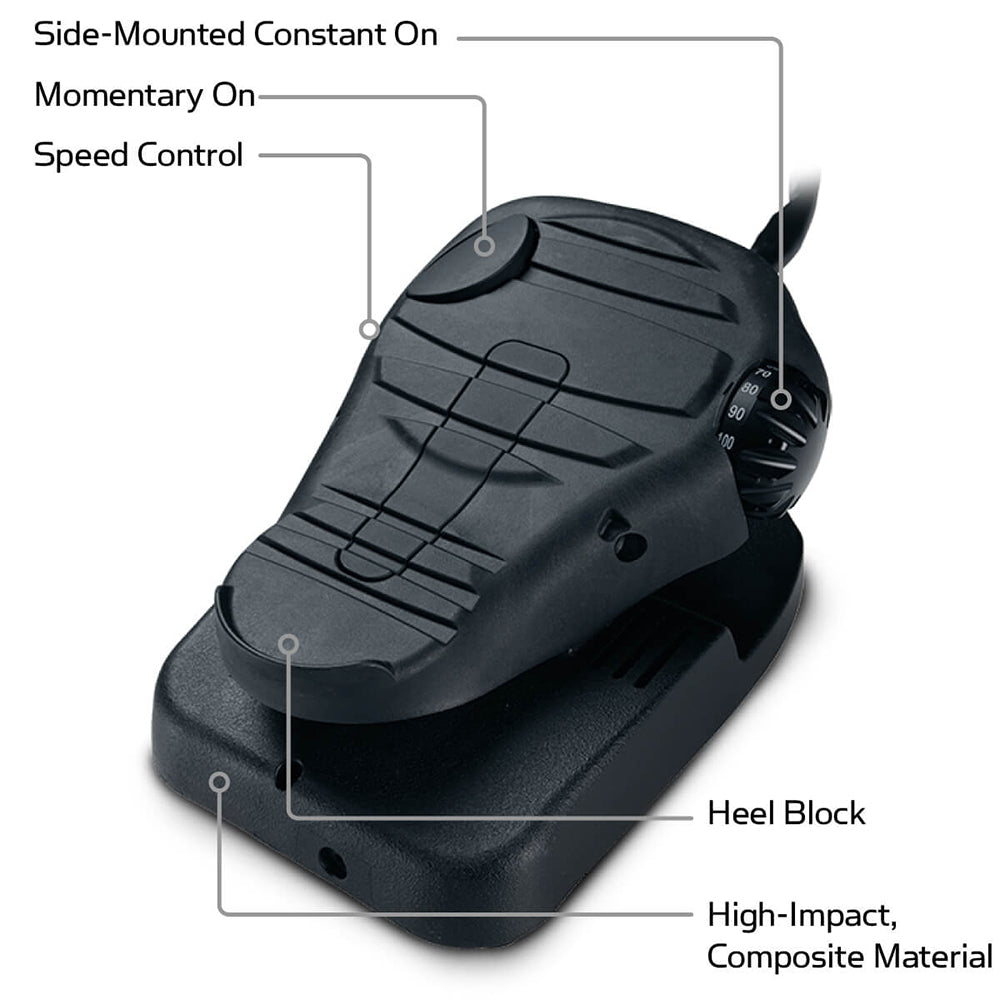

• Ergonomic cable-steer foot pedal with five speed settings.
• Large windings and commutators dissipate heat; the bearing system reduces friction and operating noise.
• Power Prop helps push through heavy vegetation.
• Composite shaft flexes on impact and is guaranteed for life.

Specifications

• Model: 1355947
• Series: Edge
• Use: Freshwater
• Mount: Bow
• Control: Cable-steer foot pedal
• Voltage: 12V
• Maximum thrust: 45 lb
• Shaft length: 45 inches
• Speed control: 5-speed
• Maximum amp draw: 42 amps
• Propeller: Power Prop (MKP-2)
• Autopilot: No
• Built-in transducer: No
• Box dimensions (H × W × L): 10 × 21 × 63 inches
• Box weight: 45 lb
• UPC: 029402036271

Included

Edge 45 lb, 45-inch foot-control trolling motor, MKP-2 propeller, hold-down strap, and mounting hardware.

Warranty

Backed by Minn Kota's 2-year motor warranty and lifetime guarantee on the composite shaft.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (PDF)
