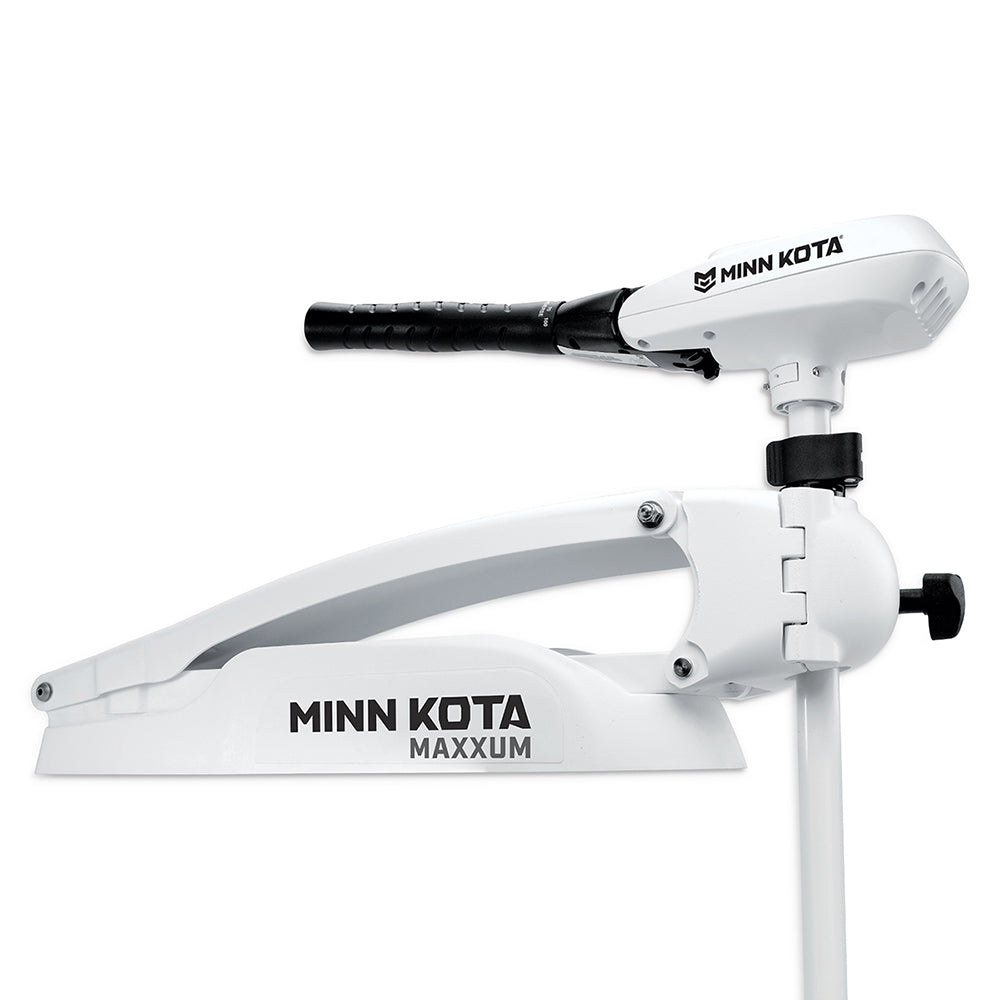

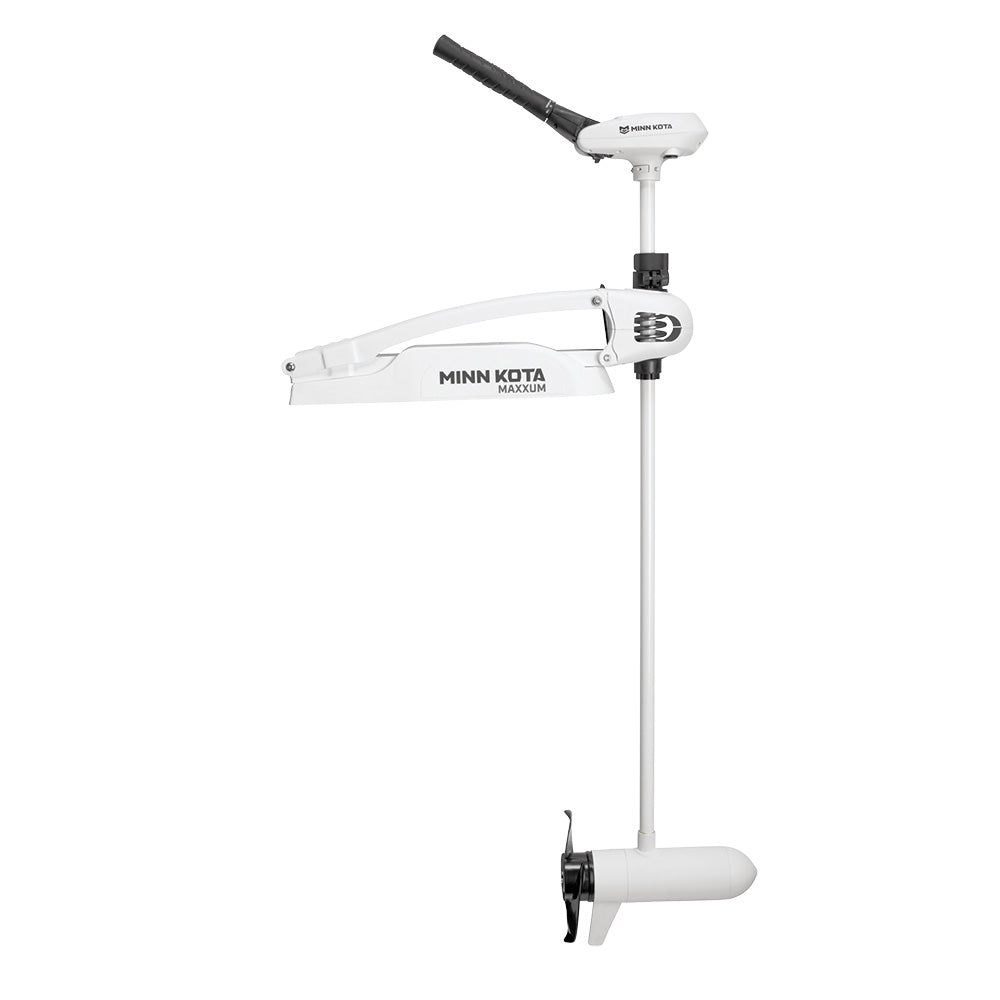

Minn Kota Riptide Maxxum RT55/SM/L-D/SC Saltwater Bow-Mount Trolling Motor, 12V, 55 lb Thrust, 42" Shaft [1363420]

The Minn Kota Riptide Maxxum RT55/SM/L-D/SC is a saltwater bow-mount trolling motor with 55 lb of thrust, 12V power and a 42-inch composite shaft. Its Tilt/Extend Tiller provides hand control, with five forward and three reverse speed settings.

Mount and controls

• Corrosion-resistant Riptide SM mount supports the motor in the stowed position.
• Latch & Door design uses non-binding nylon inserts and anti-seize lubricant and allows quick motor removal for storage.
• Quick-Lock cam depth adjuster secures the selected motor depth.
• Tilt/Extend Tiller tilts up to 45° and extends 6 inches.
• Push-to-test battery gauge provides a state-of-charge reading.
• Weedless Wedge 2 propeller uses swept-back, flared blades designed to push weeds aside.

Saltwater protection and construction

• Marine alloys and aluminum upper arms receive multi-step cleaning followed by anodizing or zinc dichromate coating and a 5-mil TGIC polyester powder-coat finish for corrosion protection.
• Control boards are fully encapsulated in marine-grade urethane, with electrical connections sealed using liquid-tight heat-shrink tubing.
• Sacrificial zinc anode, balanced materials and a composite shaft help combat galvanic corrosion.
• Composite shaft flexes on impact and is backed by Minn Kota's lifetime shaft guarantee.

Specifications

• Model: Riptide Maxxum RT55/SM/L-D/SC.
• Part number: 1363420.
• Application: Saltwater.
• Mounting: Bow mount.
• Control: Tilt/Extend Tiller.
• Input voltage: 12V.
• Maximum thrust: 55 lb.
• Shaft length: 42 inches.
• Speed control: 5 forward / 3 reverse settings.
• Maximum current draw: 50 A.
• Included propeller: Weedless Wedge 2, MKP-32.
• AutoPilot: No.
• Built-in transducer: No.
• Package dimensions: 9" H x 20" W x 61" L.
• Listed package weight: 55 lb.
• UPC: 029402033126.

Warranty

Two-year motor warranty, plus Minn Kota's lifetime composite-shaft guarantee.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (PDF)
