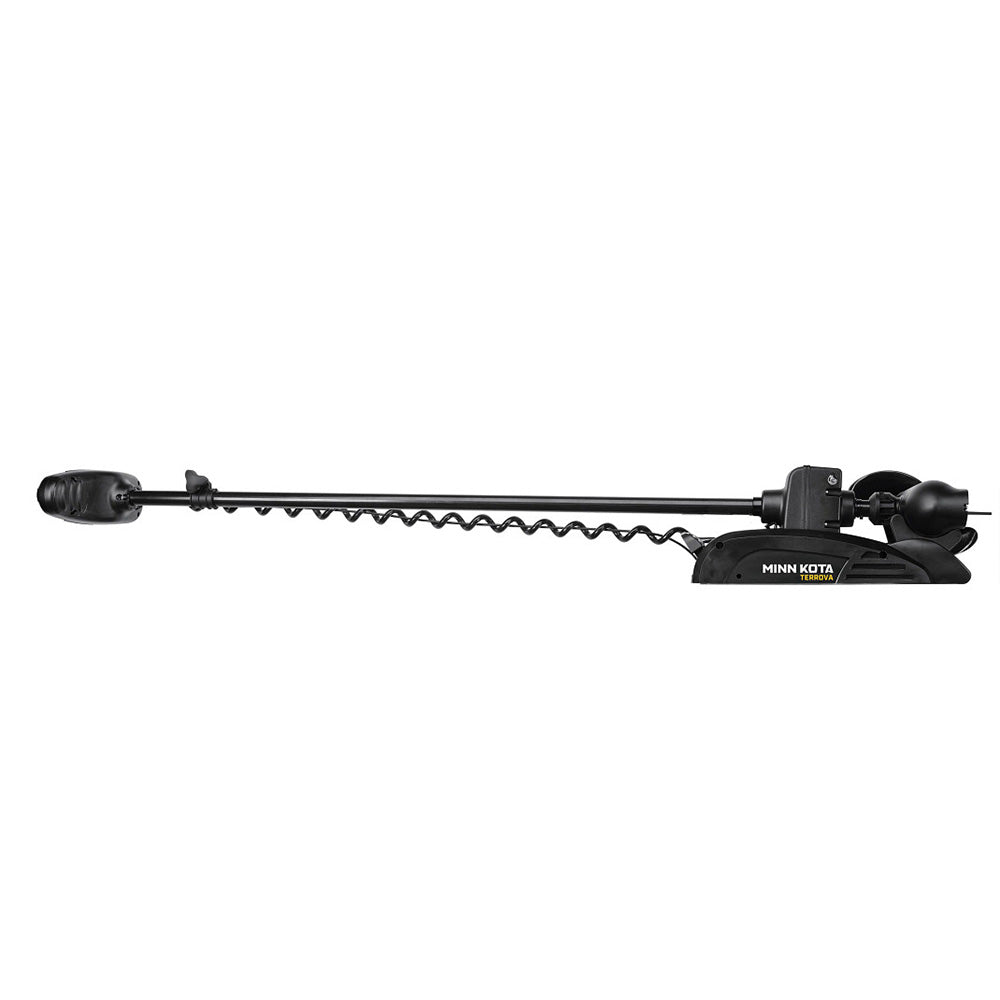

Minn Kota Terrova 55 Trolling Motor w/Wireless Remote - Dual Spectrum CHIRP - 12V - 55LB - 54" [1358356]

The Minn Kota Terrova 55 trolling motor provides 55 lb of thrust, 12V power, and a 54-inch composite shaft for freshwater fishing. Built-in Humminbird Dual Spectrum CHIRP sonar, GPS positioning, an included wireless remote, and a corded electric foot pedal provide sonar and boat-control options from the bow.

GPS positioning and connected control

• Advanced GPS Trolling System supports Spot-Lock, path recording, speed control, and steering from the wireless remote with LCD screen.
• Spot-Lock holds your fishing position using GPS and can be activated from the remote or a compatible Humminbird fish finder.
• Included heading sensor enables Jog to move your Spot-Lock position five feet in any direction.
• One-Boat Network compatible.
• Mobile app control on Apple and Android devices supports speed, steering, Spot-Lock, and software updates.

AutoPilot information requires verification: The supplied feature copy describes automatic heading control that corrects for wind, waves, and current, along with app control and a foot-pedal AutoPilot toggle. However, the supplied specifications list AutoPilot as unavailable. Confirm this feature for model 1358356 before purchase.

Sonar and foot-pedal operation

• Humminbird Dual Spectrum CHIRP sonar covers a wide range of frequencies for detailed returns of fish, structure, and the bottom.
• Transducer and wiring are concealed and protected within the motor shaft.
• Low-profile electric foot pedal offers heel/toe steering and left/right steering buttons.
• Pedal controls include Spot-Lock activation, rotary speed dial, and a momentary/constant on toggle.
• Foot pedal includes an 18-foot cable with a waterproof connector plug.

Power management and construction

• Push-to-test battery meter on the motor head provides an on-demand battery-status reading.
• Variable-speed Digital Maximizer delivers power according to the selected speed to conserve battery charge, with advertised runtime up to five times longer on a single charge.
• Weedless Wedge 2 propeller uses swept-back, flared blades to move through vegetation without battery-draining chopping.
• Composite shaft carries a lifetime guarantee.
• Designed for straightforward stowing and deployment; automatic stow/deploy is not included.

Specifications

• Part number: 1358356
• Series: Terrova; not QUEST Series
• Use: Freshwater
• Maximum thrust: 55 lb
• Voltage: 12V
• Shaft length: 54 inches
• Maximum current draw: 50A
• Mount: Bolt-on bow mount
• Motor style: Electric-steer with power steering
• Control: Wireless remote and heel-toe electric foot pedal
• Built-in sonar/transducer: Dual Spectrum CHIRP
• Spot-Lock, One-Boat Network compatibility, Digital Maximizer, and battery meter: Yes
• Speeds: Variable
• Automatic stow/deploy, power trim, Lift-Assist, Bowguard, i-Pilot Link, i-Pilot, and CoPilot: No
• AutoPilot: Conflicting source information; see note above
• Propeller: Weedless Wedge 2 (MKP-32)
• Motor warranty: Two years
• Composite-shaft guarantee: Lifetime
• Packaged dimensions: 10 inches H × 17 inches W × 73 inches L
• Packaged weight: 62 lb
• UPC: 029402050628

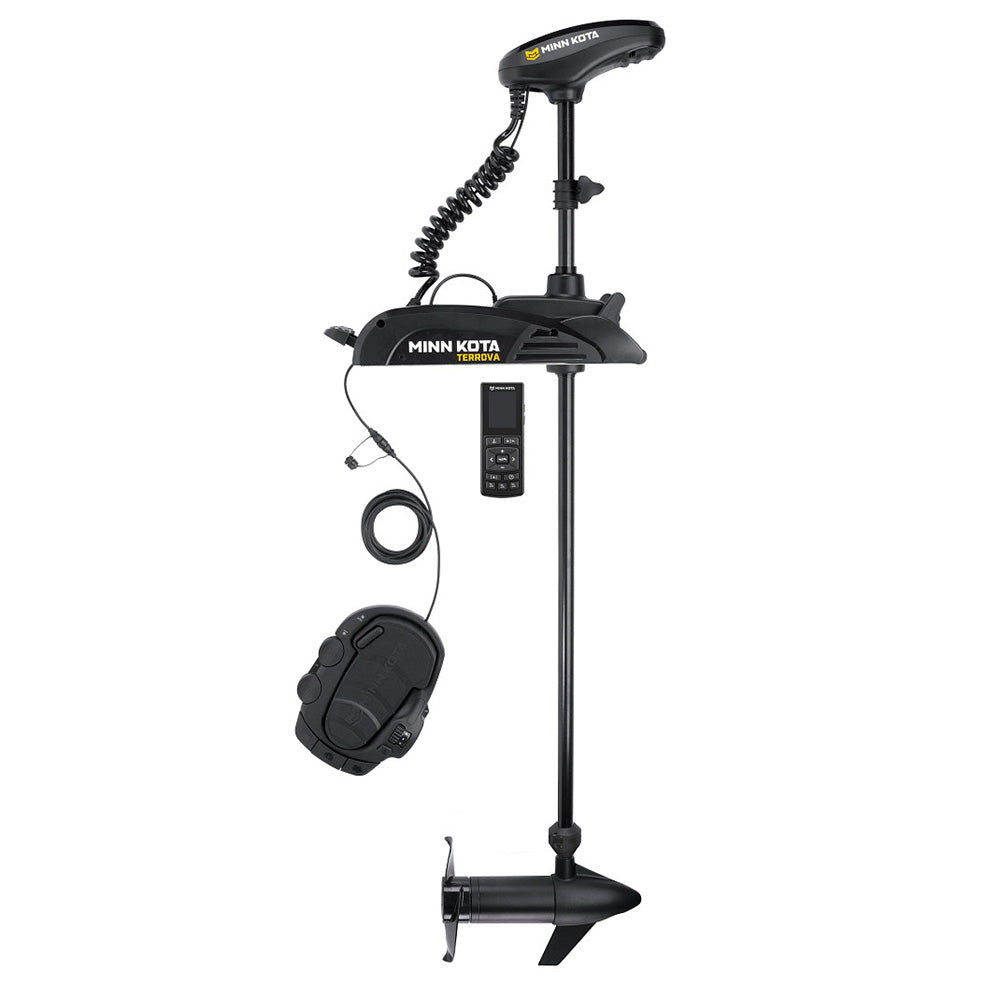

Included equipment

• Terrova 55 lb motor with 54-inch shaft and built-in Dual Spectrum CHIRP sonar
• Wireless remote and lanyard
• Heading sensor
• Corded foot pedal
• MKP-32 propeller
• Mounting hardware

Owner's Manual (PDF)
