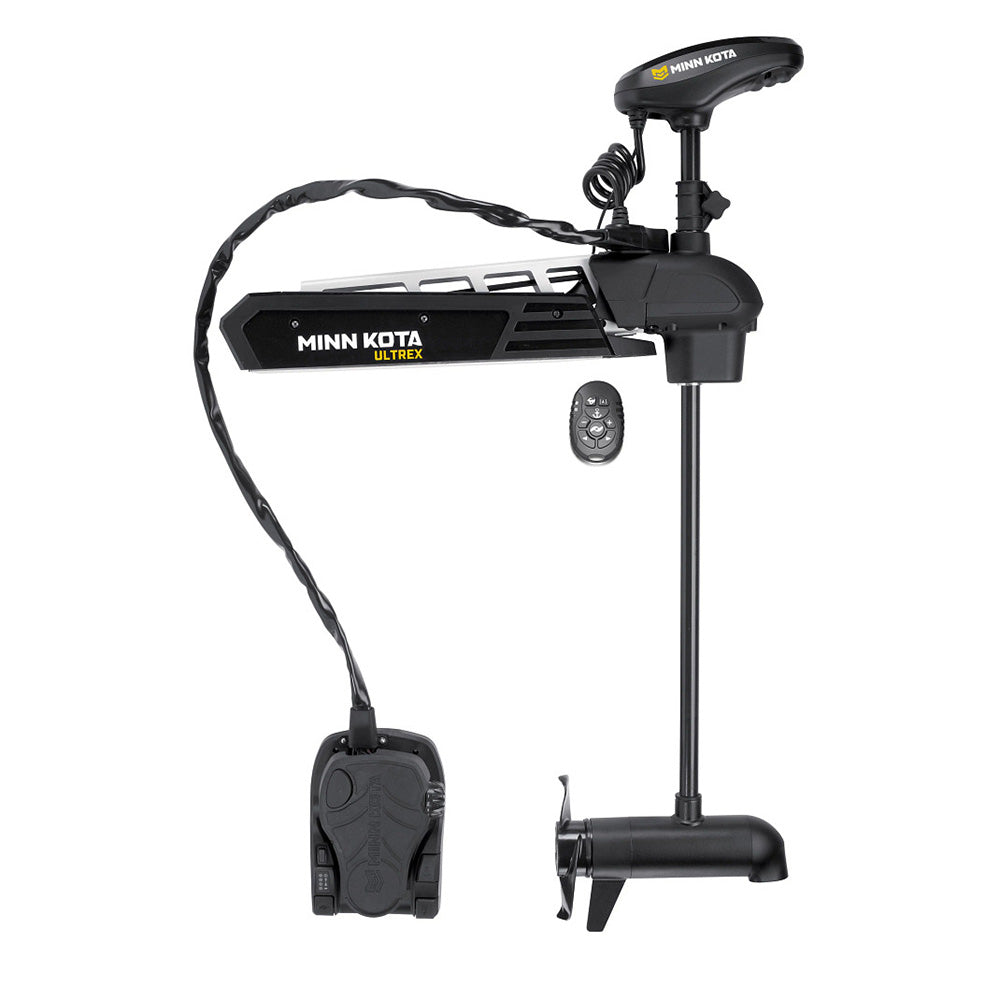

Minn Kota Ultrex 80 CHIRP Trolling Motor, 24V, 45" & Micro Remote – 1368890

The Minn Kota Ultrex 80, model 1368890, pairs power-assisted cable steering with GPS boat control and built-in Dual Spectrum CHIRP sonar. This freshwater bow-mount motor delivers 80 lb of thrust on 24V power and has a 45-inch shaft. The included heel-toe foot pedal and Micro Remote give you control options while fishing.

Steering and GPS Control

• Power Steering: Power-assisted foot-pedal control for responsive steering.
• Steering Lock: The motor head stays pointed in its selected direction when you remove your foot from the pedal.
• Spot-Lock: GPS-based position holding, with activation available from the foot pedal.
• Spot-Lock Jog: Use the included heading sensor to shift the target position five feet in any direction.
• AutoPilot: Listed as supported.
• Control options: Corded heel-toe/cable foot pedal and wireless Micro Remote are included.

Connected-System Features

The Advanced GPS Trolling System supports One-Boat Network integration with compatible Humminbird equipment. The supplied overview describes path recording, contour following, navigation to saved locations, and speed and steering control. These functions depend on the connected fishfinder, mapping, software, and network setup; do not assume every function is accessible from the Micro Remote alone.

Mobile app compatibility is listed for supported Apple and Android devices, with controls for speed, steering, Spot-Lock, and AutoPilot, plus software updates. Confirm device compatibility and any required connection accessories before installation.

Built-In Dual Spectrum CHIRP Sonar

The integrated Humminbird sonar routes the transducer and wiring through the motor shaft to keep them concealed and protected. Confirm fishfinder compatibility and connection requirements for your setup. The built-in sonar identified for this model is Dual Spectrum CHIRP.

Lift-Assist and Battery Management

• Lift-Assist: A stainless-steel, nitrogen gas-charged spring reduces the effort of manually stowing and deploying the motor. The supplied description states that it cuts the effective lifting weight in half.
• Not automatic deployment: Lift-Assist does not provide automatic stow/deploy or power trim.
• Digital Maximizer: Variable-speed power management helps conserve battery charge. The supplied description advertises up to five times longer runtime; actual runtime depends on the battery setup and operating conditions.
• Battery meter: Included.
• Composite shaft: Covered by the manufacturer's stated lifetime shaft guarantee, subject to applicable terms.

Specifications

• Intended use: Freshwater.
• Maximum thrust: 80 lb.
• Voltage: 24V.
• Shaft length: 45 inches.
• Mount: Mono-arm bow mount.
• Motor style: Cable-steer with power steering.
• Speeds: Variable.
• Maximum current draw: 56 A.
• Propeller: Weedless Wedge 2, MKP-33.
• Built-in sonar: Dual Spectrum CHIRP.
• QUEST Series: No.
• Bowguard and CoPilot: Listed as unavailable.

What's Included

• Ultrex 80 lb motor with 45-inch shaft and built-in Dual Spectrum CHIRP.
• Corded foot pedal.
• Micro Remote and lanyard.
• Heading sensor.
• 30-foot Ethernet extension cable.
• Stabilizer.
• Hold-down strap.
• MKP-33 propeller.
• Mounting hardware.

Warranty and Documentation

The supplied specifications list a three-year motor warranty and a lifetime composite-shaft guarantee. Review manufacturer terms and exclusions.

View the Owner's Manual (PDF)

Product and Packaging Details

• Part number: 1368890.
• UPC: 029402049158.
• Box dimensions: 9 in. H × 18 in. W × 63 in. L.
• Packaged weight: 82 lb.
