Minn Kota X12 CMSI+ VX GPS/Fishfinder with Transducer, 12-inch

Sonar, mapping and boat control on a 12.1-inch display

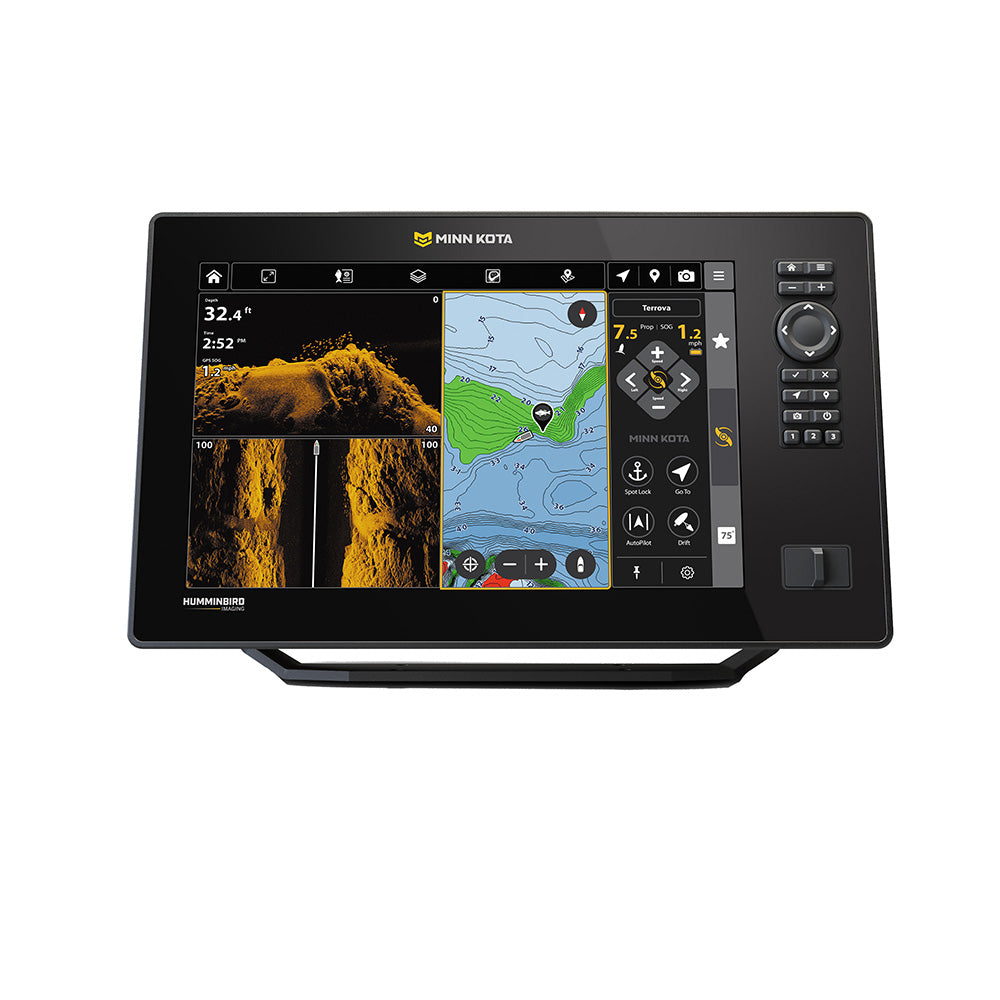

The Minn Kota X12 CMSI+ VX combines Humminbird Imaging, included Minn Kota Maps and a high-resolution display engineered for polarized eyewear. Use the Cross Touch interface by touchscreen or keypad to manage sonar and charts, then connect compatible Minn Kota equipment for integrated boat positioning.

Included equipment and installation

• X12 CMSI+ control head
• Power adapter
• Gimbal bracket
• XM 14 HW CMSI T transom-mount transducer

In-dash installations require an external GPS antenna for accurate positioning and navigation, sold separately. Live Sonar, Minn Kota Maps Premium, an accessory NMEA 2000 network and optional transducers are not standard inclusions. Automated boat-control features require compatible connected equipment.

Fishing and navigation features

• Draw and Navigate: Draw an on-screen course for a compatible trolling motor to follow.
• Intelligent Depth Control: Detects depth changes, provides shallow-water alerts and can engage Spot-Lock and deploy compatible shallow-water anchors when necessary.
• AutoChart Live: Map depth contours, bottom hardness and vegetation as you drive. Includes eight hours of built-in recording; compatible AutoChart Zero Line SD cards expand mapping capacity.
• Minn Kota Fishing App: Manage compatible equipment and scout, group, sort and edit waypoints.
• Media Tool: Capture screenshots and sonar imaging from 30 seconds in the past or up to two minutes into the future; view, transfer, edit and share through the app.
• Software updates: Download over Wi-Fi and distribute updates to compatible networked fishfinders, trolling motors and advanced sonar.
• Optional Live Sonar: Supports Forward, Down and Landscape modes with separately sold equipment.

Display and dimensions

• Part number: 412390-1VX
• Display: 12.1-inch diagonal color TFT, 1280H × 800V, 24-bit color
• Controls: Touchscreen and keypad; view preset keys and X-Press Menu System
• Dimensions with gimbal: 14.145 inches W × 8.911 inches H × 4.201 inches D
• Dimensions without gimbal: 14.145 inches W × 8.461 inches H × 3.53 inches D
• HDMI: Not supported

Sonar specifications

• Standard sonar: Dual Spectrum CHIRP, MEGA Down Imaging+ and MEGA Side Imaging+
• Coverage: 20°, 42°, 60° and two 86° beams at -10 dB
• Supported frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• Dual Spectrum CHIRP: Full 150–220 kHz; Narrow 180–240 kHz; Wide 140–200 kHz
• Imaging CHIRP: 455 kHz DI+ 420–520 kHz; Compact MEGA DI+ 1125–1225 kHz; 455 kHz SI+ 405–505 kHz; Compact MEGA SI+ 1100–1200 kHz
• Sonar depth: 600 ft with standard transducer; 3,500 ft with optional Airmar CHIRP equipment
• Down Imaging depth: 400 ft at 455 kHz; 200 ft at MEGA
• Side Imaging range, side-to-side: 800 ft at 455 kHz; 400 ft at MEGA. These figures describe total side-to-side range, not range on each side.
• Optional sonar: 50/83/200 kHz; Airmar High, High Wide, Medium, Medium Wide and Low
• Capture: Screen snapshots and sonar recording included
• Water data: Speed included; built-in temperature and temperature alarm; no temperature graph

GPS, mapping and connectivity

• GPS: Internal receiver, chartplotting and trackplotting
• Storage: 10,000 waypoints, 50 routes, 50 tracks/20,000 points
• Maps: Minn Kota Maps included; Minn Kota Maps Premium optional. The supplied cartography specification lists Humminbird/Navionics.
• Connections: NMEA 2000, Bluetooth, Ethernet and Wi-Fi
• Ethernet: Supports multiple compatible fishfinders and optional Live Sonar or radar; compatible with a 5-port Ethernet switch
• Compatibility: Minn Kota Talon anchors, radar and autopilot; AIS optional
• Heading sensor GPS: NMEA 2000 compatible; NMEA 0183 not compatible
• Customization: Custom digital readouts and view selections

Power and package details

• Memory slots: Dual microSD
• Power input: 10.8–20 VDC
• Power draw: 2.2 A
• Sonar output: 8,000 watts peak-to-peak; 1,000 watts RMS
• Warranty: 2-year limited warranty, extended to 3 years with product registration
• Box dimensions: 9 inches H × 13 inches W × 20 inches L
• Listed shipping weight: 15.2 lb
• UPC: 082324061905
