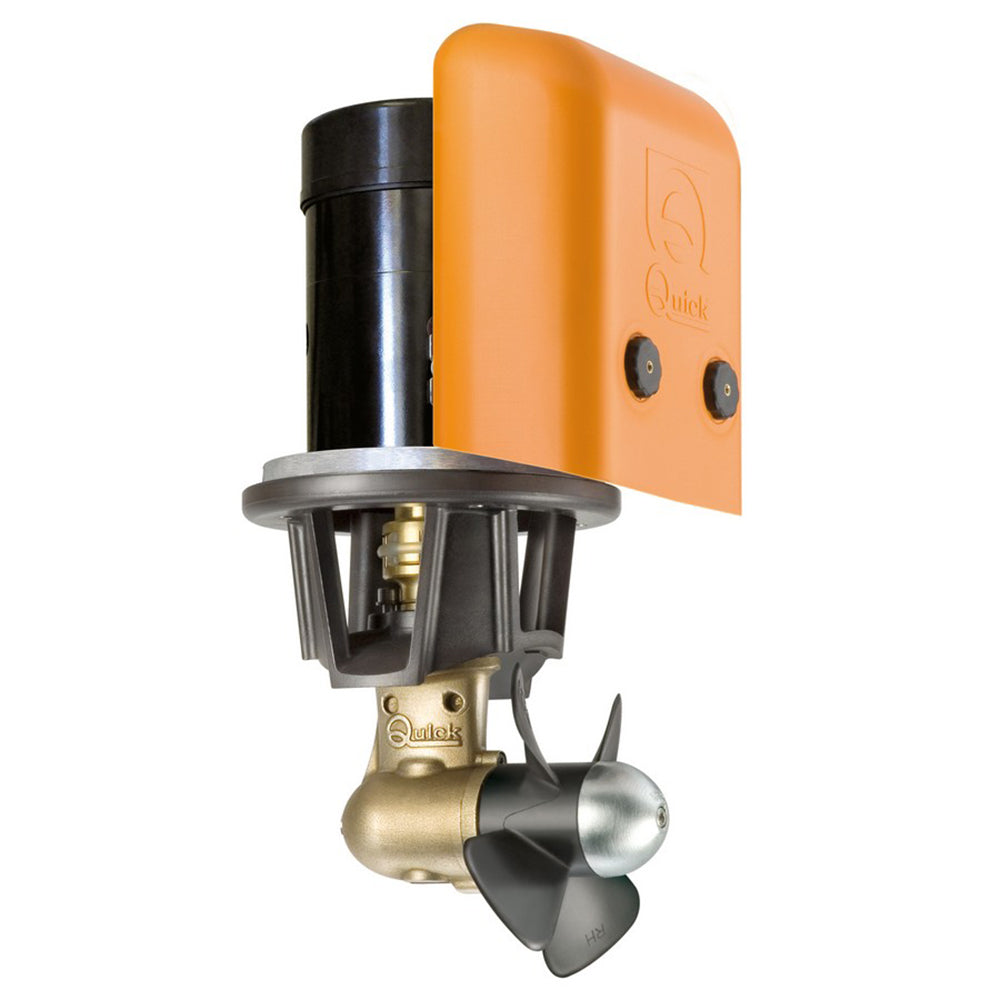

Quick BTQ 140-40 Bow Thruster, 40 kgf, 12V, 2.2 kW | FGBT14040120T00

The Quick BTQ 140-40 bow thruster provides 40 kgf of thrust with a 12V, 2.2 kW motor. Listed for boats from 23 to 29 feet, this D140 model features a hydrodynamic bronze gearleg and an elastic joint between the motor and gearbox.

Features

• Gearbox designed for consistent propeller behavior in either direction
• Hydrodynamic bronze gearleg designed to minimize turbulence
• Sealed-for-life gearbox lubrication
• Easily replaceable aluminum anode protection
• Propeller secured independently of the anode to help prevent loss if the anode corrodes completely
• Quick elastic joint designed to optimize motor-to-gearbox alignment and reduce operating impulses

Specifications

• Model: BTQ 140-40
• Part number: FGBT14040120T00
• Thrust: 40 kgf
• Voltage: 12V
• Motor power: 2.2 kW

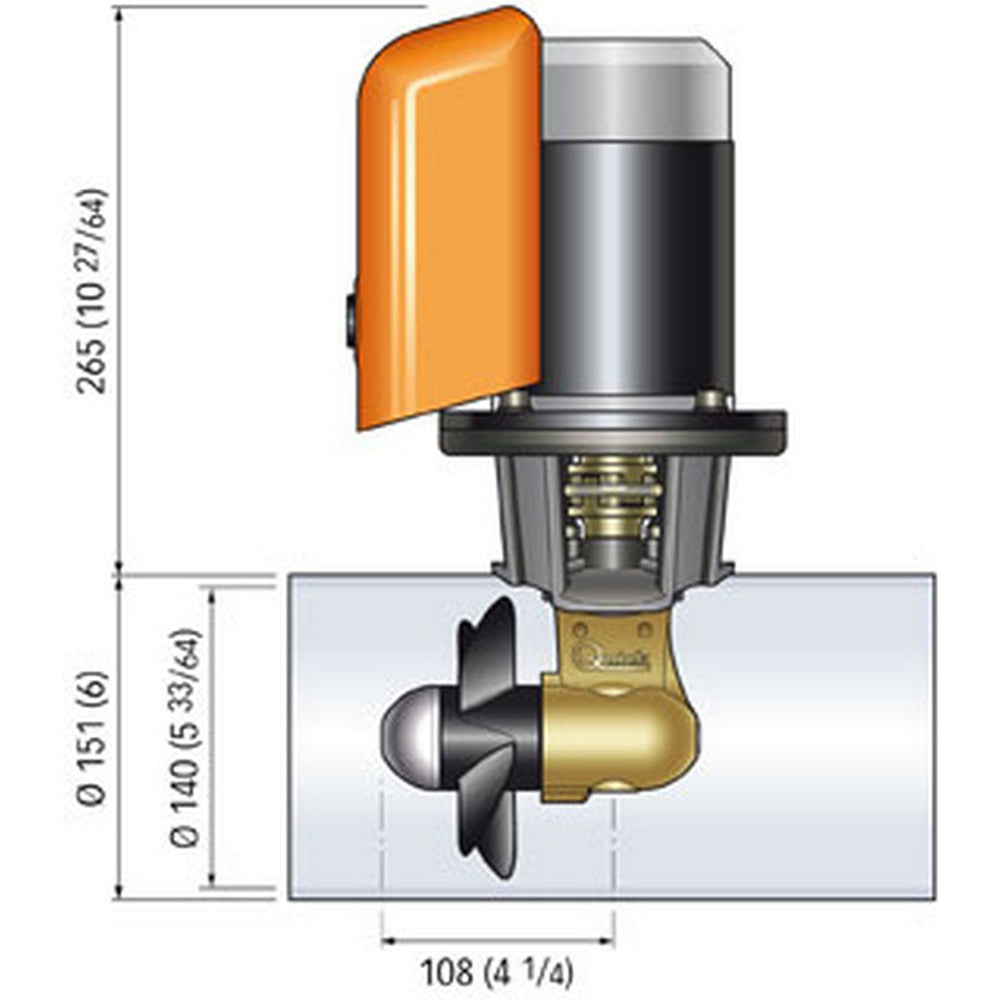

• Size designation: D140
• Listed boat size: 23–29 feet

Control and Safety System

When used with the TMS remote circuit breaker system and TDC control panels or TSC emergency mushroom panels, power to the motor can be switched off remotely in the event of relay failure. Overheating protection is managed by software in the touch or joystick panel.

Confirm the thruster's suitability and required control and safety components for your boat before installation.
