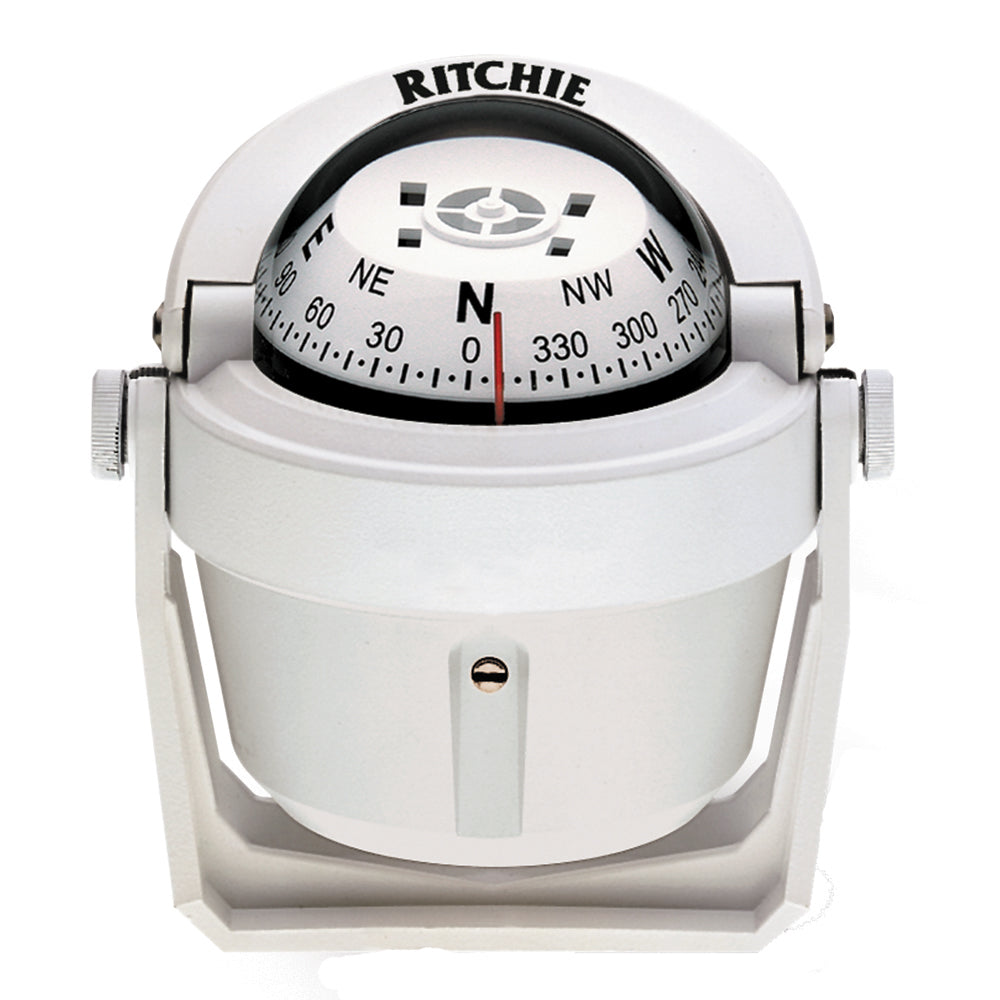

Ritchie B-51W Explorer Compass - Bracket Mount - White [B-51W]

The Ritchie B-51W Explorer is a white bracket-mount compass with a 2-3/4-inch (70 mm) direct-reading dial and internal green night illumination. Its bracket and thumbscrews allow adjustment and removal, while a movable sun shield helps shade the dial.

Features

• Front-reading dial with lubber lines.
• Built-in compensators for adjusting deviation.
• Matched sapphire jewel and hardened steel pivot dial movement.
• DirectiveForce magnets for fast heading lock-on.
• High-temperature composite construction for an extended operating range.
• 100% repairable.
• Exclusive 5-year Ritchie warranty.

Lighting

12V lighting is standard, with a 24V lighting option available. Some custom-built OEM models may have different lighting.

Shipping information

• Approximate shipping weight stated in the supplied description: 1 lb (454 g).

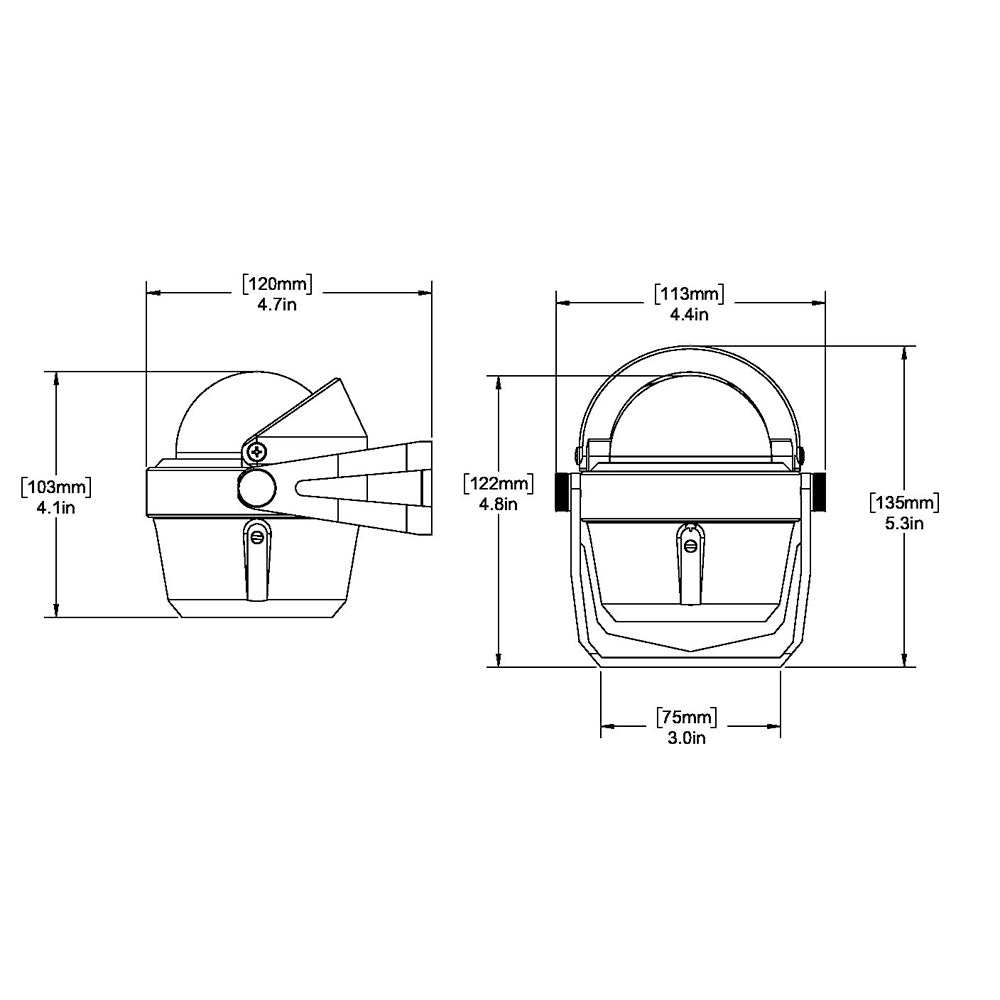

• Box dimensions: 5 inches H × 6 inches W × 6 inches L.
• The supplied box specifications separately list a weight of 0.9 lb.
• UPC: 010342160515.

Documentation

Quick Guide (pdf)
Owner's Manual (pdf)
