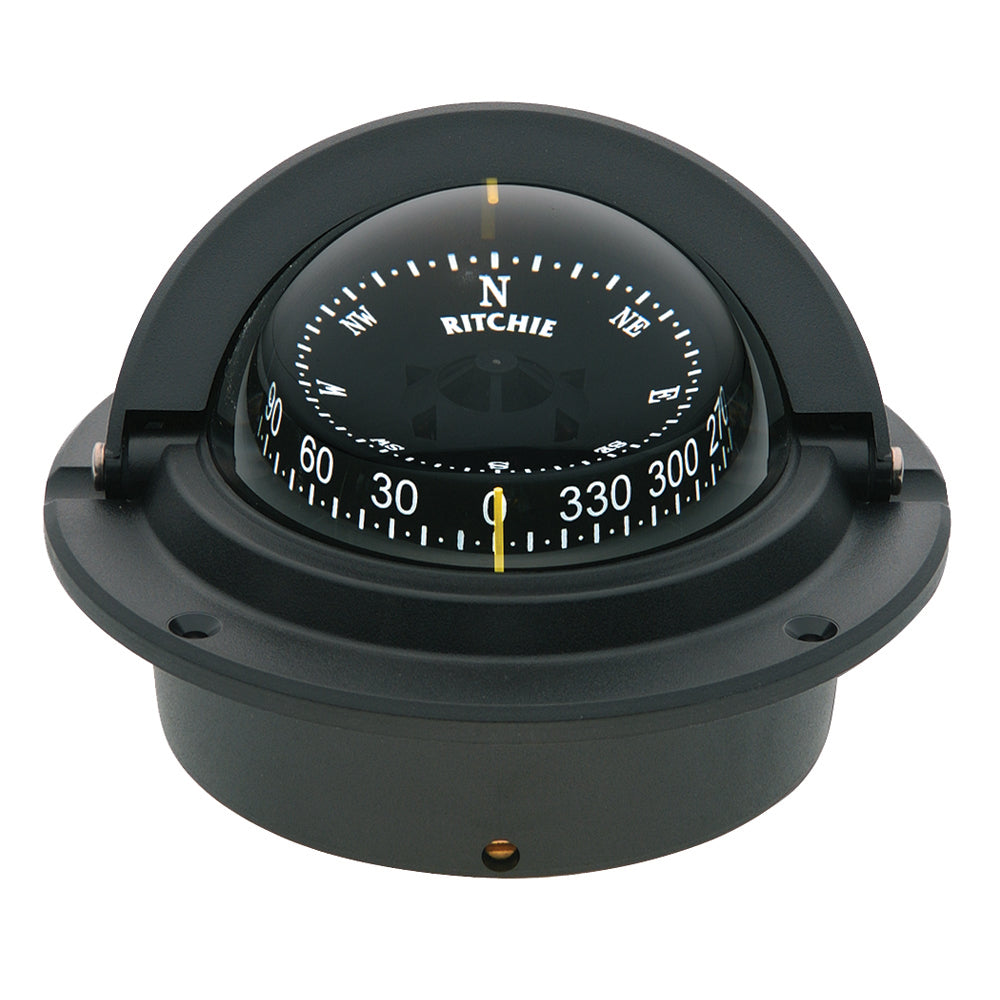

Ritchie F-83 Voyager 3-Inch CombiDamp Flush Compass, Black

The Ritchie F-83 Voyager is a black flush-mount compass with a 3-inch (76 mm) CombiDamp dial offering both reading styles. Green NiteVu illumination supports nighttime reading, and a movable sun shield helps shade the dial.

Navigation and construction

• Built-in compensators for deviation adjustment.
• Sapphire-jewel and hardened-steel pivot dial movement.
• DirectiveForce magnets for fast heading lock-on.
• Lubber lines and backlighting.
• High-temperature composite construction for an extended operating range.
• Fully repairable, with a 5-year Ritchie warranty.

Lighting and installation

12V lighting is standard; 24V and 32V lighting options are available. This model uses two sets of lights. Review the model-specific installation documents before preparing the mounting surface.

Shipping details

Approximate shipping weight: 1 lb 8 oz (680 g). The box specification lists 6 inches H × 7 inches W × 9 inches L and 1.16 lb. UPC: 010342141002.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
