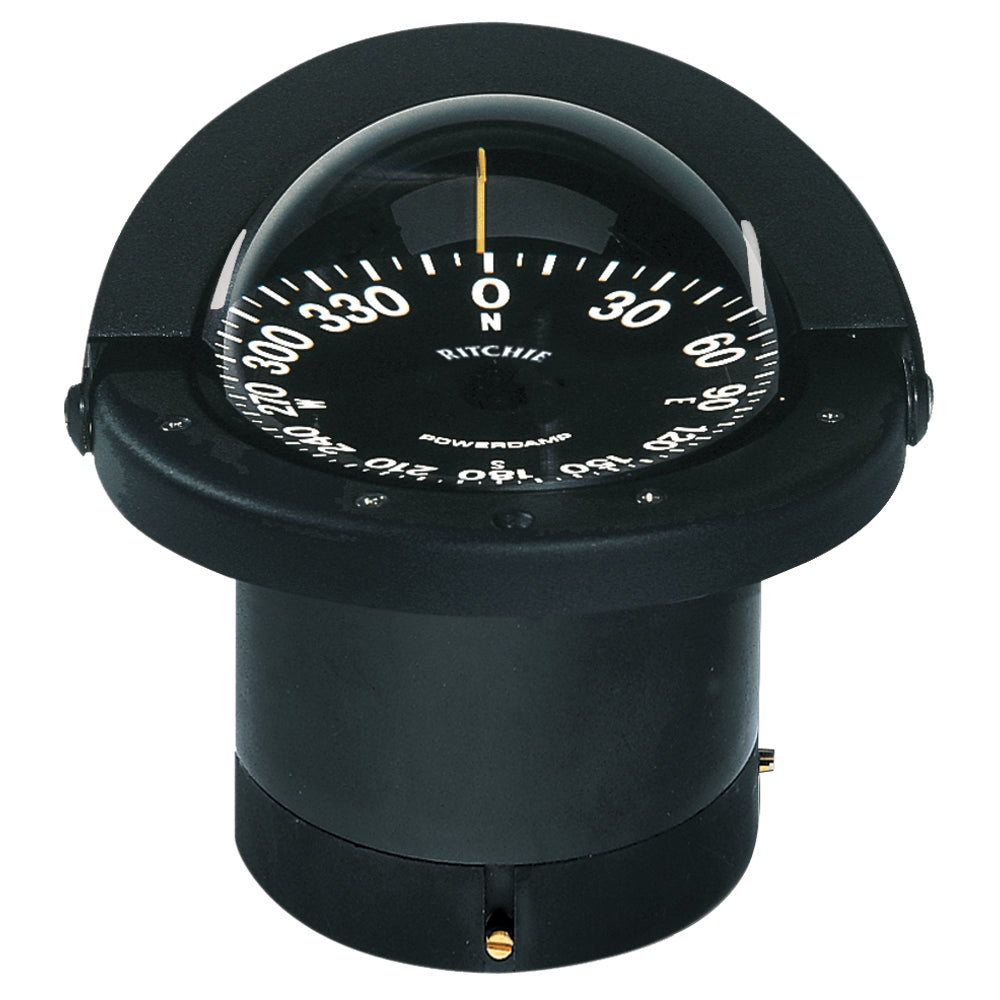

Ritchie FN-201 Navigator Compass - Flush Mount - Black [FN-201]

The Ritchie FN-201 Navigator is a black flush-mount compass with a 4.5-inch open-face dial, large numerals, and standard 12V green LED lighting.

Navigator Compass

Features:

• 4 1/2″ (115 mm) Open Face Dial with Large Numerals
• Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 cm) Mounting Hole
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• 12v Green LED lighting Standard
• Built-in Compensators to Easily Adjust for Deviation
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Construction for Extended Operating Range
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 10oz (1.19kg)

Notes:

Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Backlight: Yes
• Lubber Lines: Yes
• Read: Rear
• Mounting Style: Flush
• Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs
• UPC: 010342150004

Mounting dimension clarification needed: The supplied mounting-hole range is 4.75 inches (121 mm) to 5.125 inches, but the upper metric value is listed as 130 cm. These units conflict. Confirm the cutout dimensions in the manufacturer documentation before installation.
