Ritchie SS-1002W SuperSport Compass - Flush Mount - White [SS-1002W]

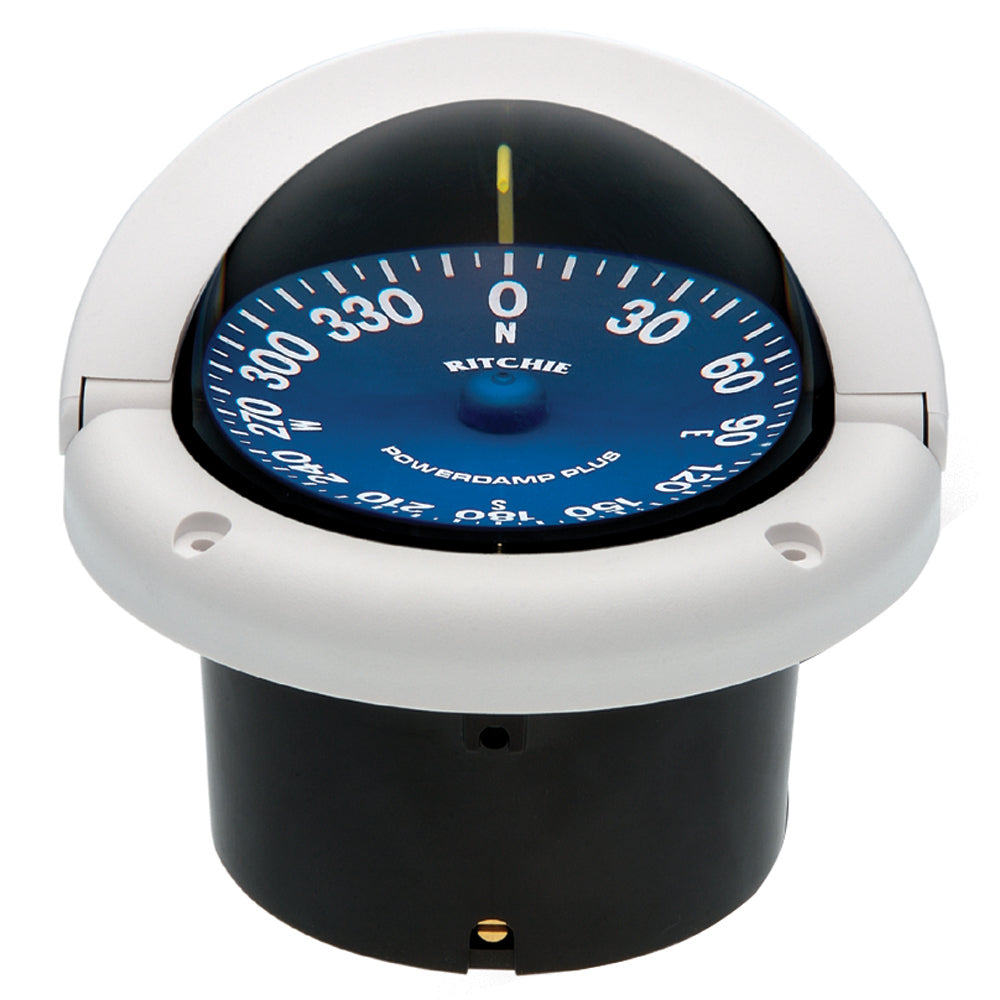

The Ritchie SS-1002W SuperSport is a white flush-mount compass with a 3-3/4-inch (96 mm) high-visibility blue PowerDamp Plus open-face dial and extra-large white numerals. It fits a 4-inch (10.16 cm) mounting hole and includes 12V green LED lighting built into its movable sun shield.

Dial performance

Developed for and tested on offshore race boats, the SuperSport Series uses a PowerDamp dial skirt to help prevent oscillation. Larger DirectiveForce magnets provide quick heading lock-on, while extra-large steel pivots and jewels support smooth, fast dial movement.

Features and installation

• Built-in compensators for adjusting deviation.
• Rear-reading dial with lubber lines.
• Movable sun shield with built-in backlighting.
• 6-inch adapter rings are available separately. The source also lists “15.24” without units; confirm adapter fit with the manufacturer.
• 100% repairable.
• Exclusive 5-year Ritchie warranty.

Lighting options

12V green LED lighting is standard. Optional 24V and 32V lighting versions are available. Some custom-built OEM models may have different lighting.

Packaged specifications

• Box dimensions: 5 inches H × 6 inches W × 6 inches L
• Packaged weight: 1.88 lb
• UPC: 010342138293

Documentation

Quick Guide (pdf)
Owner's Manual (pdf)
