Ritchie SS-2000 SuperSport Compass, Black Flush Mount

A high-visibility compass developed for offshore race boats

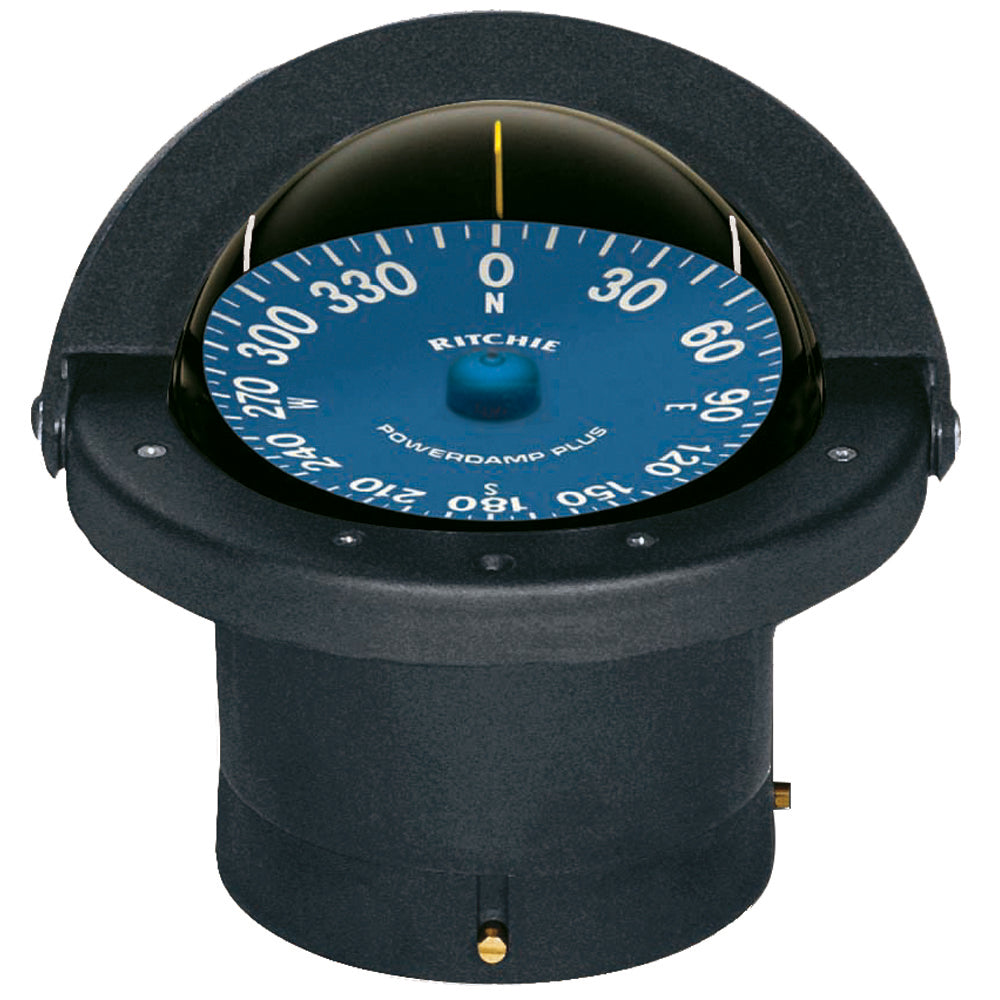

The Ritchie SS-2000 SuperSport Compass features a 4½-inch (115 mm) blue PowerDamp Plus dial with extra-large white numerals. Developed for and tested on offshore race boats, the SuperSport series combines a PowerDamp dial skirt to prevent oscillation, larger DirectiveForce magnets for quick heading lock-on, and extra-large steel pivots and jewels for smooth, fast action.

Check your mounting fit

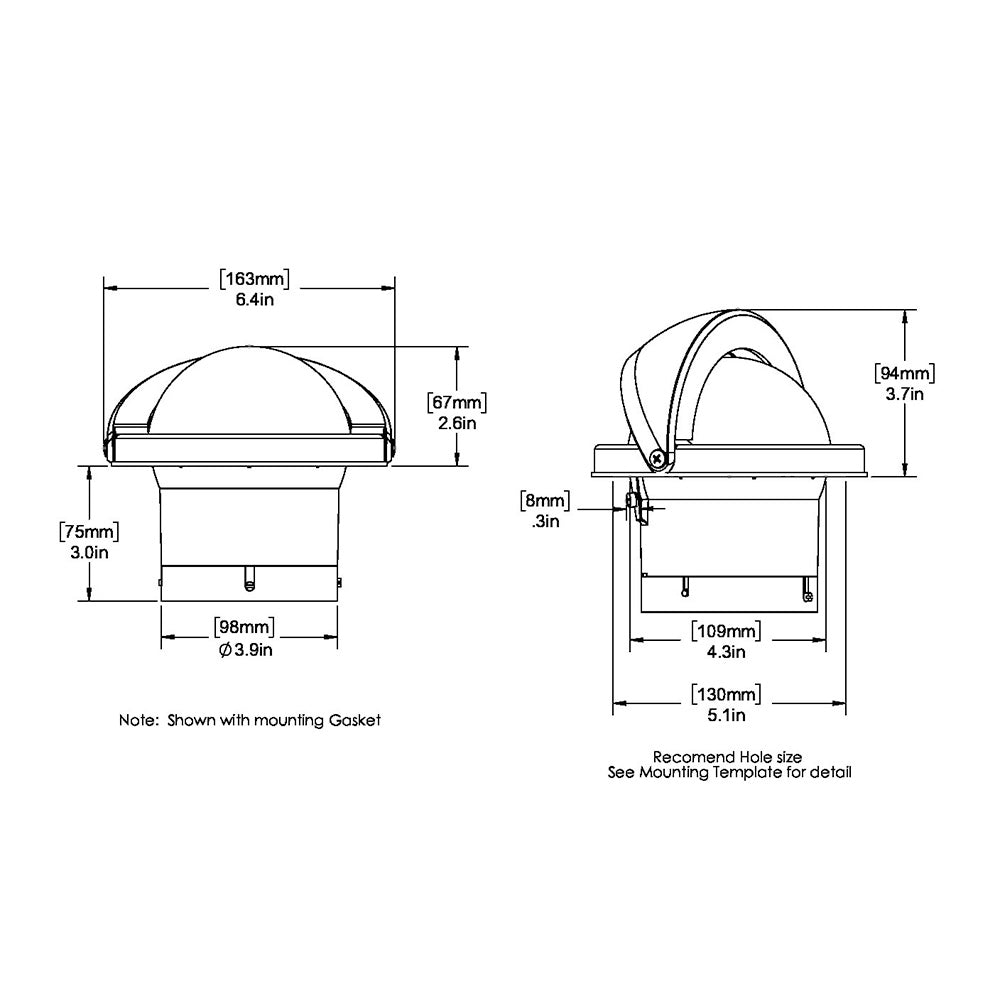

This black flush-mount compass fits a 4.75-inch (121 mm) to 5.125-inch (130 mm) mounting hole. The mounting-hole range differs from the dial diameter, so check your helm opening before ordering.

Heading control and visibility

• Internal gimbal systems: Support stability during adverse pitch and roll.
• Built-in compensators: Allow adjustment for deviation.
• 45° lubber lines: Provide additional heading references.
• Standard night lighting: 12V green LED illumination.
• Serviceability: 100% repairable.
• Warranty: 5-year Ritchie warranty.

Lighting options

12V lighting is standard. Optional 24V and 32V lighting configurations are available, rather than included as standard. Some custom-built OEM models may have different lighting.

Specifications

• Model: SS-2000 SuperSport
• Color: Black
• Dial: 4½-inch (115 mm) PowerDamp Plus, blue with extra-large white numerals
• Mounting style: Flush
• Reading style: Rear
• Backlight and lubber lines: Yes
• Approximate shipping weight: Listed as 2 lb 10 oz (1.19 kg); the box specification lists 2.9 lb.
• Box dimensions: 7 inches H × 8 inches W × 8 inches L
• UPC: 010342150011

Documentation

Quick Guide (PDF)
Owner's Manual (PDF)
