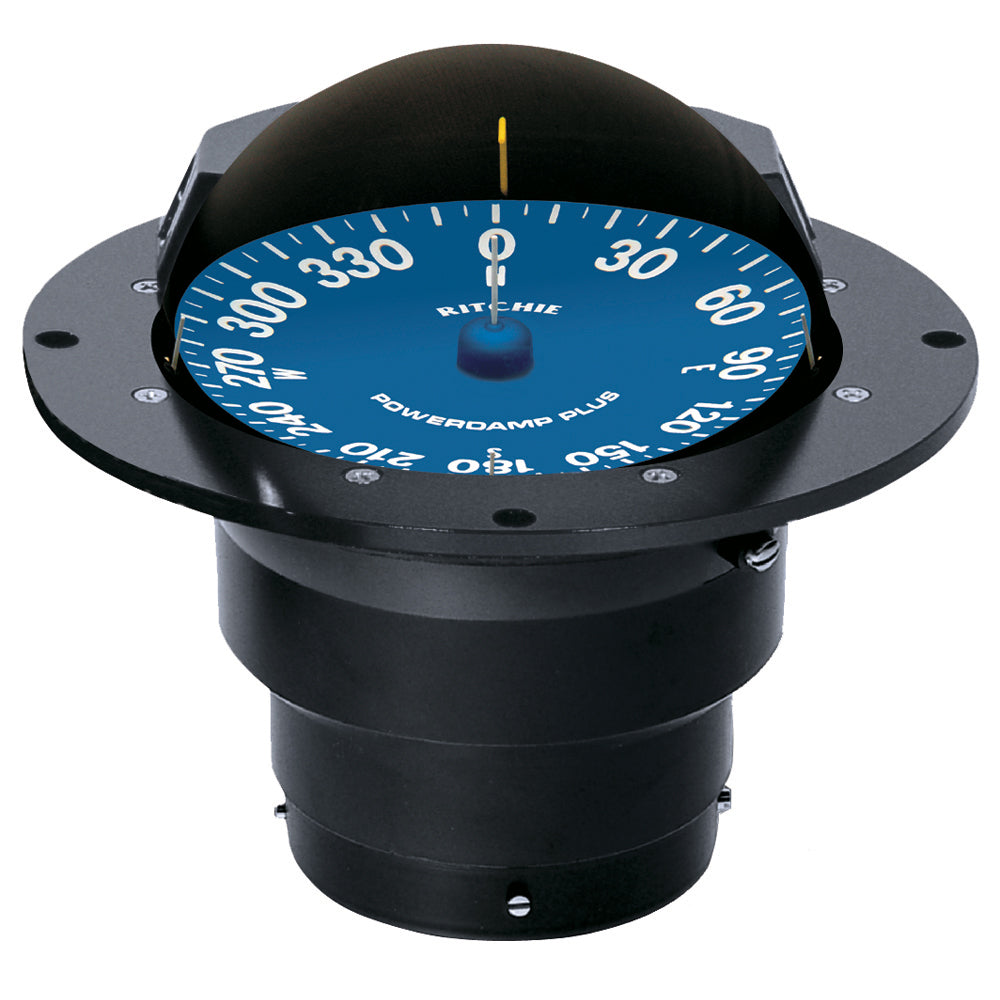

Ritchie SS-5000 SuperSport Compass, Black Flush Mount

A high-visibility compass developed for offshore race boats

The Ritchie SS-5000 SuperSport Compass combines a 5-inch (127 mm) blue open-face PowerDamp Plus dial with extra-large white numerals. Developed for and tested on offshore race boats, its dial system uses a PowerDamp skirt to prevent oscillation, larger DirectiveForce magnets for quick heading lock-on, and extra-large steel pivots and jewels for smooth, fast action.

Stability and readability at the helm

• Internal gimbal systems: Provide stability during adverse pitch and roll conditions.
• Built-in compensators: Allow adjustment for deviation.
• Night visibility: Standard 12V green LED lighting.
• Serviceability: 100% repairable.
• Warranty: 5-year Ritchie warranty.

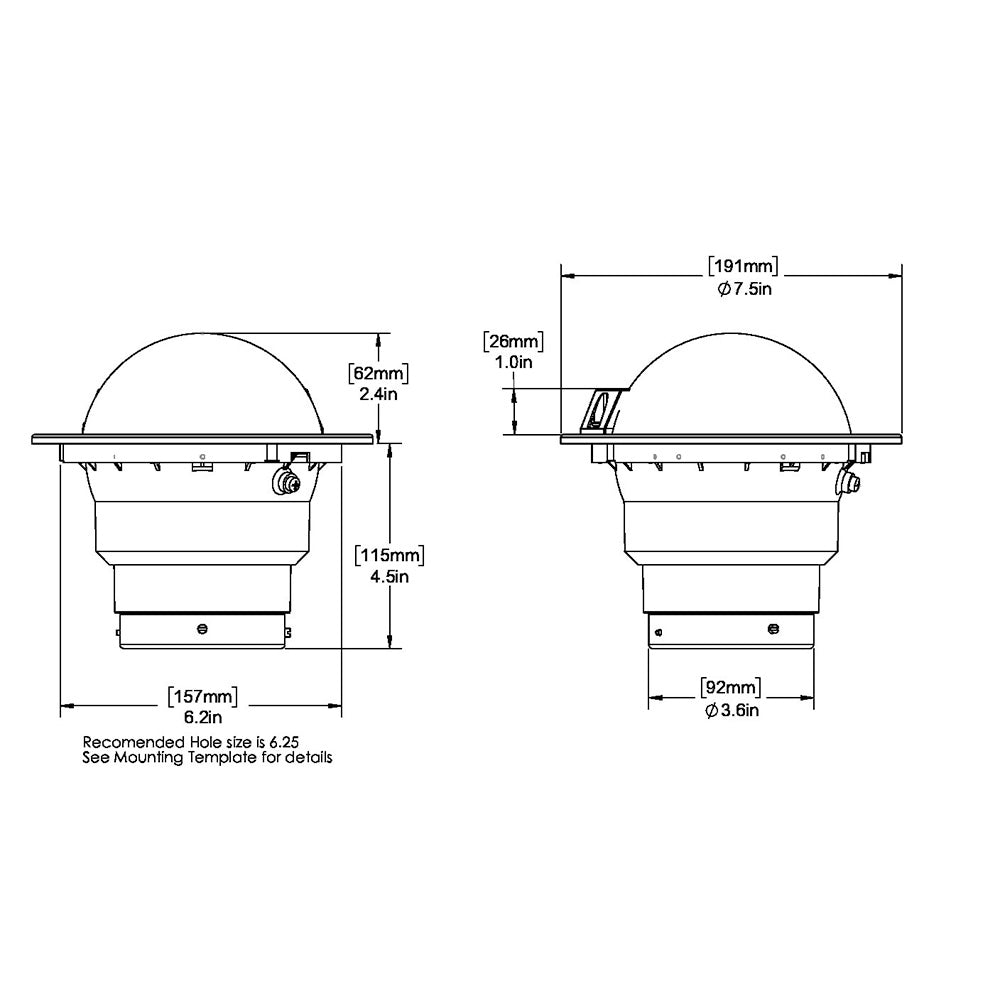

Check your installation fit

This black flush-mount model fits a 6¼-inch (15.88 cm) mounting hole. The cutout size differs from the 5-inch dial diameter, so check your helm space before ordering.

12V lighting is standard. Optional 24V and 32V lighting configurations are available and are not included as standard.

Specifications

• Model: SS-5000 SuperSport
• Color: Black
• Dial: 5-inch (127 mm) PowerDamp Plus, blue open face with extra-large white numerals
• Reading style: Rear
• Mounting: Flush
• Backlight: Yes
• Lubber lines: Yes
• Approximate shipping weight: 5 lb 12 oz (2.6 kg); box specification lists 5.7 lb.
• Box dimensions: 9 inches H × 9 inches W × 10 inches L
• UPC: 010342050410

Documentation

Quick Guide (PDF)
Owner's Manual (PDF)
