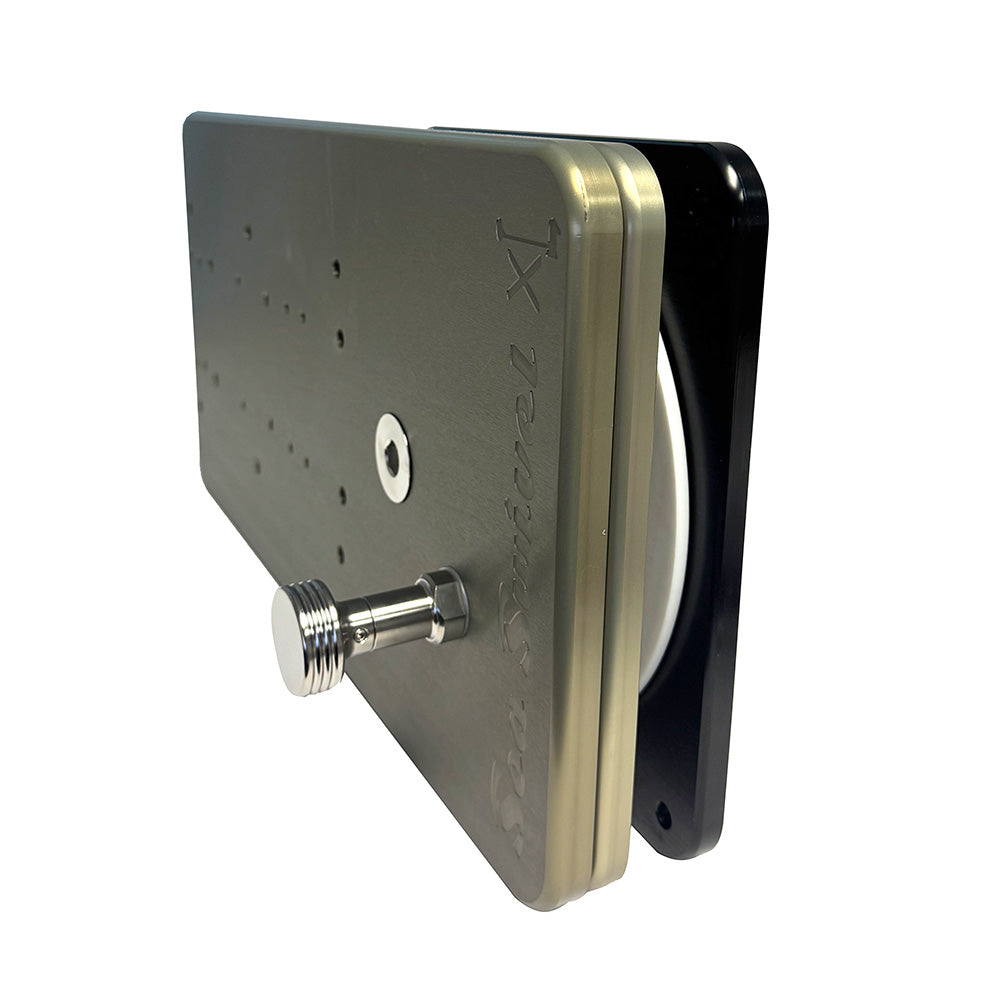

Sea Swivel XL Trolling Motor Mount [SEA-HDM-TMM-XL]

The Sea Swivel XL is a rotating trolling motor mount designed for motors with shaft lengths of 100 inches and greater. It lets you pivot the motor into position when deployed and adjust its stowed position to match your boat's angle.

The XL model has a 10" x 10" mounting surface and a 10" x 10" backing plate. Compared with the standard model, the larger footprint distributes the load over a larger area of fiberglass.

A quick-release bracket is required for installation with a trolling motor.

Pre-drilled mounting compatibility

The supplied compatibility list includes the following motors and quick-release bracket patterns. Confirm the correct bracket and mounting pattern for your specific motor before installation.

• Minn Kota Ulterra and Terrova; RTA 54/62 quick-release bracket models, listed for 36V permanent-magnet motors.
• Minn Kota Instinct QUEST, Terrova QUEST and Ulterra QUEST; RTA 55/56 quick-release bracket models, listed for brushless/QUEST motors.
• Minn Kota RTA17 bracket pattern, listed for smaller 24V units.
• Garmin Kraken 24V/36V motors with listed shaft lengths from 48" to 110".
• Rhodan Marine large 6-bolt 36V mount for listed 84", 96", 108" and 120" models.
• Rhodan Gen 5 motors up to 120".
• Rhodan Marine smaller 4-bolt 24V mount.
• Power-Pole MOVE PV 24V/36V and MOVE PV offshore.

Specifications

• Model: XL.
• Part number: SEA-HDM-TMM-XL.
• Mounting surface: 10" x 10".
• Backing plate: 10" x 10".

Fit note: The XL is described as designed for shafts 100" and greater, while the supplied pre-drilled compatibility list also names shorter-shaft motors. A matching bolt pattern alone does not confirm the appropriate mount size for your boat and motor; confirm your specific application with the manufacturer.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
