SI-TEX SVS-760 7.5" Dual-Frequency Sounder, No Transducer - 600W

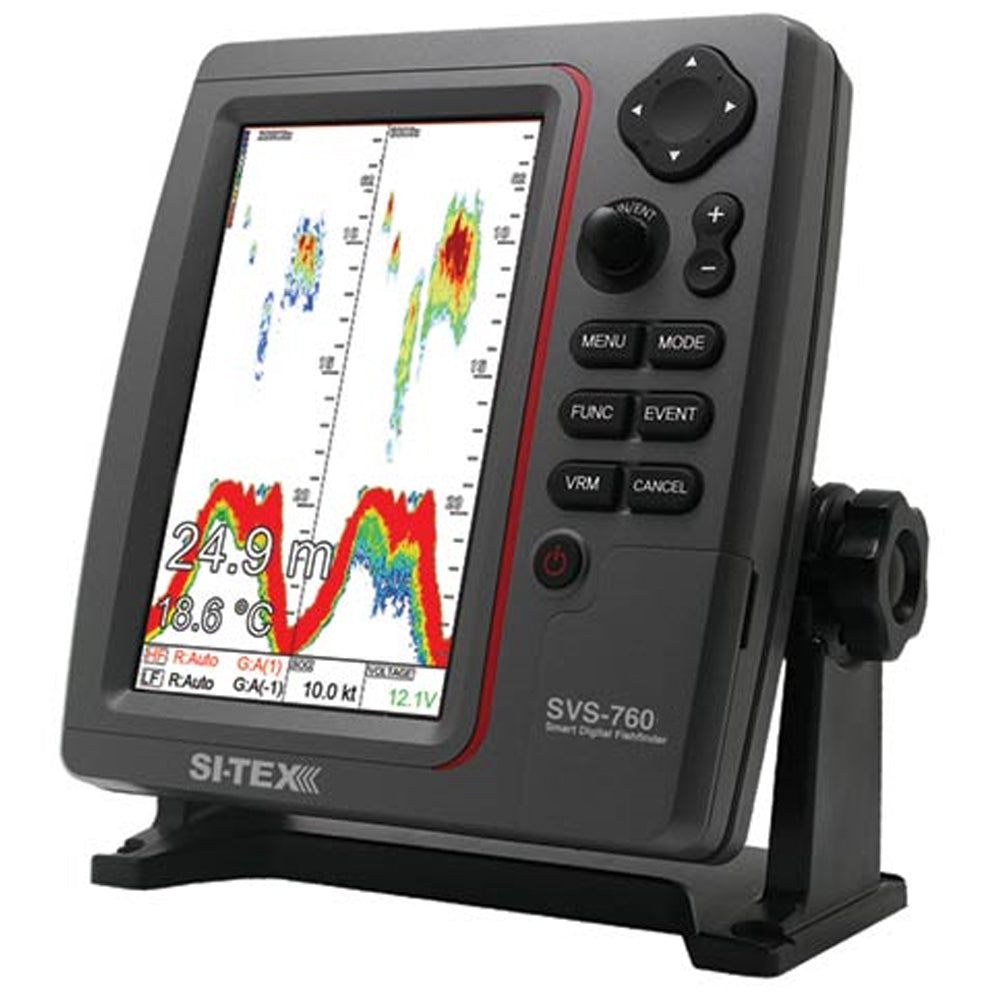

The SI-TEX SVS-760 is a 600W dual-frequency sounder with a vertically oriented, sunlight-viewable 7.5-inch color LCD. Its 50/200 kHz sonar capability helps present bottom contours, composition and fish targets, while clearly marked controls keep adjustments straightforward on the water.

Transducer not included. A compatible transducer is required for sonar operation and must be purchased separately.

Sonar and display

• 7.5-inch high-resolution color LCD with a vertical layout.
• Dual-frequency operation: 50/200 kHz.
• Sonar output: 600W.
• Selectable depth ranges down to 4,800 ft. Actual sounding performance depends on the transducer, installation and water conditions; the range setting is not a guaranteed operating depth.
• Digital sounding technology reduces unwanted noise for clearer seabed and fish-target images.
• High-speed processor supports smooth zooming and target presentation, including at higher boat speeds.

Fishfinding controls

• White Line/Black Line Bottom Discriminator helps distinguish bottom-hugging fish from the seabed.
• Automatic or manual gain and range selection.
• Bottom Lock, Bottom Zoom and A-Scope views.
• Selectable fish symbols based on marked target size and type.
• Depth, fish-school and water-temperature alarms. Temperature functions require suitable temperature data.

Data recording

An SD card slot supports information backup and data recording for important fishing spots.

Product and packaging details

• Model: SVS-760.
• Transducer included: No.
• Box dimensions: 9 inches H × 9 inches W × 13 inches L.
• Packaged weight: 7.3 lb.
• UPC: 010407320762.

Product resources

Owner's Manual (PDF)
