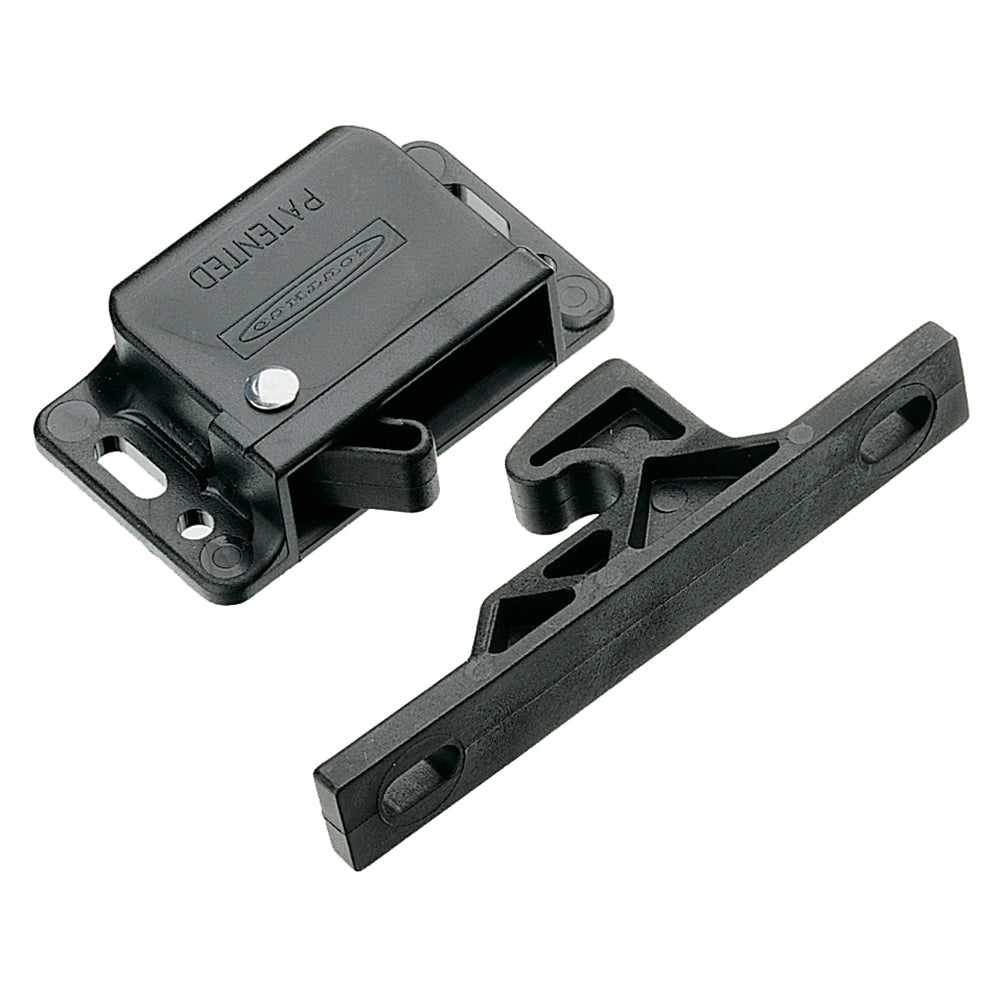

Southco C3-810 Grabber Catch Latch, Side Mount, Black, 44 N (10 lbf)

The Southco C3-810 Grabber Catch Latch combines spring-loaded over-center latching with a black side-mount design. Each assembly includes a catch and keeper, with a listed pull-up force of 44 N (10 lbf).

Features and specifications

• Latching action: Spring-loaded over-center
• Mounting: Side mount
• Pull-up force: 44 N (10 lbf)
• Material: PC/ABS
• Finish: Black
• Included: Catch and keeper
• Model: C3-810

Performance details

• Operating temperature range: -30°C (-20°F) to 60°C (140°F)
• Flammability rating: UL94-HB

Installation notes

Orient the keeper to the latch with the arrow on the keeper pointing toward the cam. Mount to the door and adjust for smooth latching.

The supplied installation note states: “Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9).” Units are not specified in the supplied copy; confirm this dimension against the manufacturer's installation documentation before mounting.
