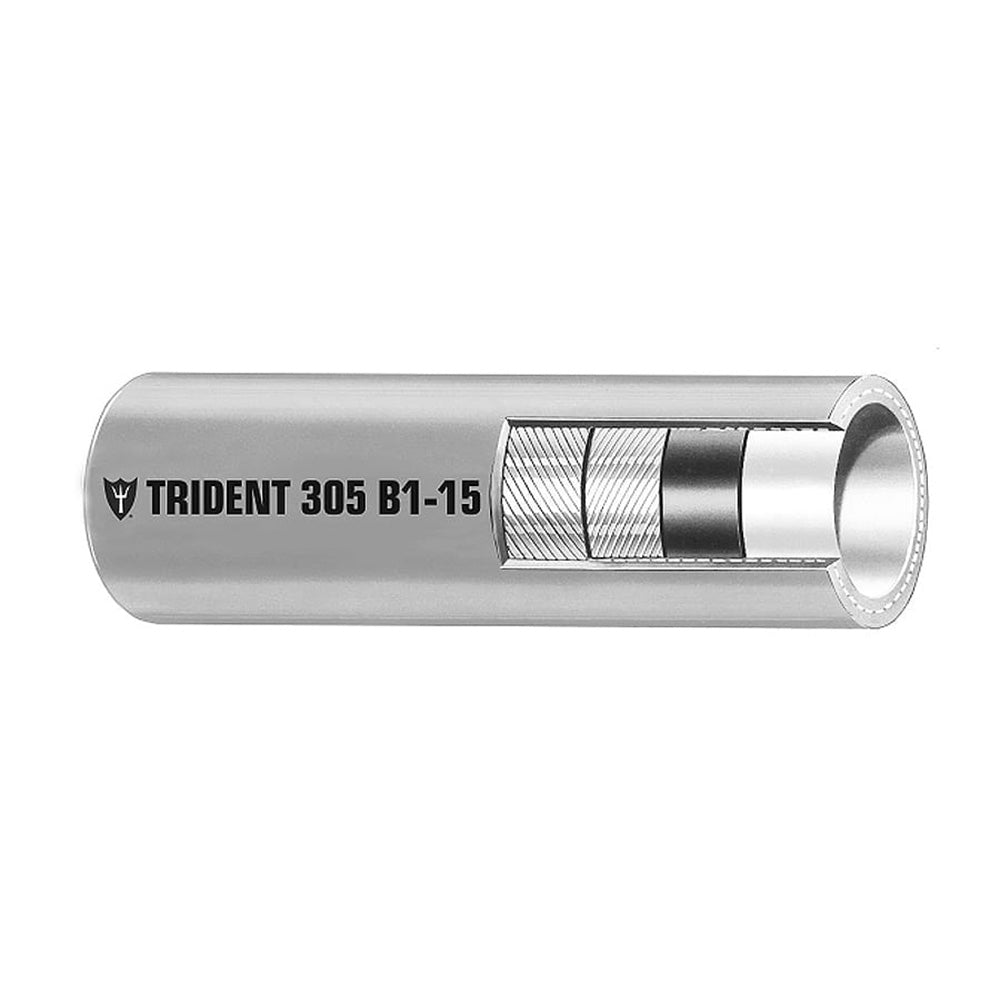

Trident Marine 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot [305-0386-FT]

Trident Marine 305-0386-FT is a gray, 3/8-inch barrier-lined outboard fuel hose sold by the foot. Its internal fluoroplastic barrier keeps fuel from direct contact with the rubber tube, reducing fuel permeation and helping prevent ethanol-related rubber degradation that can send particles into the engine.

Features and applications

• Resistance to fuel permeation, aging, heat, cold, and ozone
• Flexible, rope-like bendability and strong fitting retention
• For gasoline, including ethanol blends up to E85, and diesel, including biodiesel blends up to 100%
• Marine fuel distribution, return, vent, and transfer applications
• Application information includes gasoline, alcohol blends (CE-10), diesel, and biodiesel
• Sold by the foot

Construction

• Tube: Fluoroplastic internal barrier
• Cover: Gray CPE rubber
• Reinforcement: Two spiral polyester plies
• Temperature range: -20°F to 212°F (-28°C to 100°C)

Specifications

• Part number: 305-0386-FT
• Inside diameter: 3/8 inch (9.50 mm)
• Outside diameter: 0.588 inch (14.9 mm)
• Burst pressure: 175 psi (1.21 MPa)
• Working pressure: 35 psi (0.24 MPa)
• Bend radius: 4 inches (101.6 mm)
• Hose weight: 10.5 lb per 100 feet (0.156 kg/m)
• Permeation rate: 5.0 g/m²/24 hours (CE10), compared with the listed standard of 15 g/m²/24 hours
• Box dimensions: 1 inch high × 1 inch wide × 12 inches long
• Packaged weight: 0.13 lb

Listed certifications and standards

• EPA certified and covered by a CARB Executive Order for low-permeation Type B1-15
• NMMA Type Accepted and CE certified
• The 305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, and USCG Type B1-15

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
