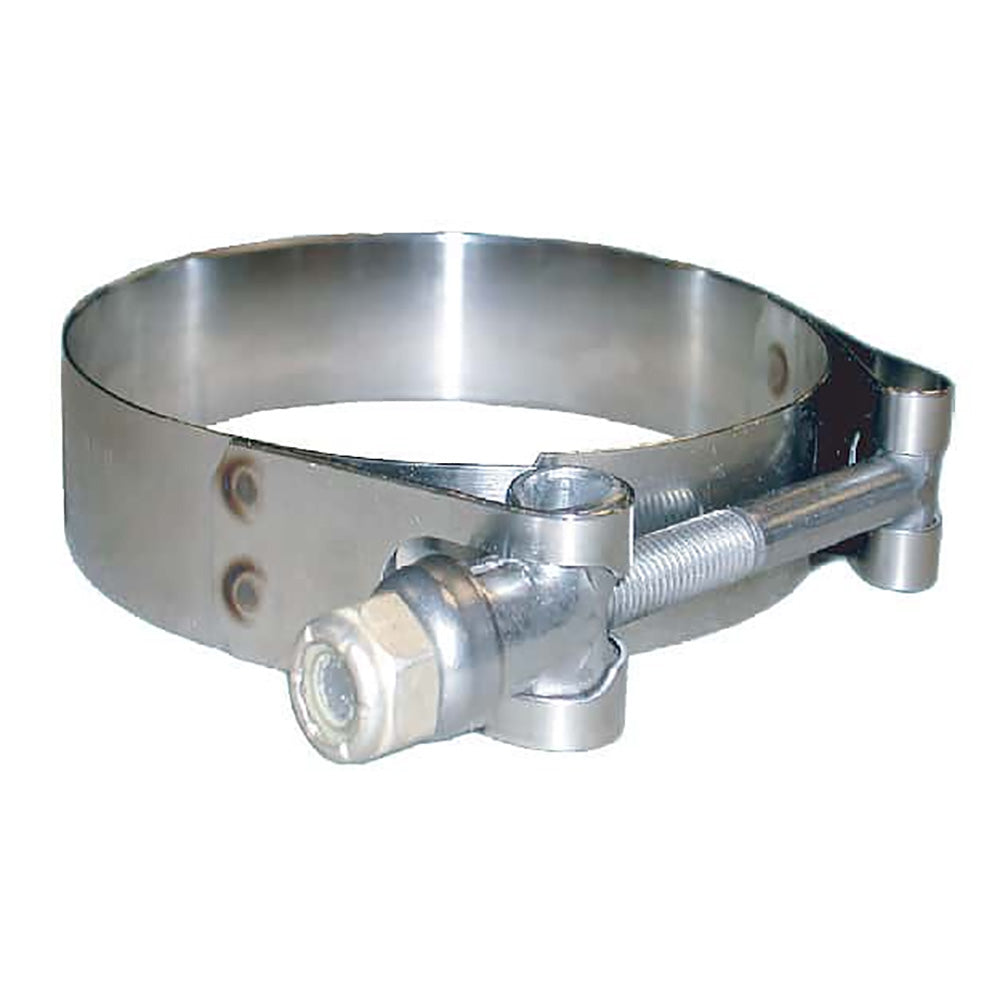

Trident Marine T-Bolt Hose Clamp, 316 SS Band, 10.43"–11" Range – 720-10000L

The Trident Marine 720-10000L T-Bolt Clamp is designed for secure hose connections in demanding marine installations. Its 3/4-inch-wide band provides a broad contact area, with a listed hose outside-diameter range of 10.43–11 inches.

The band and housing are 316 stainless steel, while the T-bolt and nut use 18-8 stainless steel with a nylon insert. Check the hose's actual outside diameter before ordering rather than choosing a clamp by hose inside diameter alone.

Features

• T-bolt design: Provides a strong, secure clamping connection.
• Wide band: 3/4 in. (19 mm) for greater hose contact area.
• 316 stainless steel band and housing: Marine-oriented construction.
• 18-8 stainless steel hardware: T-bolt and nut with nylon insert.

Product Specifications

• Brand: Trident Marine
• Part number: 720-10000L
• Clamp type: T-bolt hose clamp
• Clamping / hose outside-diameter range: 10.43–11 in.
• Listed hose inside diameter: 10 in.
• Band width: 3/4 in. (19 mm)
• Band and housing material: 316 stainless steel
• T-bolt and nut material: 18-8 stainless steel with nylon insert
• UPC: 704917010625

Installation Considerations

Wet exhaust: The supplied product guidance recommends two clamps at each end of a wet exhaust installation. Follow the hose and equipment manufacturers' installation requirements and confirm there is adequate space for the recommended clamps.

Verify the hose's outside diameter and connection requirements before purchase. The listed 10-inch hose inside diameter is not the clamp's adjustment range.

Packaging Information

• Box dimensions: 1 in. H × 11 in. W × 11 in. L
• Packaged weight: 0.4 lb
