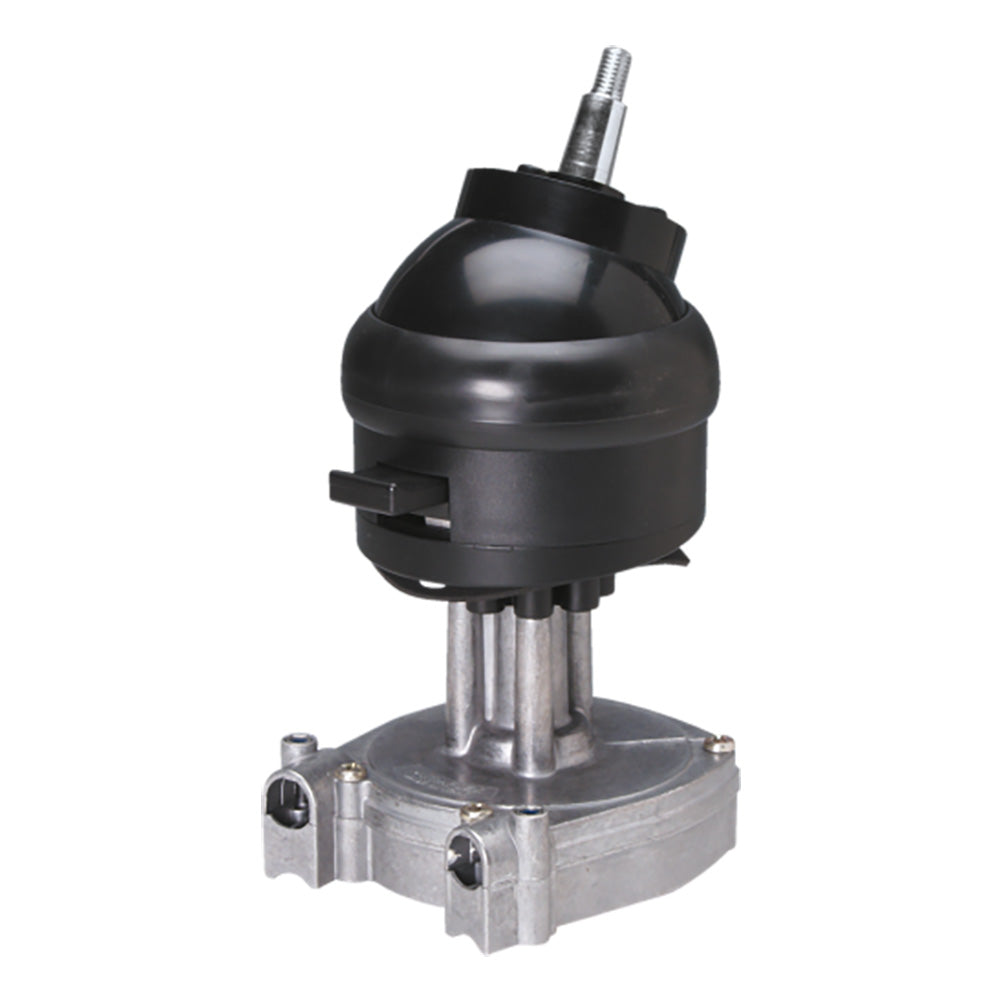

Uflex T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately [T83FC]

The Uflex T83FC Zero Torq Rotary Helm is a single-cable steering helm with a planetary gear design, fast-connect installation, and approximately 3.8 steering wheel turns lock to lock.

The X52 tilt mechanism is sold separately. The tilt configuration offers a 48° range with five locking positions, and the tilt device eliminates under-dash movement.

Features

• Fast-connect design for simple installation
• Standard 3/4" tapered stainless steel shaft
• All stainless steel cable output ends
• Corrosion-resistant materials
• Optional steering wheel and engine connection kits
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

Tilt Mechanism Compatibility

The separately sold X52 tilt mechanism fits Ultraflex tilt-mount rotary and rack-and-pinion steering helms, as well as Ultraflex tilt-mount hydraulic pumps, except SilverSteer™ and MasterDrive™ steering systems.

Specifications

• Model: T83FC
• Steering type: Single-cable rotary helm
• M66 steering cable stroke: 228mm (9")
• Lock-to-lock steering wheel turns: Approximately 3.8
• Maximum dash depth: 25.4mm (1")
• Maximum steering wheel diameter: 406mm (16")
• Minimum steering cable bend radius: 200mm (7.9")
• Tilt range: 48° with five locking positions, using the separately sold X52 mechanism

Application and Safety Notes

The supplied application warning identifies the T83NRFC steering system: it must not be used on boats equipped with engines that exceed the boat's maximum horsepower rating. For boats faster than 50 mph, Uflex recommends hydraulic steering systems.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
