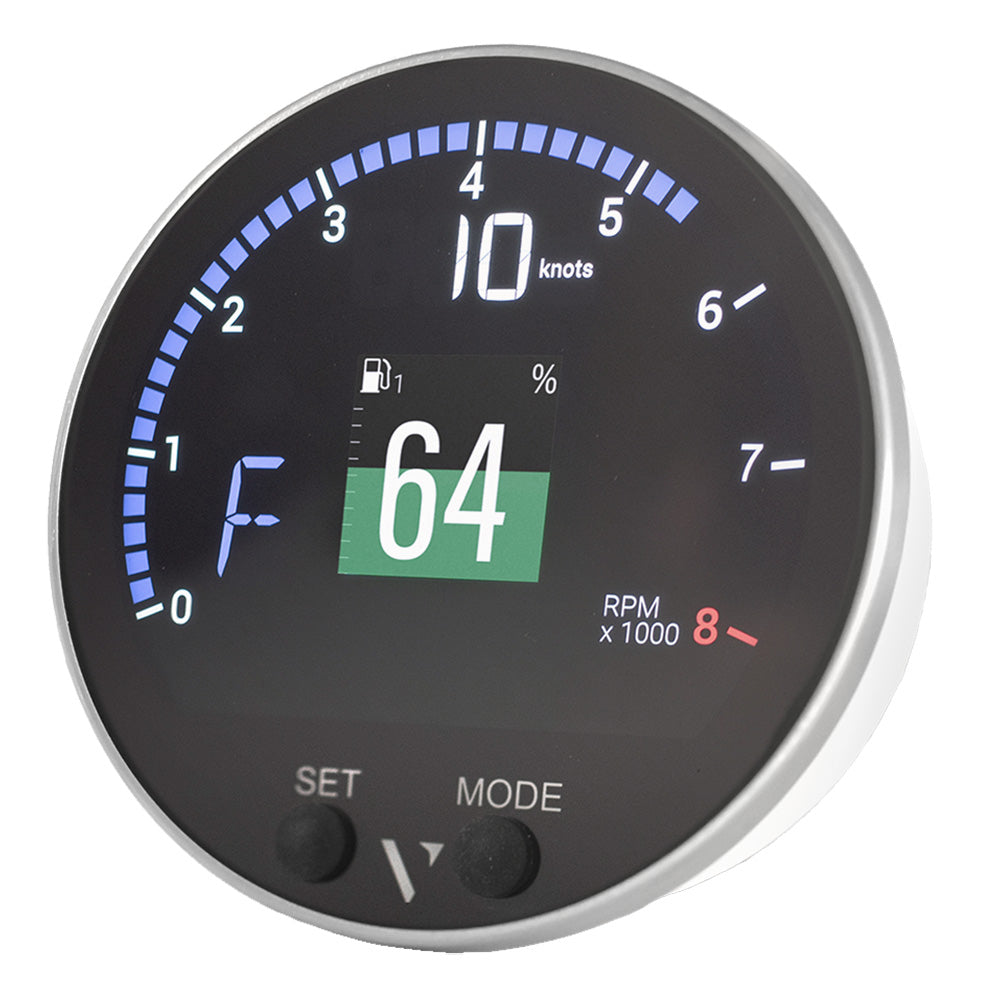

Veratron VMH-35 PWM Display for Suzuki with Sumitomo Connectors – B00204101

Engine and vessel data in one compact display

The Veratron VMH-35 PWM Display for Suzuki brings engine, battery, tank, GPS, and vessel information to a compact multifunction gauge. A dedicated harness with mating Suzuki Sumitomo connectors supports plug-and-play installation on compatible setups, while configurable analog and alarm inputs accommodate engine sensors.

Readable at the helm

The sunlight-readable hybrid display features an optically bonded mineral-glass front, black-glass styling, and a brushed stainless steel bezel. IPX7 protection at both the front and rear suits exposed consoles, and the gauge fits a standard 85mm (3-3/8-inch) panel cutout.

Connect your onboard information

• Embedded NMEA 2000 gateway: Converts sensor inputs such as fuel, trim, and tachometer data for sharing with compatible network devices, including chartplotters, without an additional external converter.
• Analog inputs: Support refits with older engines and configurable engine sensors and alarms.
• Built-in GNSS receiver: Adds GPS speed, compass, and position information to engine data.
• Multifunction monitoring: Supports 30 types of data, including engine information, EcoMode pop-up screen, tank levels, battery status, GPS, and vessel information.
• RPM monitoring: Up to 8,000 RPM with a programmable overspeed alarm.
• Low power draw: Listed at 170 mA even at full brightness.
• Configuration: On-screen menu and soft-touch buttons.
• Battery monitoring: Compatible with an intelligent battery sensor (IBS).

Compatibility

Designed for compatibility with multiple Suzuki engines. Verify your engine and connector configuration before ordering.

Manufacturer notice: This product is designed to be compatible with Suzuki engines. However, it is not manufactured, endorsed, or approved by Suzuki Motor Corporation. Veratron AG is an independent company with no affiliation or relationship with Suzuki Motor Corporation.

Specifications

• Brand: Veratron
• Series: VMH-35
• Part number: B00204101
• Gauge type: Multifunction PWM display
• Connectors: Sumitomo
• Panel cutout: 85mm (3-3/8 inches)
• Input voltage: 12V
• Protection: IPX7, front and rear
• NMEA 2000 converter: Integrated
• Box set: No
• Box dimensions: 4 inches H × 6 inches W × 6 inches L
• Listed shipping weight: 0.75 lb
• UPC: 7640190290831

Documentation

Quick Guide (PDF)
Owner's Manual (PDF)
