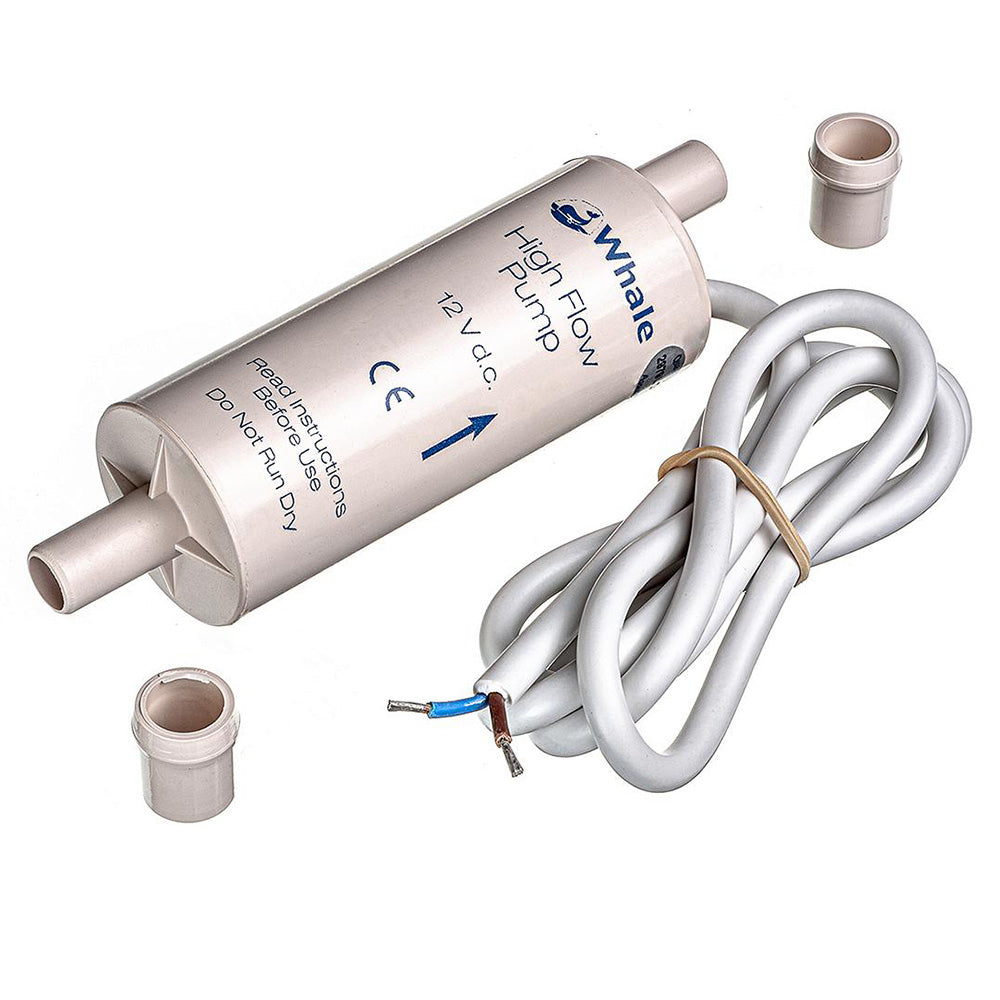

Whale Inline Booster High-Flow Electric Galley Pump - 12V

Boost Your Water System Flow Rate — Inline, Compact, and Quiet

The Whale Inline Booster Galley Pump drops inline into your existing water system to significantly increase flow rate. Its narrow profile is designed to fit directly into the water tank, making it an inexpensive upgrade for manual water systems. Compatible with pressure switch and microswitch systems, and also suitable for pumping diesel.

Key Features

• Fits inline to boost flow rate in existing water systems
• Narrow design — drops directly into the water tank
• Compact, lightweight, and quiet operation
• Compatible with pressure switch and microswitch systems
• Inexpensive upgrade from a manual water system
• Also suitable for pumping diesel
• Low power consumption
• IP67 rated — fully protected against water immersion

Performance

• 0 ft. head: 4.0 US gal/min at 3.8A
• 3 ft. head: 3.9 US gal/min at 3.7A
• 10 ft. head: 3.4 US gal/min at 3.5A

Specifications

• Voltage: 12V DC
• Fuse: 5A
• Hose Connection: 10mm (3/8") or 13mm (1/2") flexible hose
• Cable Length: 1m (3 ft.)
• Length: 129mm (5-1/16")
• Width: 36mm (1-7/16")
• Weight: 0.3 lbs (0.15 kg)
• Filter Included: No

Materials

• Pump Body: ABS
• Seal: Nitrile
• Strainer: Polyurethane
• Impeller: PBT
• Cable: PVC

Certifications & Warranty

• 1-Year Warranty
• CE Certified
• IP67
• ISO 8846 | ISO 10133 | ABYC H-23

UPC: 766478942180
