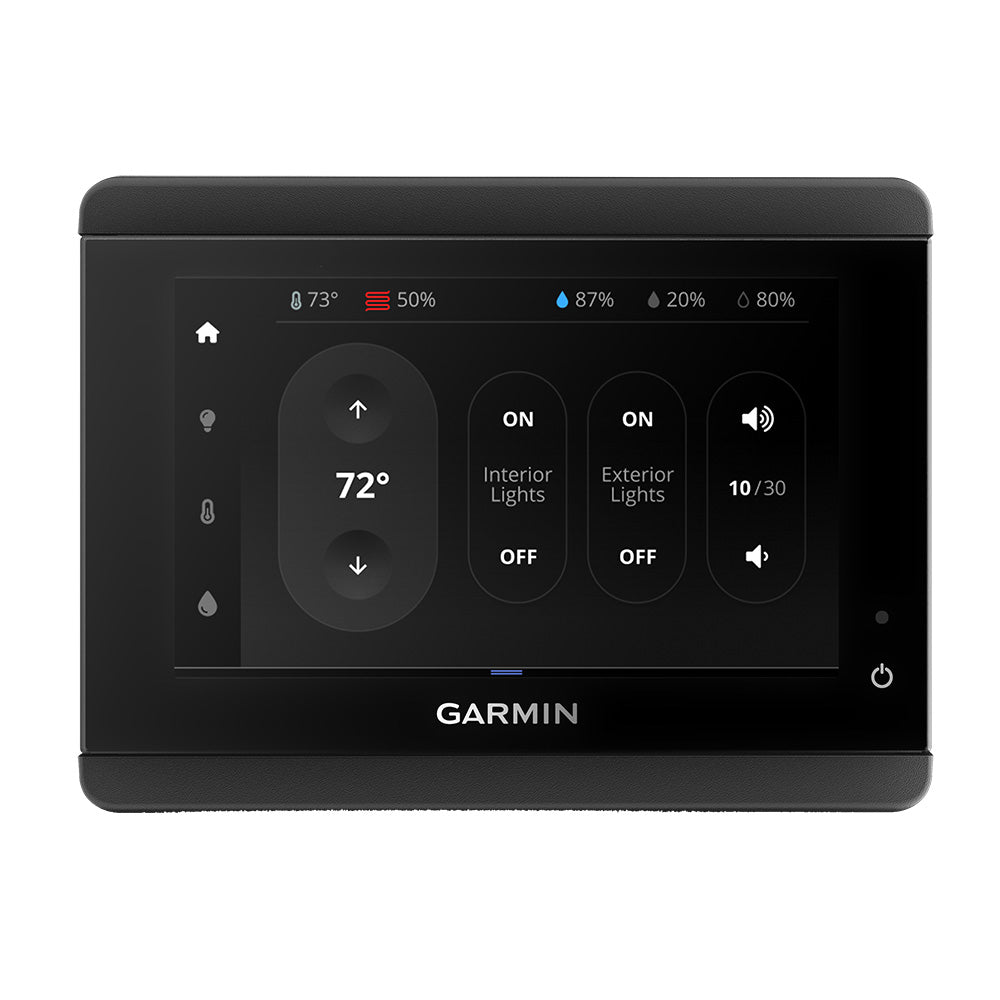

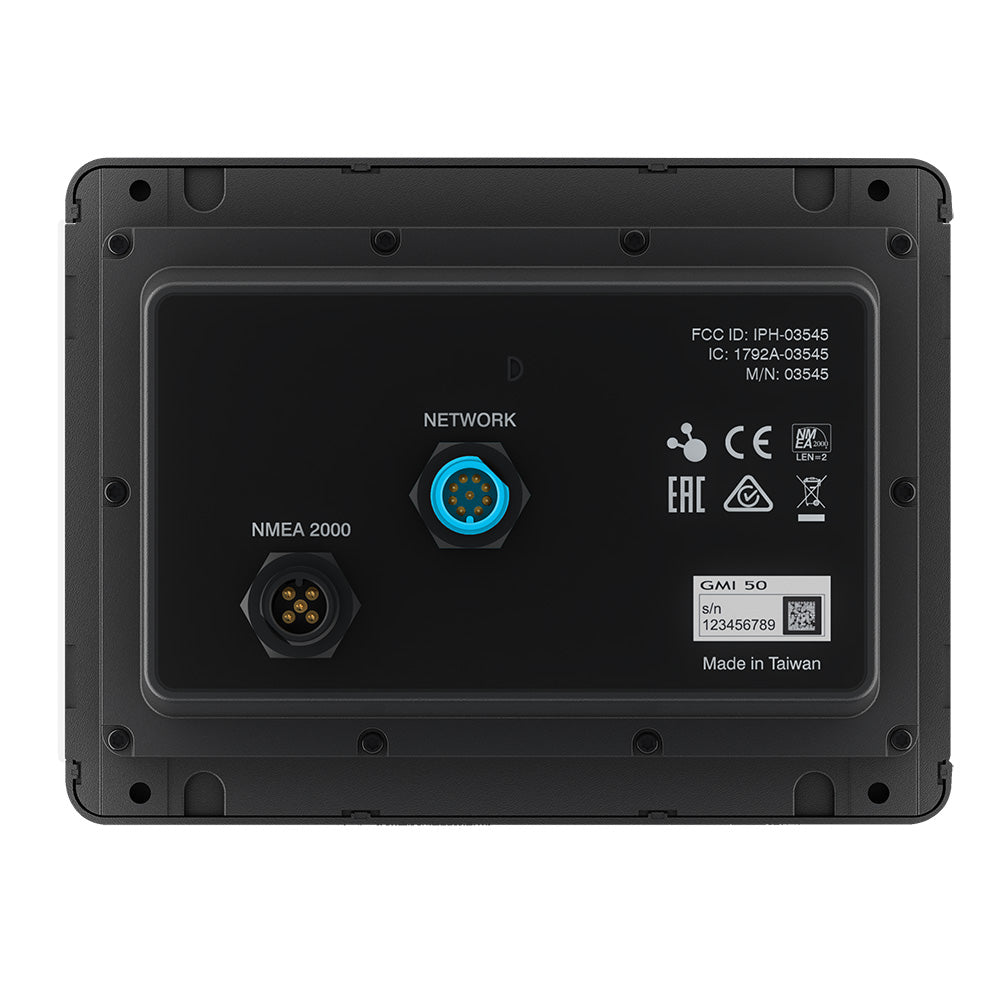

Garmin TD 50 5" Touchscreen Display (010-02139-10)

Garmin TD 50 5-inch Touchscreen Display

Add convenient access to your boat's systems with the Garmin TD 50. This compact, 5-inch touchscreen provides supplementary control, digital switching, and data monitoring at the helm or below deck. Connect to compatible systems, sensors, and media to view engine data and adjust onboard equipment from a suitable mounting location.

Connected Control

The graphical touchscreen interface gives you access to compatible lighting, climate control, entertainment, security sensors, autopilots, and other electrical components. The TD 50 integrates with NMEA 2000, third-party OneHelm systems, EmpirBus, and the Garmin Marine Network, with plug-and-play network installation.

Compact Marine Design

Edge-to-edge glass styling matches GPSMAP series chartplotters. A slim profile and flat- or flush-mounting options make the TD 50 suitable for auxiliary access throughout the vessel. Its IPX7 water rating supports use in harsh marine environments, while the bright LCD offers daylight visibility, adjustable backlighting, and a wide viewing angle.

Specifications:

• Display: 5-inch touchscreen
• Model: 010-02139-10
• Dimensions without sun cover (H x W x D), as supplied: 4.1 x 4.5 x 2.0 inches / 10.5 x 14.0 x 5.1 cm
• Dimensions with sun cover (H x W x D): 4.5 x 5.7 x 2.2 inches / 11.3 x 14.4 x 5.6 cm
• Weight without sun cover: 11.6 oz (328 g)
• Weight with sun cover: 13.2 oz (375 g)
• Temperature range: 5°F to 131°F (-15°C to 55°C)
• Compass-safe distance: 7.9 inches (20 cm)
• Case: Fully gasketed polycarbonate
• Lens: Glass with anti-glare and anti-fingerprint finish
• Water rating: IPX7
• Brightness: 1200 cd/m² (nits)
• Maximum power usage: 5.9W
• NMEA 2000 input voltage: 9–16 VDC
• NMEA 2000 LEN at 9 VDC: 13 (650 mA)

Installation note: The supplied width measurements without the sun cover differ between inches and centimeters. Confirm the dimensions with Garmin before planning a mounting cutout.
