Humminbird AS-ETH-5PGL 5 Port Ethernet Switch [411850-1]

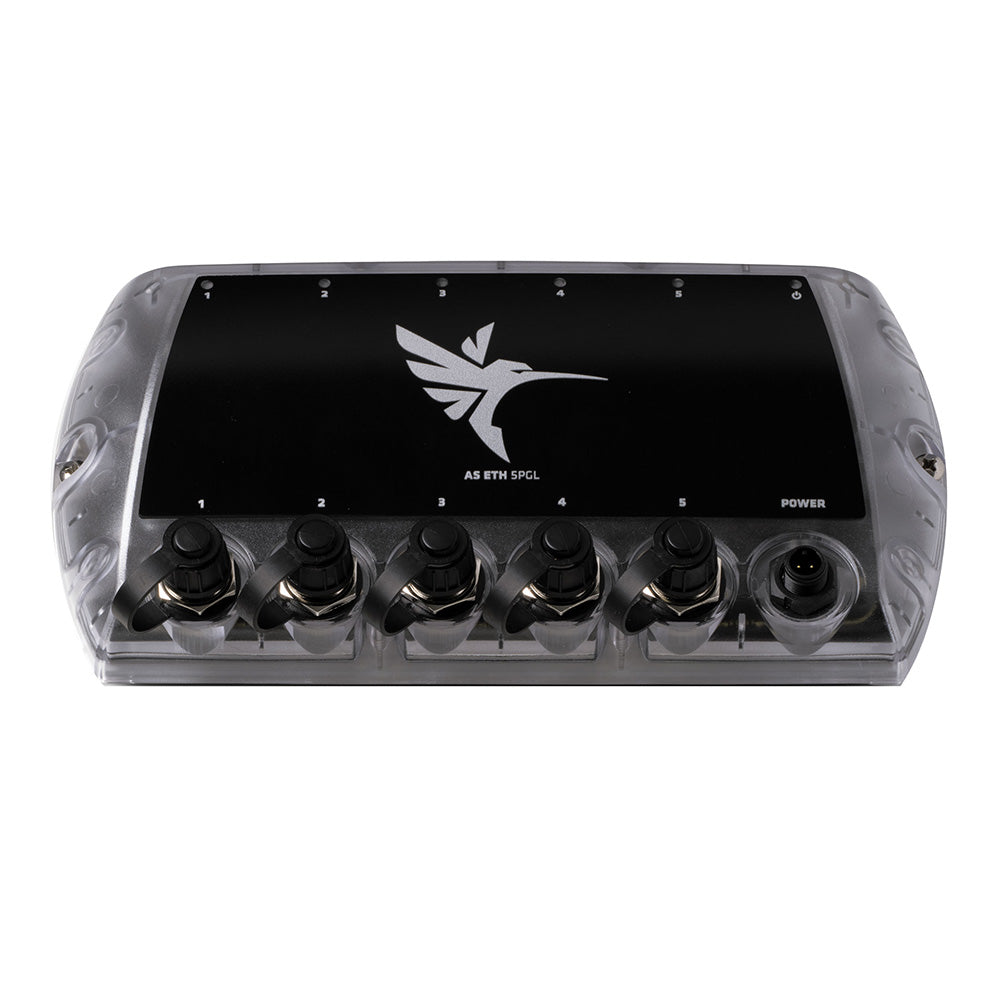

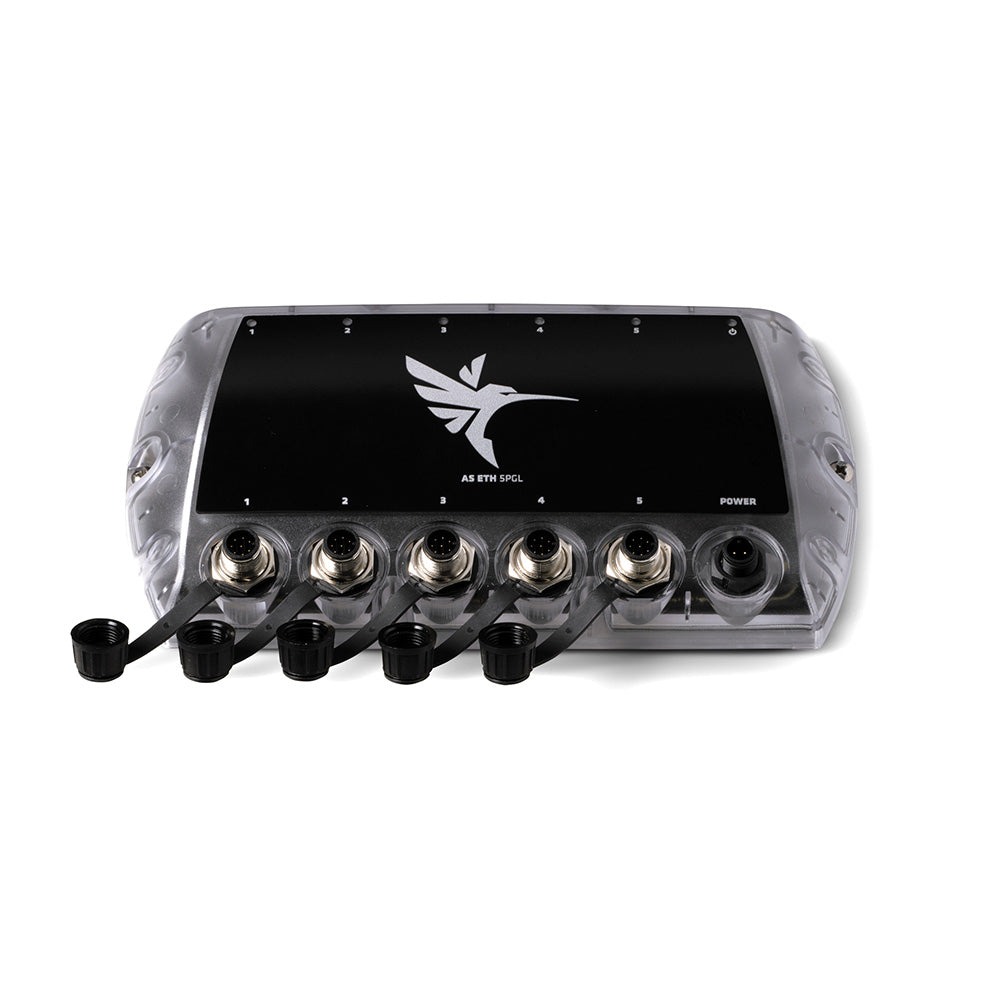

The Humminbird AS-ETH-5PGL 5-Port Ethernet Switch connects up to five compatible Humminbird fish finders and Ethernet devices for network data sharing. Link additional switches, sold separately, to expand the network to as many as 20 devices.

Compatibility and connection requirements

• Compatible fish finders: All XPLORE, APEX, SOLIX, HELIX G4N, and HELIX G3N models.
• Additional Ethernet cables are required to connect devices to the switch.
• Compatible HELIX models also require AS EC QDE connectors.

Status lights

• Amber power light: Connected to power.
• Connection light solid: Connected.
• Connection light flashing: Data transfer in progress.
• No connection light: No connection.
• Amber connection light devices: XPLORE, HELIX G4N and G3N, AS ETH NMEA2K, Minn Kota trolling motor, and radar.
• Green connection light devices: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, and AS ETH 5PGL.

In the box

• Ethernet switch

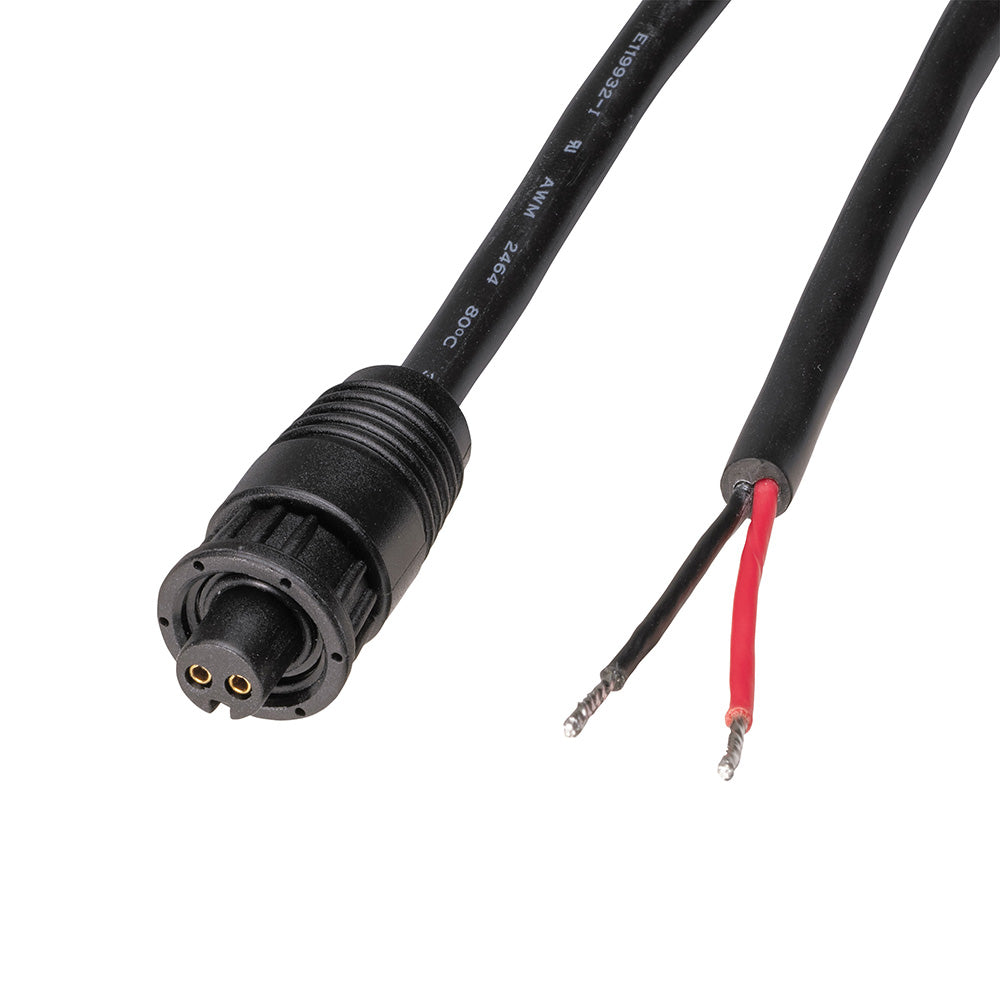

• Power cable
• Mounting hardware

Part number: 411850-1
Warranty: One-year limited warranty.
