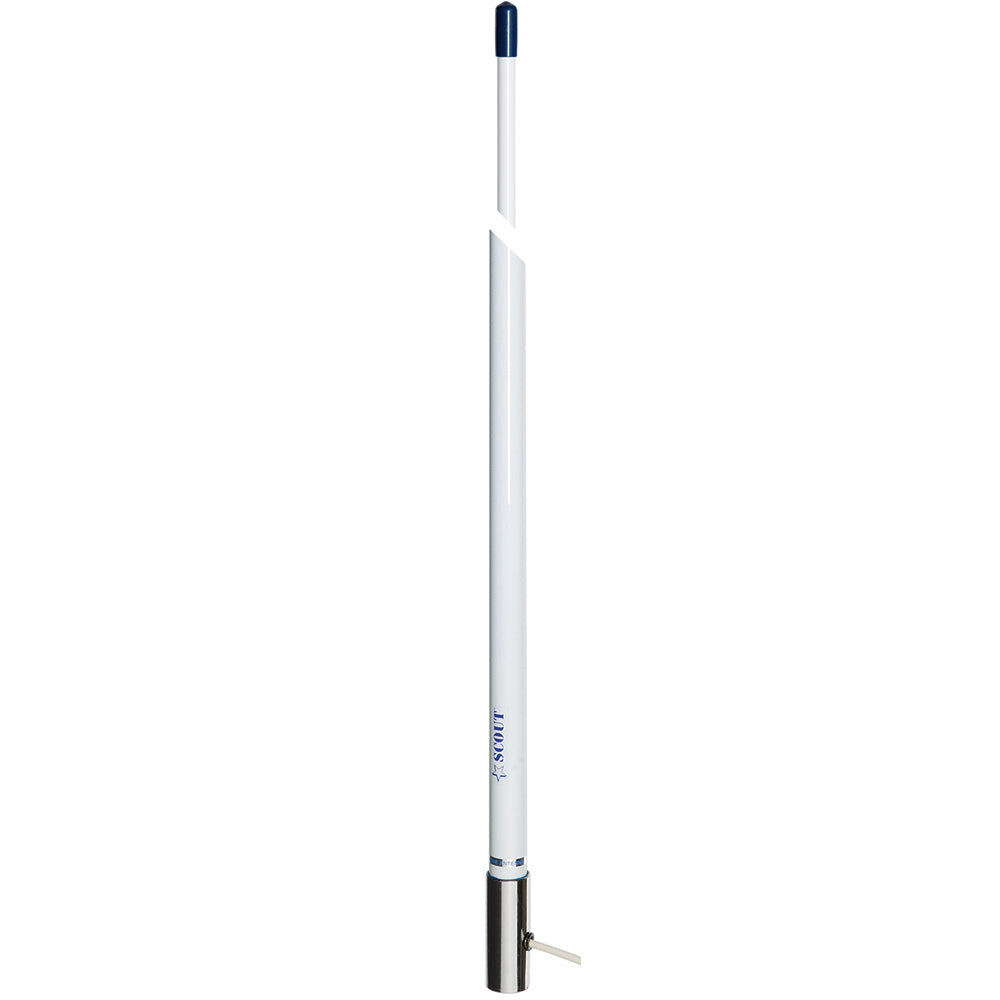

Scout 8' White VHF Antenna 6dB Stainless Steel Ferrule w/5M RG-58 Coax Includes PL-259 KS-42 [PF AN NVHF00007T]

The Scout KS-42 is a white 8 ft (2.4 m) marine VHF antenna with 6 dB gain, suggested for medium and large boats. It includes 5 m of RG-58 CU MIL coaxial cable and one PL-259 connector for installation onboard.

Construction and mounting

The redesigned KS-42 uses a heavy-duty fiberglass whip with a 1.5 mm wall thickness, fully foam-injected using Scout's waterproof construction technique. The antenna is rated IP69 and mounts on a standard 1" × 14 thread.

Ferrule material needs verification: The product title identifies a stainless steel ferrule, while the supplied description specifies chrome brass. Confirm the material with the manufacturer before ordering if this is important to your installation.

Electrical specifications

• Frequency: 156–162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1.5:1
• Polarization: Vertical
• Gain: 6 dB
• Maximum power input: 50 W
• DC ground: Yes

Dimensions and contents

• Model: KS-42
• Manufacturer part number: PF AN NVHF00007T
• Color: White
• Whip material: Fiberglass
• Length: 2.4 m (8 ft)
• Antenna weight: 0.86 kg
• Coaxial cable: 5 m (listed as 16 ft), RG-58 CU MIL
• Connector included: One PL-259
• Mounting thread: 1" × 14
